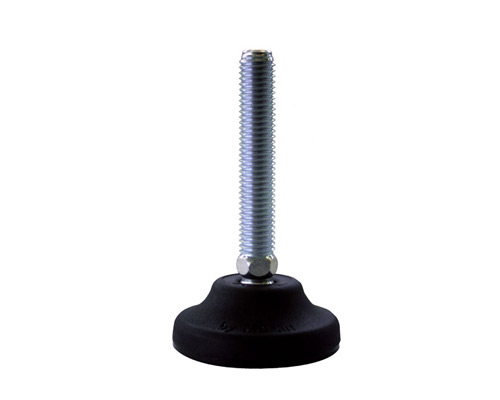

Levelling foot PA, Ø 65 mm, M20 x 100 mm Steel, NBR
Discover our high-performance Levelling Foot, featuring a robust polyamide base and galvanized steel spindle, designed for static loads up to 15,000 N. Its articulated screw ensures precise leveling at a 30° angle, while the anti-slip NBR provides stability and durability. Perfect for engineering applications.
| Quantity | Price |
|---|---|
| From 1 |
€5.49*
|
| From 5 |
€5.26*
|
| From 15 |
€4.53*
|
| From 50 |
€4.29*
|
39 on stock, Refill time: 5 days
Product properties
| Footplate material: | Plastic |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 51-70 |
| Material spindle: | Steel |
| Ø spindle (mm): | 20 |
| Spindle length (mm): | 100 |
| Balancing angle: | 30° |
Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
