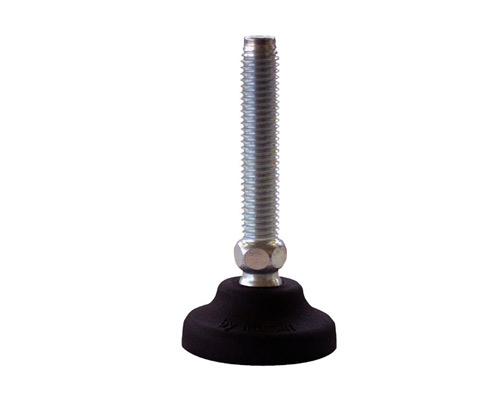

Levelling foot PA, Ø 40 mm, M12 x 125 mm Steel, NBR
Discover our robust Levelling Foot, featuring a 40 mm diameter and a durable M12 galvanized steel spindle. With an articulated screw for a 30° adjustment and a static load capacity of 10,000 N, it ensures stable support in various applications.
| Quantity | Price |
|---|---|
| From 1 |
€4.31*
|
| From 5 |
€4.12*
|
| From 15 |
€3.55*
|
| From 50 |
€3.37*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Plastic |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 31-40 |
| Material spindle: | Steel |
| Ø spindle (mm): | 12 |
| Spindle length (mm): | 125 |
| Balancing angle: | 30° |

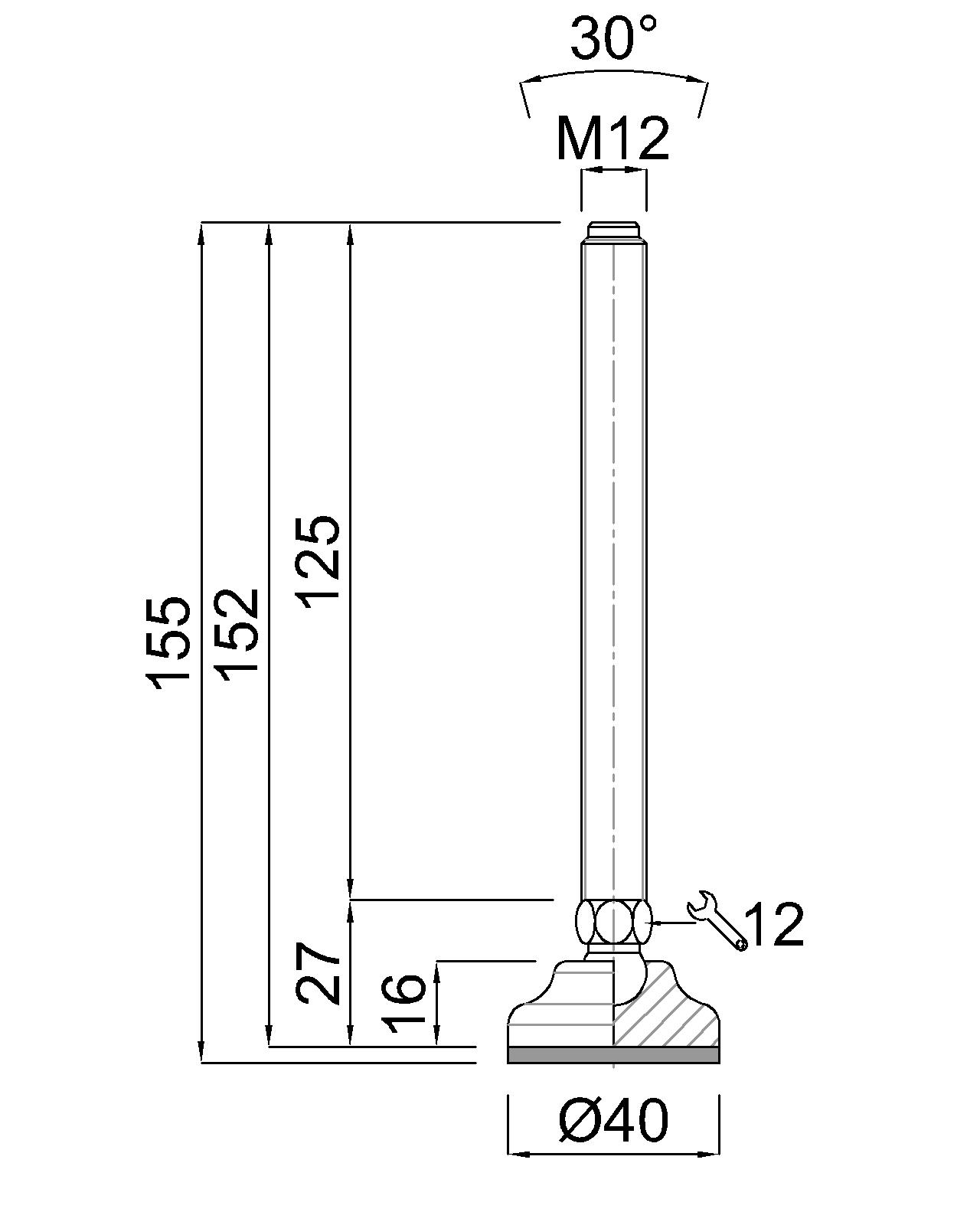

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
