Levelling foot PA, Ø 83 mm, M10 x 50 mm Steel, Drills

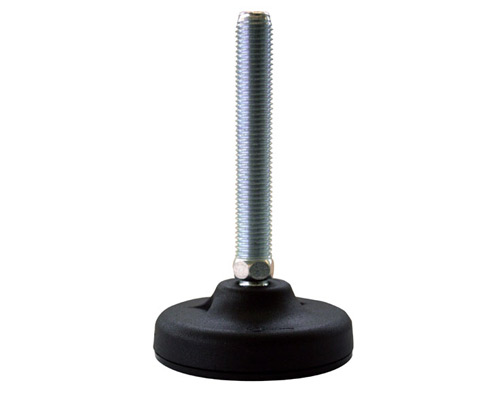

Introducing our robust Levelling Foot made of durable Polyamide, featuring a Ø 83 mm base and M10 x 50 mm galvanized steel spindle. Designed for versatile applications, it supports static loads up to 15,000 N, with an articulated screw angle of 30° for precise adjustments. Ideal for engineers and manufacturers seeking reliable leveling solutions.
| Quantity | Price |
|---|---|
| From 1 |
€4.29*
|
| From 5 |
€4.10*
|
| From 15 |
€3.53*
|
| From 50 |
€3.35*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Plastic |
| Anti-slip: | No |
| Ø range base plate (mm): | 71-90 |
| Ground fastening: | 2 mounting holes |
| Vibration damping: | no |
| Material spindle: | Steel |
| Ø spindle (mm): | 10 |
| Spindle length (mm): | 50 |
| Balancing angle: | 30° |
| Hygiene: | No |

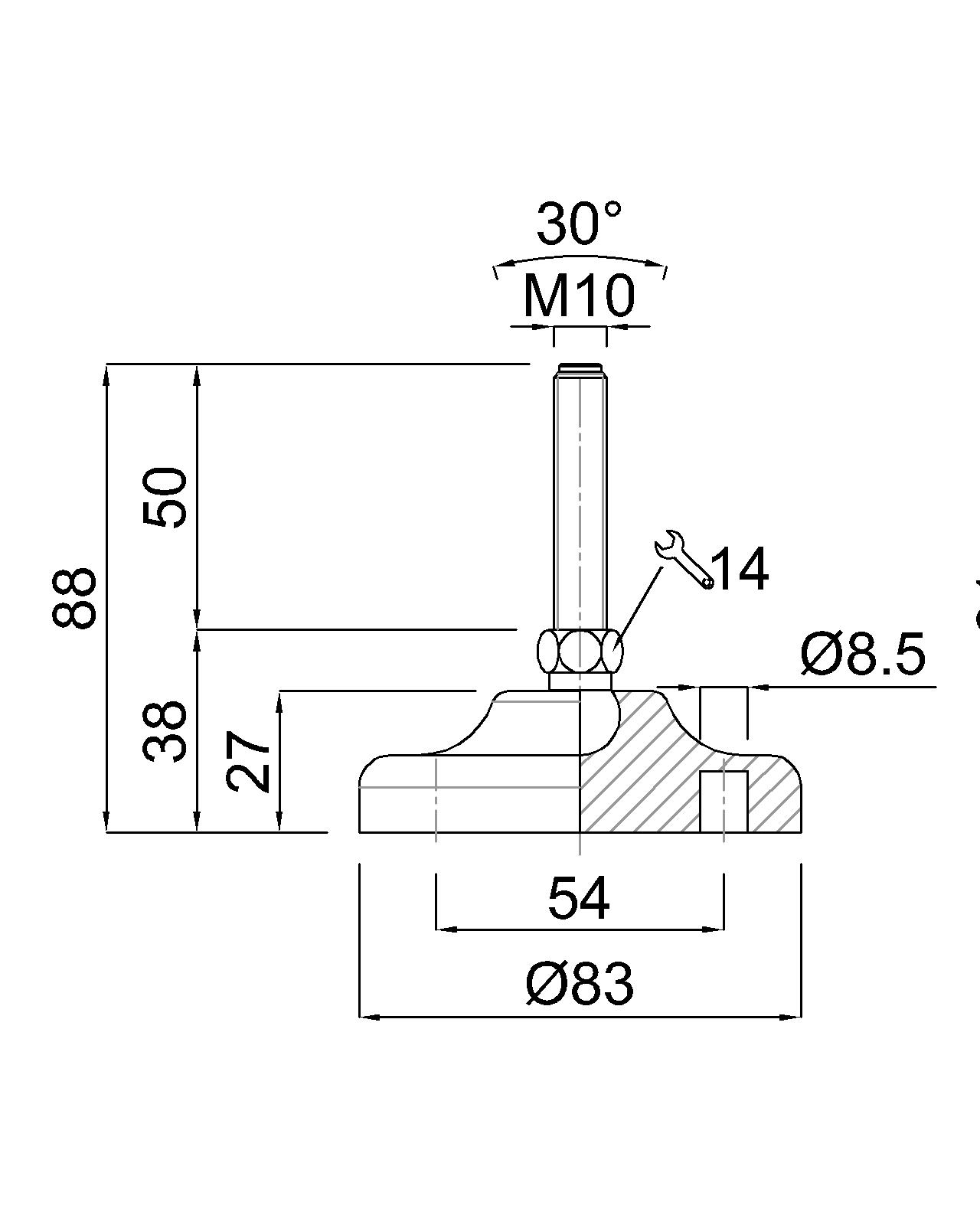

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
