Levelling foot PA, Ø 123 mm, M24 x 175 mm Steel, Drills, NBR

EAN 4061408039067

Type 45810419

Optimize stability with our Levelling Foot, featuring a 123 mm polyamide plate and a robust M24 galvanized steel spindle, supporting static loads up to 35,000 N.

High-quality polyamide leveling foot with a diameter of 123 mm, ensuring durability and resistance to wear.
Constructed with galvanized steel spindle measuring M24 x 175 mm, providing robust support and stability.
Designed for a static load capacity of 35,000 N, suitable for heavy-duty applications.
Features an articulated screw capable of accommodating a compensation angle of 30° for enhanced versatility.
Equipped with two bore holes of Ø 12.5 mm for secure floor mounting and easy installation.

Quantity	Price
From 1	€11.30*
From 5	€10.82*
From 15	€9.32*
From 50	€8.83*

*Prices excl. VAT plus shipping costs

Currently sold out, Refill time: 5 days

€11.30* / piece

Our payment methods:

Accessories

Plastic levelling foot height extension Ø 123, with anti-slip rubber pad

Type No.: 458PROLD123/G

From €6.93*

Product properties

Footplate material:	Plastic
Anti-slip:	NBR black
Ø range base plate (mm):	111-130
Ground fastening:	2 mounting holes
Vibration damping:	No
Material spindle:	Steel
Ø spindle (mm):	24
Spindle length (mm):	175
Balancing angle:	30°
Hygiene:	No

Product description

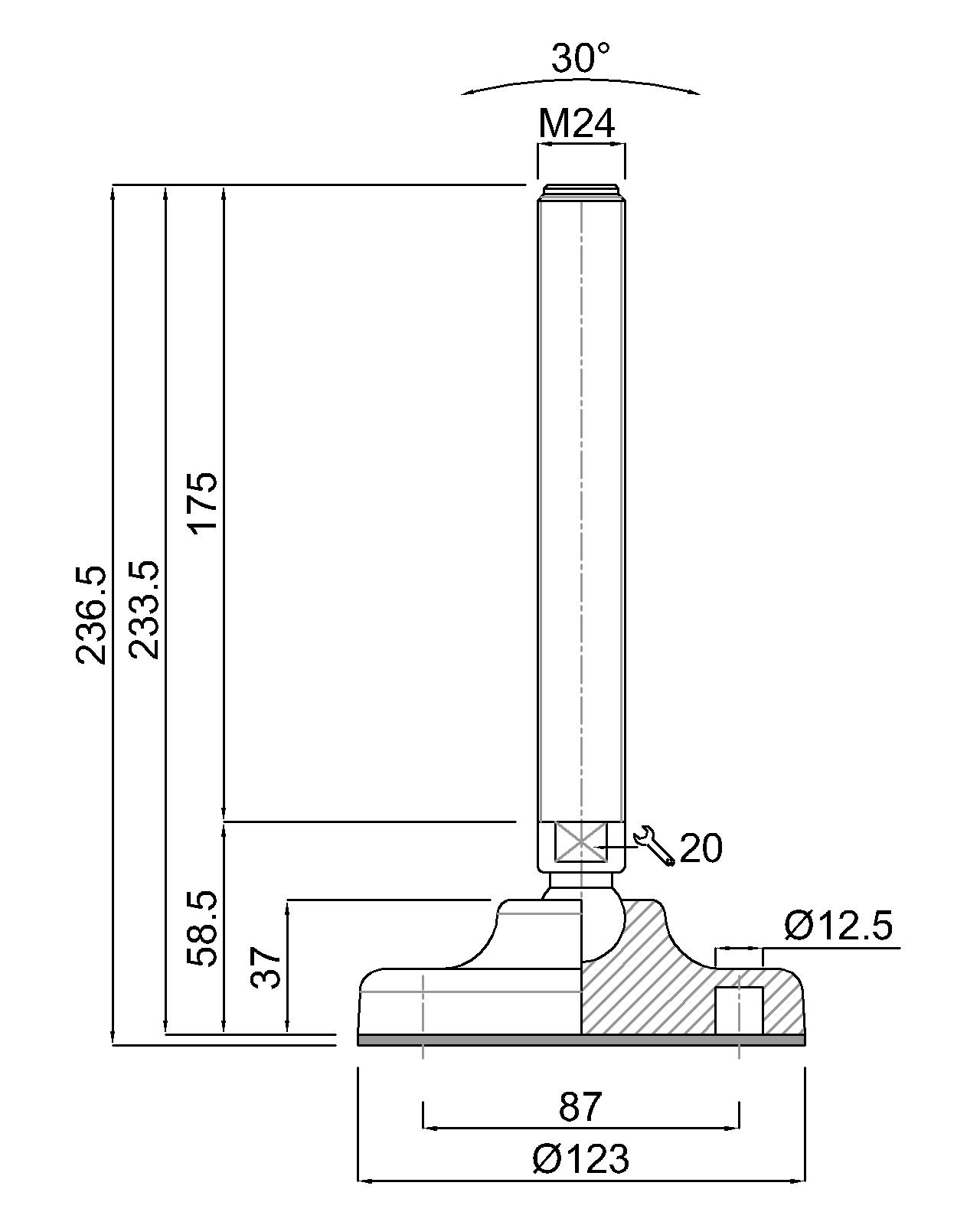

Levelling foot Polyamide, Ø 123 mm, M24 x 175 mm, Galvanized steel, Total height 236 mm, Articulated screw 30°, Bore holes Ø 12,5 mm, Antislip NBR black, Static load 35.000 N

Custom solutions

We develop customised components exactly as you need them for your application.

Learn more about custom solutions Contact us

Technical documentation

In this section you will find all relevant documents & links for your documentation::

Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
