Levelling foot PA, Ø 123 mm, M24 x 100 mm Steel, Drills, NBR

EAN 4061408039029

Type 45810413

Optimize your machinery setup with our robust Levelling Foot, featuring a 123 mm diameter Polyamide base and a durable galvanized steel spindle. Supports static loads up to 35,000 N.

High strength polyamide base with a diameter of 123 mm for enhanced durability and stability
M24 threaded steel spindle, 100 mm in length, providing robust connection and support
Capable of supporting static loads up to 35,000 N, ensuring reliability in heavy-duty applications
Features NBR black anti-slip material to prevent movement and enhance grip on varied surfaces
Articulated screw design with a 30° adjustment angle, allowing for versatile leveling capabilities

Quantity	Price
From 1	€9.61*
From 5	€9.20*
From 15	€7.92*
From 50	€7.51*

*Prices excl. VAT plus shipping costs

Currently sold out, Refill time: 5 days

€9.61* / piece

Our payment methods:

Accessories

Plastic levelling foot height extension Ø 123, with anti-slip rubber pad

Type No.: 458PROLD123/G

From €6.93*

Product properties

Footplate material:	Plastic
Anti-slip:	NBR black
Ø range base plate (mm):	111-130
Ground fastening:	2 mounting holes
Material spindle:	Steel
Ø spindle (mm):	24
Spindle length (mm):	100
Balancing angle:	30°

Product description

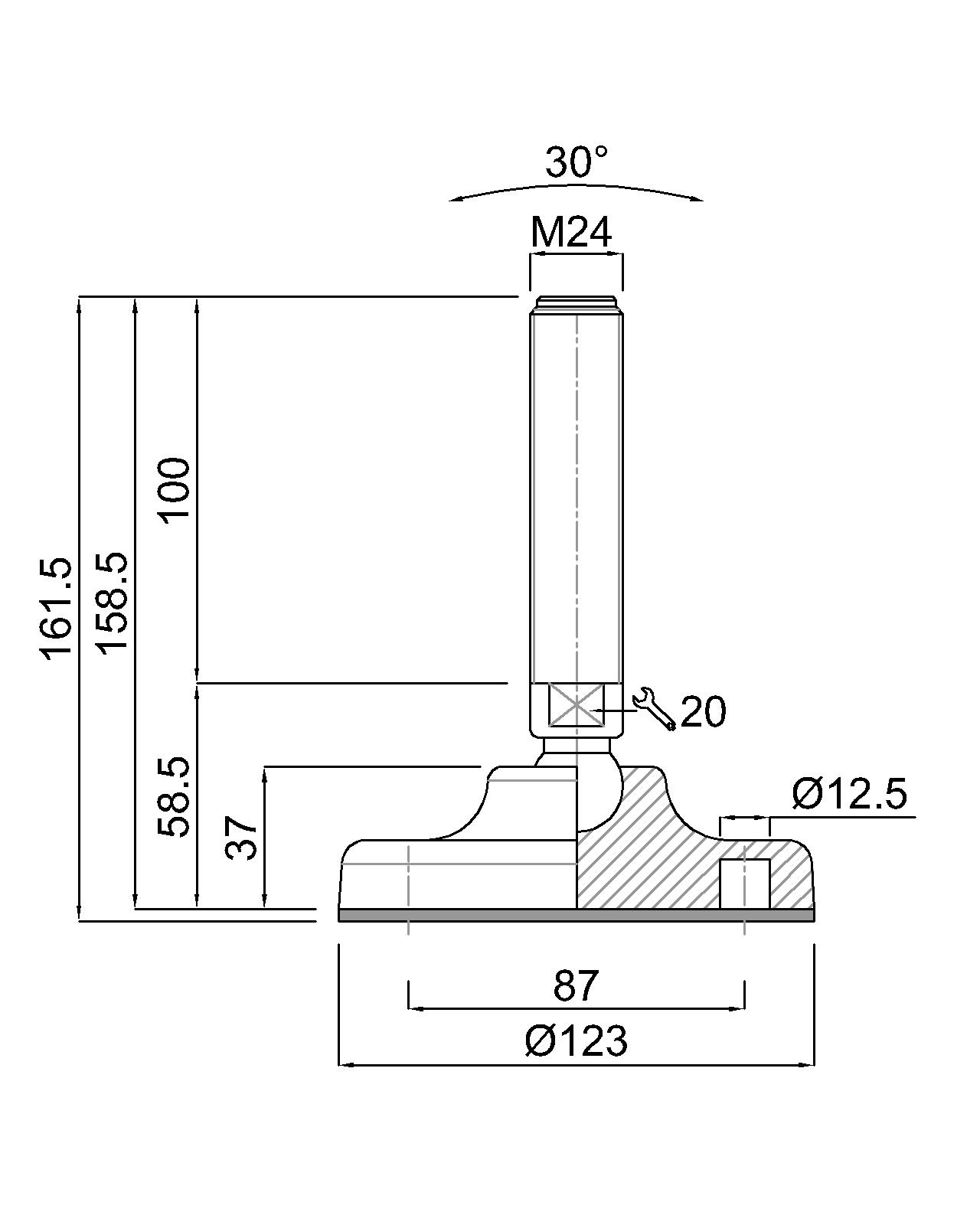

Levelling foot Polyamide, Ø 123 mm, M24 x 100 mm, Galvanized steel, Total height 161 mm, Articulated screw 30°, Bore holes Ø 12,5 mm, Antislip NBR black, Static load 35.000 N

Custom solutions

We develop customised components exactly as you need them for your application.

Learn more about custom solutions Contact us

Technical documentation

In this section you will find all relevant documents & links for your documentation::

Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
