Levelling foot PA, Ø 123 mm, M16 x 225 mm Steel, Drills

EAN 4061408038770

Type 45810388

Elevate your machinery precision with our Polyamide Levelling Foot, featuring a 123 mm diameter and M16 x 225 mm galvanized steel spindle. Designed for static loads up to 35,000 N, it ensures stability with a 30° articulated screw and dual bore holes for secure mounting.

High load capacity of 35,000 N ensuring stability for various engineering applications
Galvanized steel spindle ensures durability and resistance to corrosion
Articulated screw design allows for a 30° tilt, accommodating uneven surfaces
Versatile mounting options with two bore holes (Ø 12.5 mm) for secure attachment
Polyamide footplate (Ø 123 mm) provides excellent chemical resistance and strength

Quantity	Price
From 1	€8.82*
From 5	€8.44*
From 15	€7.27*
From 50	€6.89*

*Prices excl. VAT plus shipping costs

Currently sold out, Refill time: 5 days

€8.82* / piece

Our payment methods:

Accessories

Plastic levelling foot height extension Ø 123

Type No.: 458PROLD123

From €5.03*

Product properties

Footplate material:	Plastic
Anti-slip:	No
Ø range base plate (mm):	111-130
Ground fastening:	2 mounting holes
Vibration damping:	no
Material spindle:	Steel
Ø spindle (mm):	16
Spindle length (mm):	225
Balancing angle:	30°
Hygiene:	No

Product description

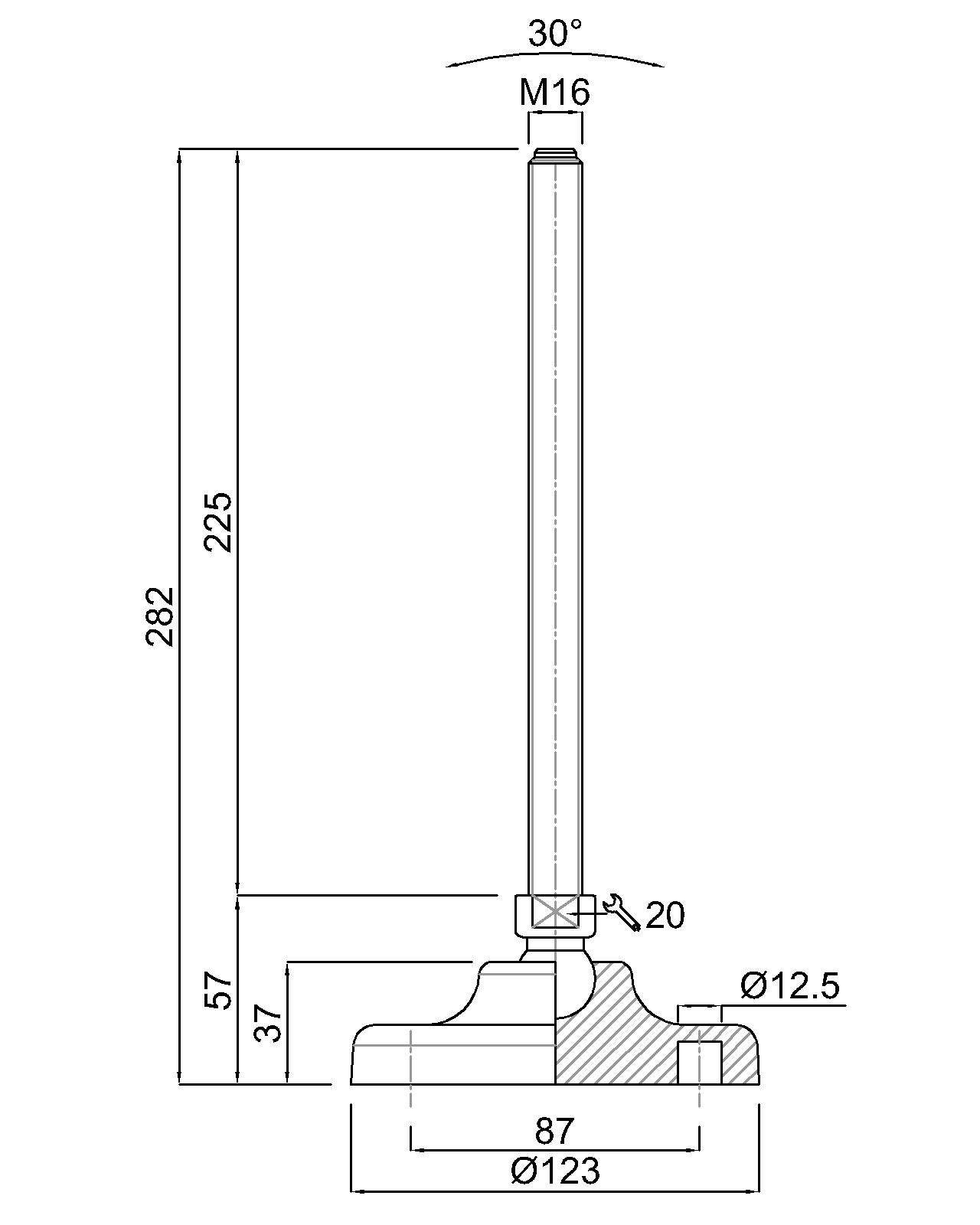

Levelling foot Polyamide, Ø 123 mm, M16 x 225 mm, Galvanized steel, Total height 285 mm, Articulated screw 30°, Bore holes Ø 12,5 mm, Static load 35.000 N

Custom solutions

We develop customised components exactly as you need them for your application.

Learn more about custom solutions Contact us

Technical documentation

In this section you will find all relevant documents & links for your documentation::

Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
