Levelling foot PA, Ø 123 mm, M16 x 200 mm Steel, Drills

EAN 4061408038619

Type 45810386

Optimize your setup with our durable levelling foot, featuring a 123 mm diameter polyamide base and a robust M16 steel spindle. Supports loads up to 35,000 N with precision stability.

Robust polyamide base with a diameter of 123 mm, providing durable support for various applications
M16 x 200 mm galvanized steel spindle, ensuring excellent corrosion resistance and strength under load
Articulated screw design allows for a compensation angle of up to 30°, accommodating uneven surfaces easily
Capable of supporting a static load of 35,000 N, making it ideal for heavy machinery and industrial use
Integrated bore holes with a diameter of 12.5 mm for secure mounting, enhancing stability and safety during operation

Quantity	Price
From 1	€8.14*
From 5	€7.79*
From 15	€6.71*
From 50	€6.37*

*Prices excl. VAT plus shipping costs

Currently sold out, Refill time: 5 days

€8.14* / piece

Our payment methods:

Accessories

Plastic levelling foot height extension Ø 123

Type No.: 458PROLD123

From €5.03*

Product properties

Footplate material:	Plastic
Anti-slip:	No
Ø range base plate (mm):	111-130
Ground fastening:	2 mounting holes
Vibration damping:	no
Material spindle:	Steel
Ø spindle (mm):	16
Spindle length (mm):	200
Balancing angle:	30°
Hygiene:	No

Product description

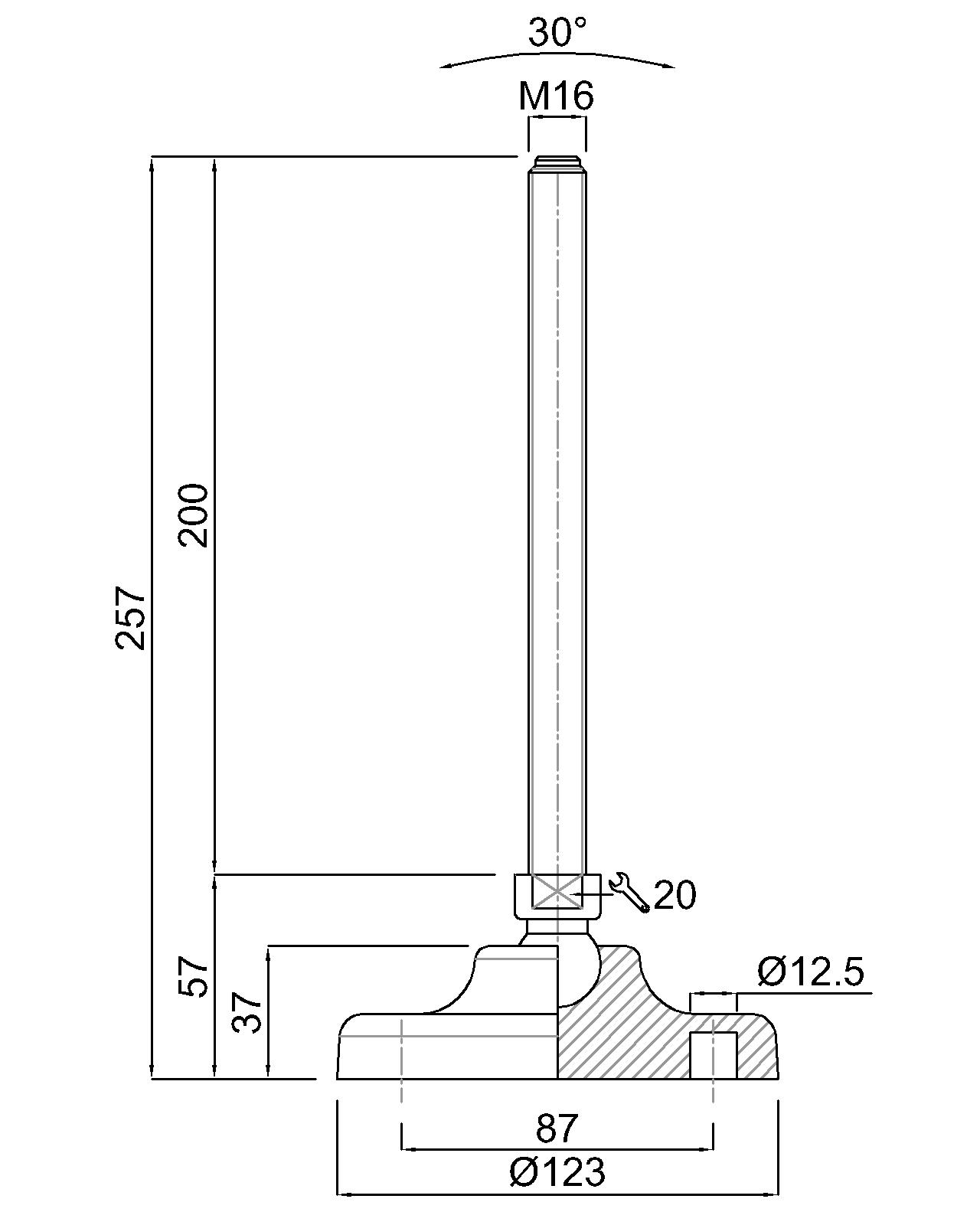

Levelling foot Polyamide, Ø 123 mm, M16 x 200 mm, Galvanized steel, Total height 257 mm, Articulated screw 30°, Bore holes Ø 12,5 mm, Static load 35.000 N

Custom solutions

We develop customised components exactly as you need them for your application.

Learn more about custom solutions Contact us

Technical documentation

In this section you will find all relevant documents & links for your documentation::

Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
