Levelling foot PA, Ø 103 mm, M20 x 250 mm Steel, Drills, NBR
Optimize your machinery setup with our durable Levelling Foot, featuring a robust steel spindle and a non-slip NBR base. Supports static loads up to 25,000 N, offering stability and precise alignment.
| Quantity | Price |
|---|---|
| From 1 |
€13.05*
|
| From 5 |
€12.49*
|
| From 15 |
€10.76*
|
| From 50 |
€10.20*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Plastic |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 91-110 |
| Ground fastening: | 2 mounting holes |
| Material spindle: | Steel |
| Ø spindle (mm): | 20 |
| Spindle length (mm): | 250 |
| Balancing angle: | 30° |

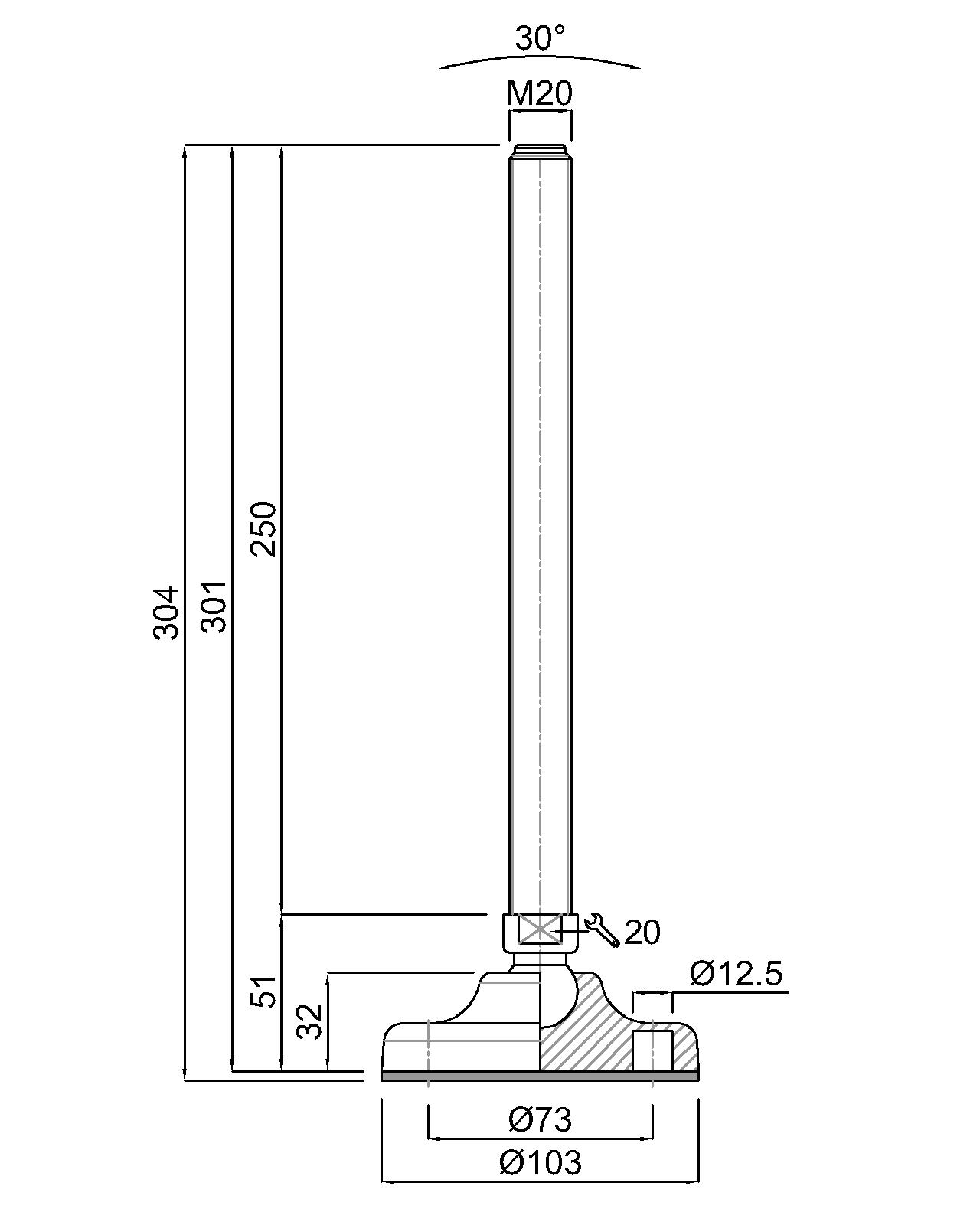

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
