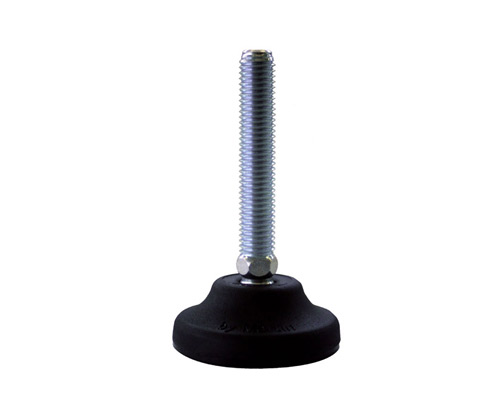

Levelling foot PA, Ø 65 mm, M14 x 75 mm Steel, NBR
Optimize your workspace with our durable 65 mm Polyamide Levelling Foot. Designed for static loads up to 15,000 N, it features an articulated screw for a versatile 30° adjustment, ensuring stability and safety in any application.
| Quantity | Price |
|---|---|
| From 1 |
€4.94*
|
| From 5 |
€4.73*
|
| From 15 |
€4.08*
|
| From 50 |
€3.87*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Plastic |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 51-70 |
| Material spindle: | Steel |
| Ø spindle (mm): | 14 |
| Spindle length (mm): | 75 |
| Balancing angle: | 30° |

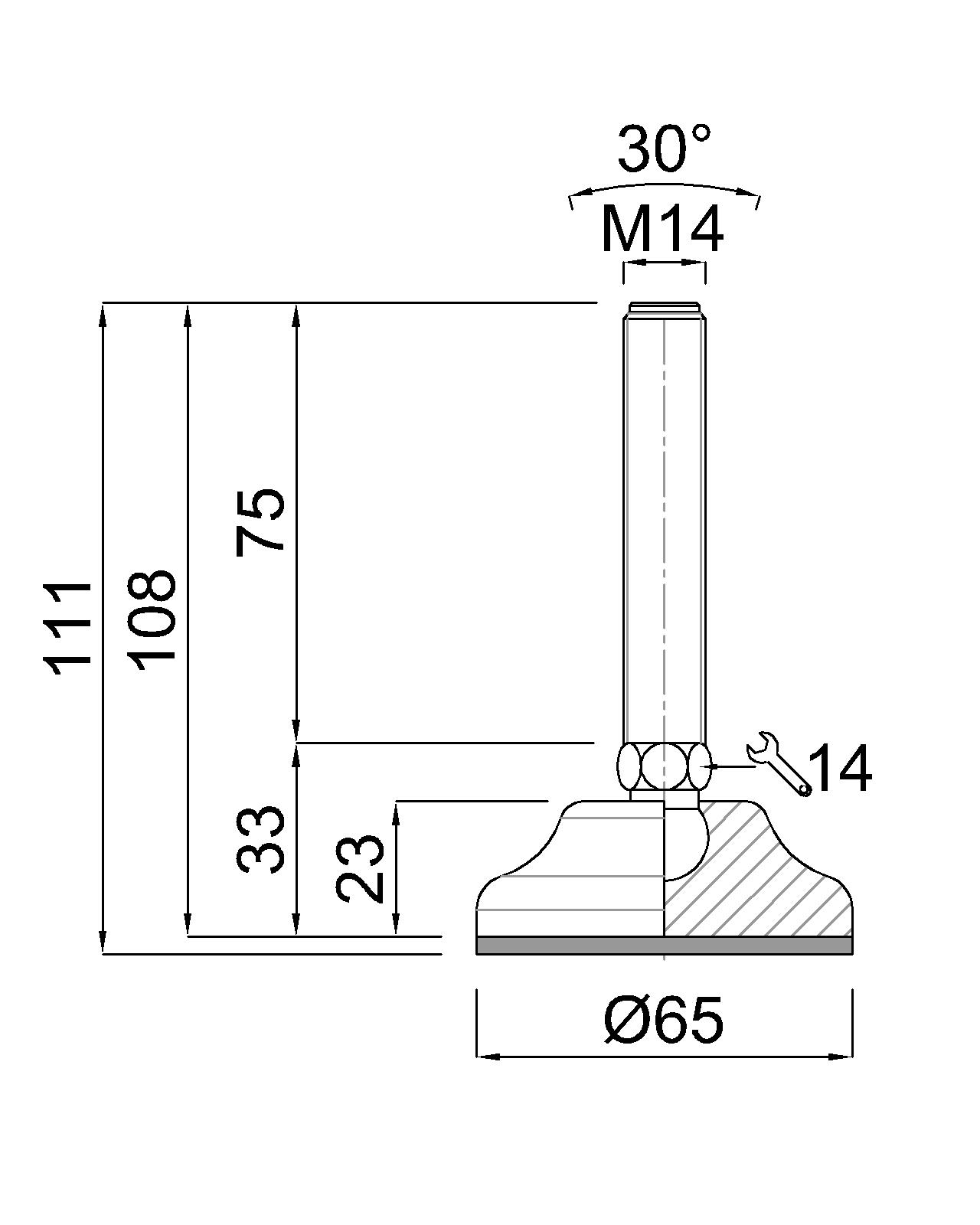

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
