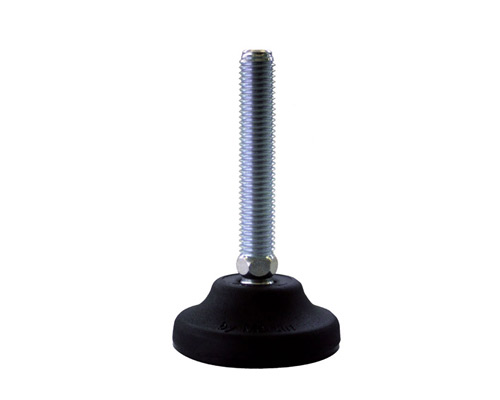

Levelling foot PA, Ø 65 mm, M12 x 125 mm Steel, NBR
Optimize your equipment stability with our PA Levelling Foot, featuring a 65 mm diameter and M12 x 125 mm galvanized steel spindle. With a static load capacity of 11,000 N and 30° articulation, it ensures reliable performance.
| Quantity | Price |
|---|---|
| From 1 |
€5.26*
|
| From 5 |
€5.04*
|
| From 15 |
€4.34*
|
| From 50 |
€4.12*
|
8 on stock, Refill time: 5 days
Product properties
| Footplate material: | Plastic |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 51-70 |
| Material spindle: | Steel |
| Ø spindle (mm): | 12 |
| Spindle length (mm): | 125 |
| Balancing angle: | 30° |

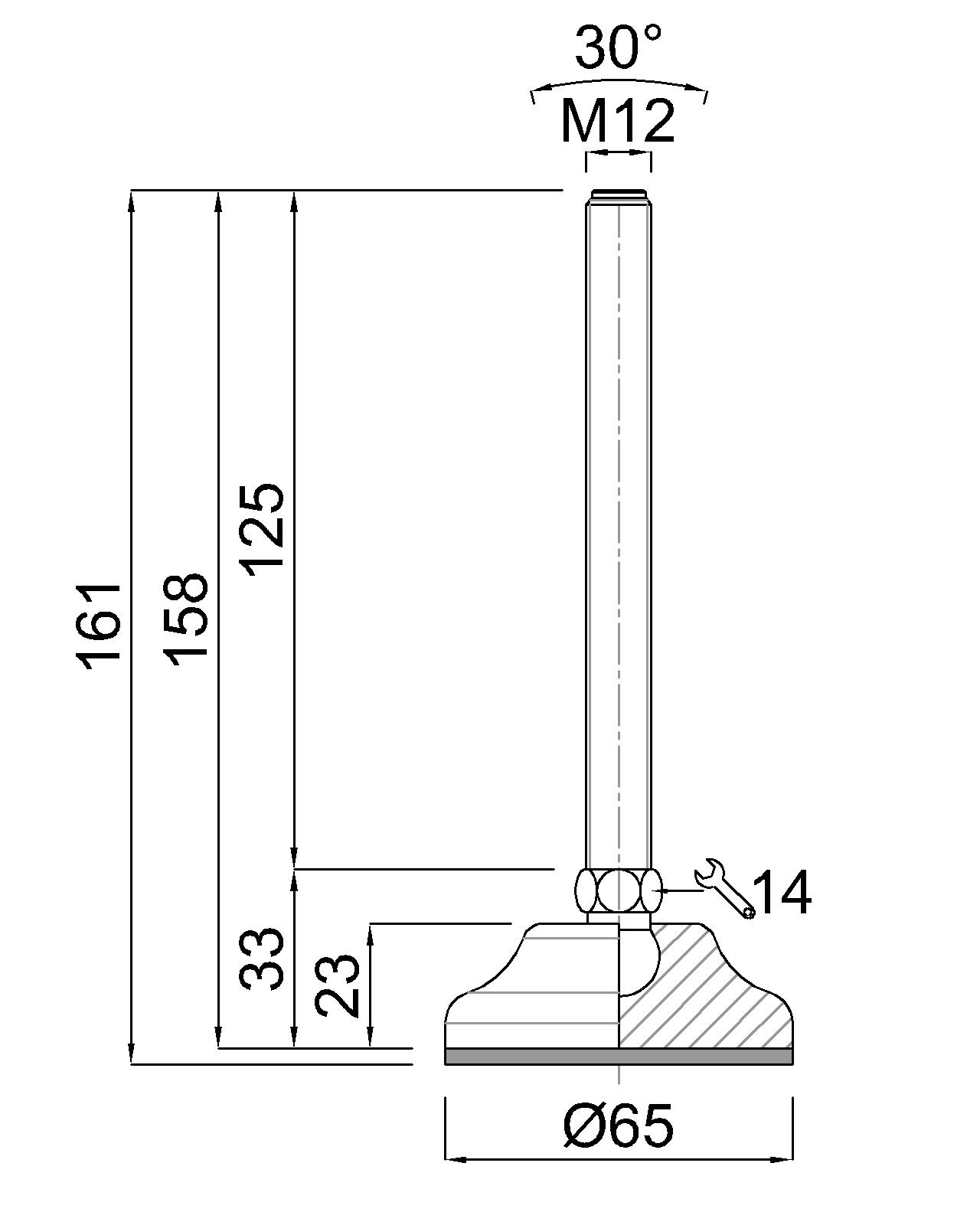

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
