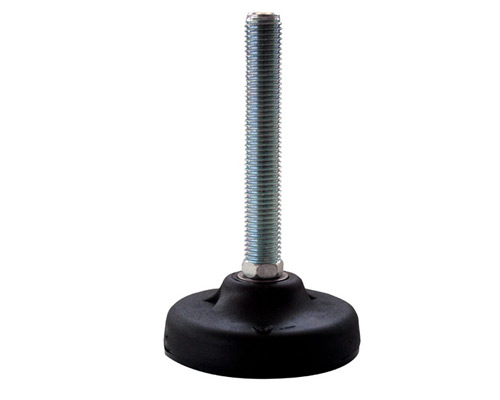

Levelling foot PA, Ø 83 mm, M12 x 100 mm Steel, Drills
Discover our durable PA leveling foot with a diameter of 83 mm, made from robust galvanized steel. Ideal for precise adjustments, it supports static loads up to 15,000 N with a 4° articulated screw.
| Quantity | Price |
|---|---|
| From 1 |
€5.13*
|
| From 5 |
€4.91*
|
| From 15 |
€4.23*
|
| From 50 |
€4.01*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Plastic |
| Anti-slip: | No |
| Ø range base plate (mm): | 71-90 |
| Ground fastening: | 2 mounting holes |
| Vibration damping: | no |
| Material spindle: | Steel |
| Ø spindle (mm): | 12 |
| Spindle length (mm): | 100 |
| Balancing angle: | 4° |
| Hygiene: | No |

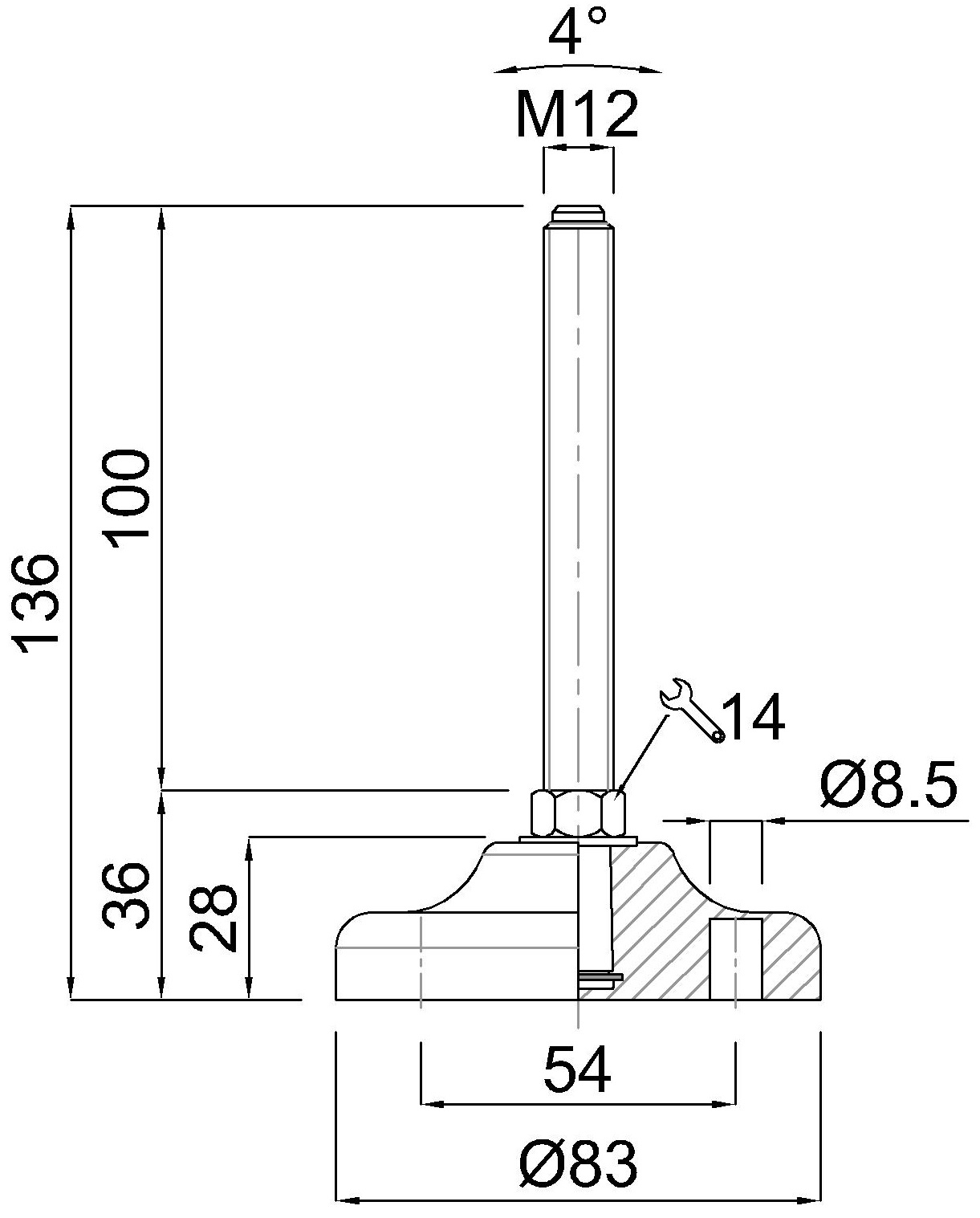

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
