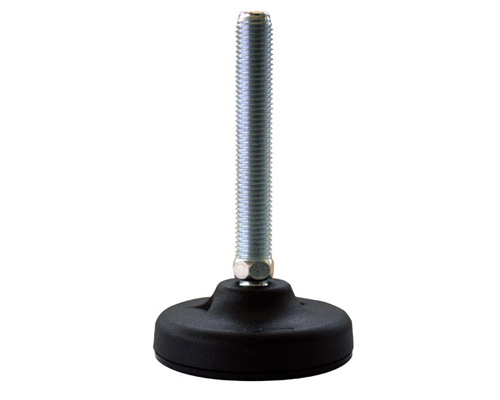

Levelling foot PA, Ø 83 mm, M16 x 150 mm Steel, Drills, NBR

EAN 4061408015191

Type 45810303

Enhance stability with our robust Levelling Foot made of durable polyamide and galvanized steel. Designed for precision, it supports static loads up to 20,000 N with anti-slip NBR and articulated adjustment.

Robust construction with a polyamide base and galvanized steel spindle for enhanced durability and corrosion resistance.
Large diameter of 83 mm for stable support, accommodating a wide range of applications.
Designed for a static load capacity of up to 20,000 N, ensuring reliable performance under heavy loads.
Features articulated screw adjustment up to 30°, allowing for precise leveling on uneven surfaces.
Anti-slip NBR (black) surface ensures secure positioning and minimizes movement during operation.

Quantity	Price
From 1	€6.92*
From 5	€6.62*
From 15	€5.70*
From 50	€5.41*

*Prices excl. VAT plus shipping costs

37 on stock, Refill time: 5 days

€6.92* / piece

Our payment methods:

Accessories

Square plug polyamide 40 x 40, M16, nickel-plated brass insert

Type No.: 45817051

From €2.74*

Product properties

Footplate material:	Plastic
Anti-slip:	NBR black
Ø range base plate (mm):	71-90
Ground fastening:	2 mounting holes
Material spindle:	Steel
Ø spindle (mm):	16
Spindle length (mm):	150
Balancing angle:	30°

Product description

Levelling foot Polyamide, Ø 83 mm, M16 x 150 mm, Galvanized steel, Total height 191 mm, Articulated screw 30°, Bore holes Ø 8,5 mm, Antislip NBR black, Static load 20.000 N

Custom solutions

We develop customised components exactly as you need them for your application.

Learn more about custom solutions Contact us

Technical documentation

In this section you will find all relevant documents & links for your documentation::

Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
