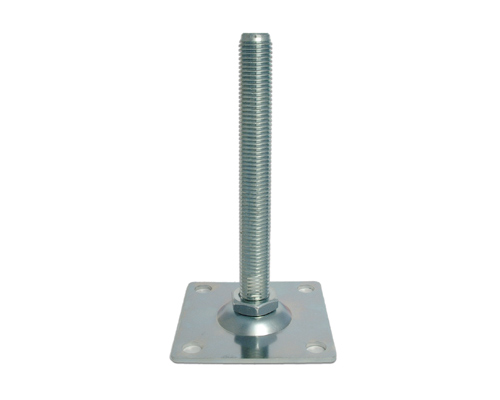

Levelling foot PRESSED steel, 100 x 100 mm, M20 x 150 mm, Drills
Introducing our pressed steel leveling foot, designed for robust stability and precision. With a static load capacity of 25,000 N, it features a galvanized finish, articulated screw for adjustment, and versatile bore holes for easy mounting.
| Quantity | Price |
|---|---|
| From 1 |
€9.85*
|
| From 5 |
€9.43*
|
| From 15 |
€9.13*
|
| From 50 |
€9.01*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Steel |
| Anti-slip: | No |
| Ø range base plate (mm): | 91-110 |
| Ground fastening: | 2 mounting holes |
| Vibration damping: | no |
| Material spindle: | Steel |
| Ø spindle (mm): | 20 |
| Spindle length (mm): | 150 |
| Balancing angle: | 8° |
| Hygiene: | No |

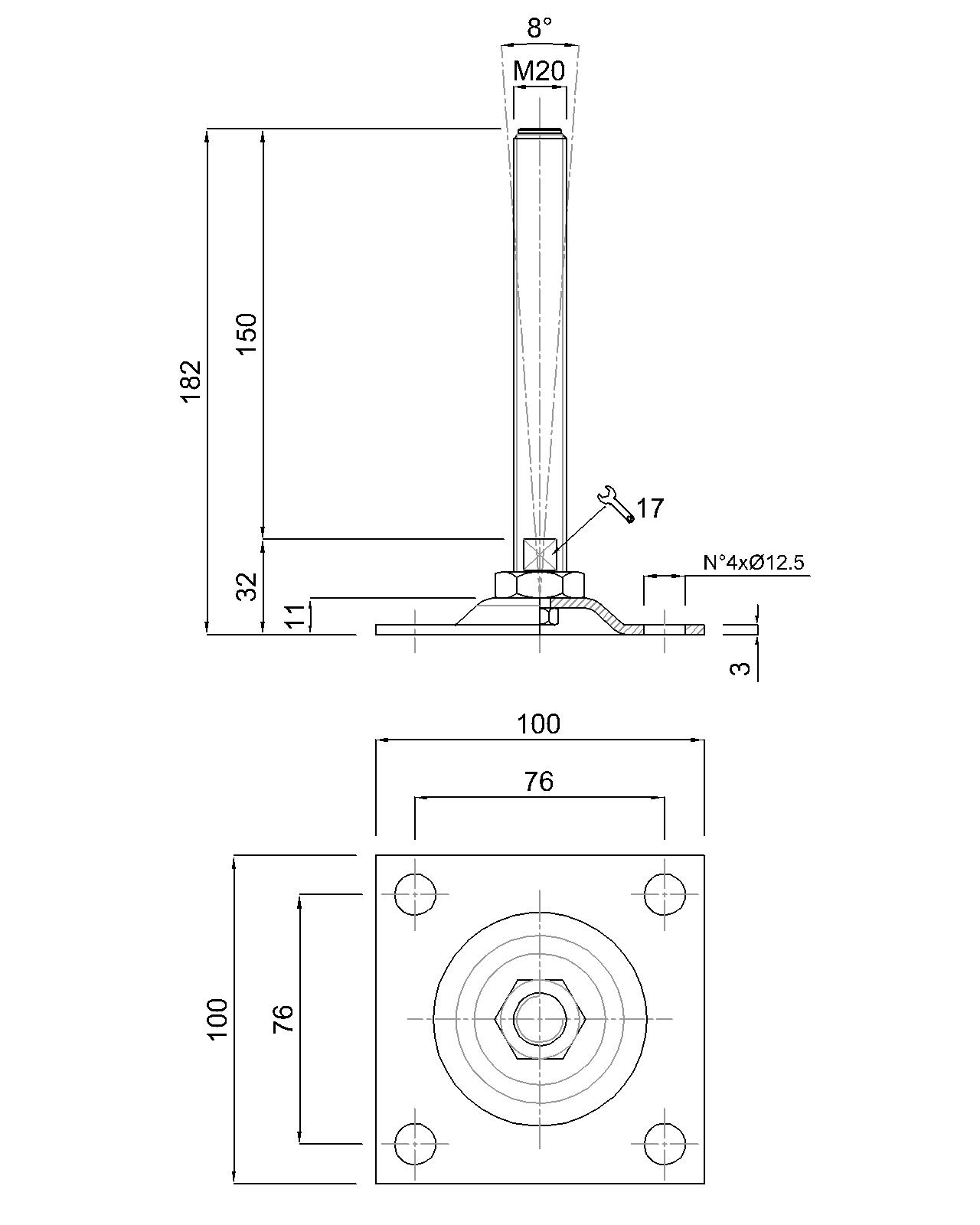

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
