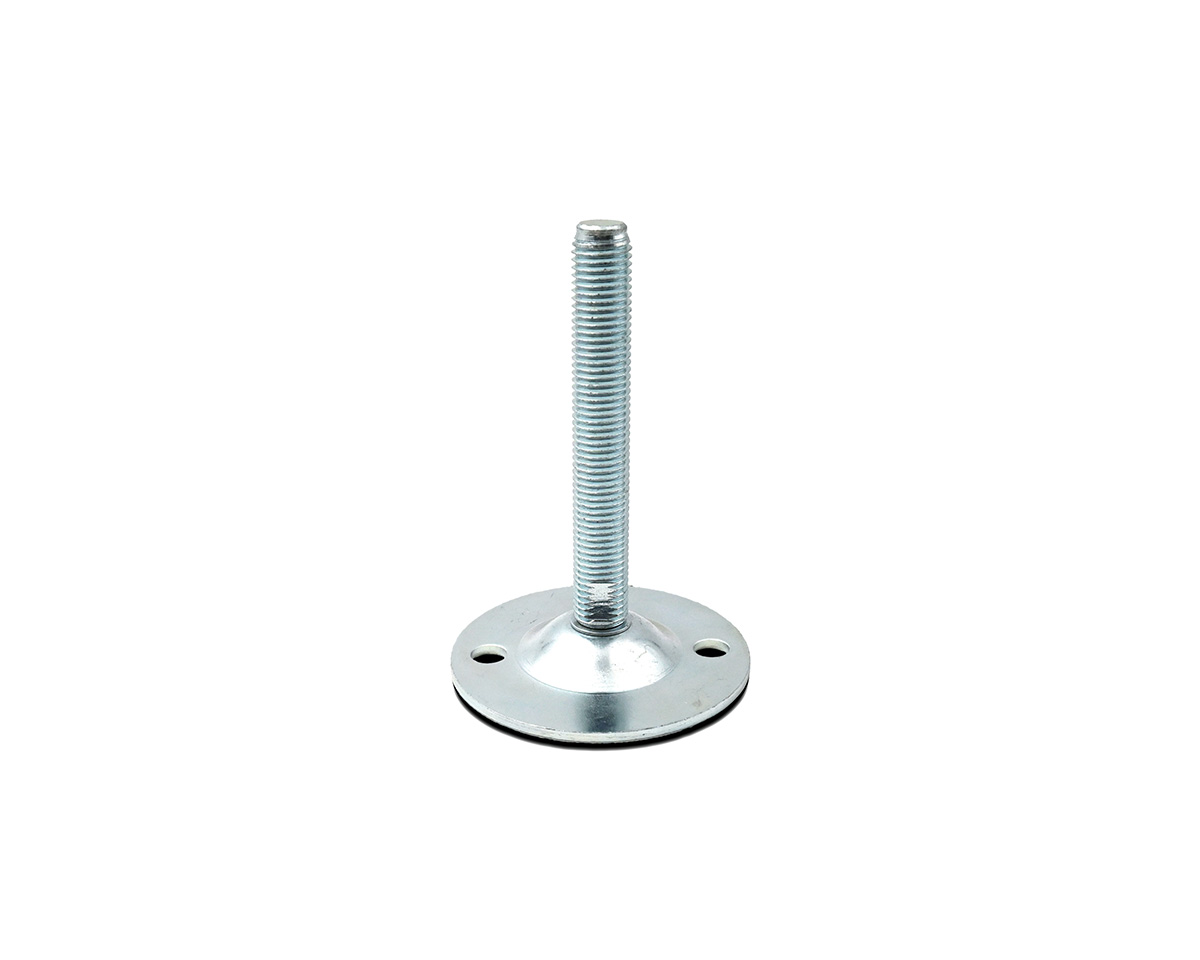

Levelling foot PRESSED steel, Ø 85 mm, M16 x 150 mm, Drills, NBR
Optimize your machinery with our robust pressed steel leveling foot, featuring an 85mm diameter and M16 x 150mm spindle. With a static load capacity of 15,000 N and NBR anti-slip properties, it ensures stability and precision in your applications.
| Quantity | Price |
|---|---|
| From 1 |
€12.80*
|
| From 5 |
€12.26*
|
| From 15 |
€11.87*
|
| From 50 |
€11.72*
|
15 on stock, Refill time: 5 days
Product properties
| Footplate material: | Steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 71-90 |
| Ground fastening: | 2 mounting holes |
| Material spindle: | Steel |
| Ø spindle (mm): | 16 |
| Spindle length (mm): | 150 |
| Balancing angle: | 8° |

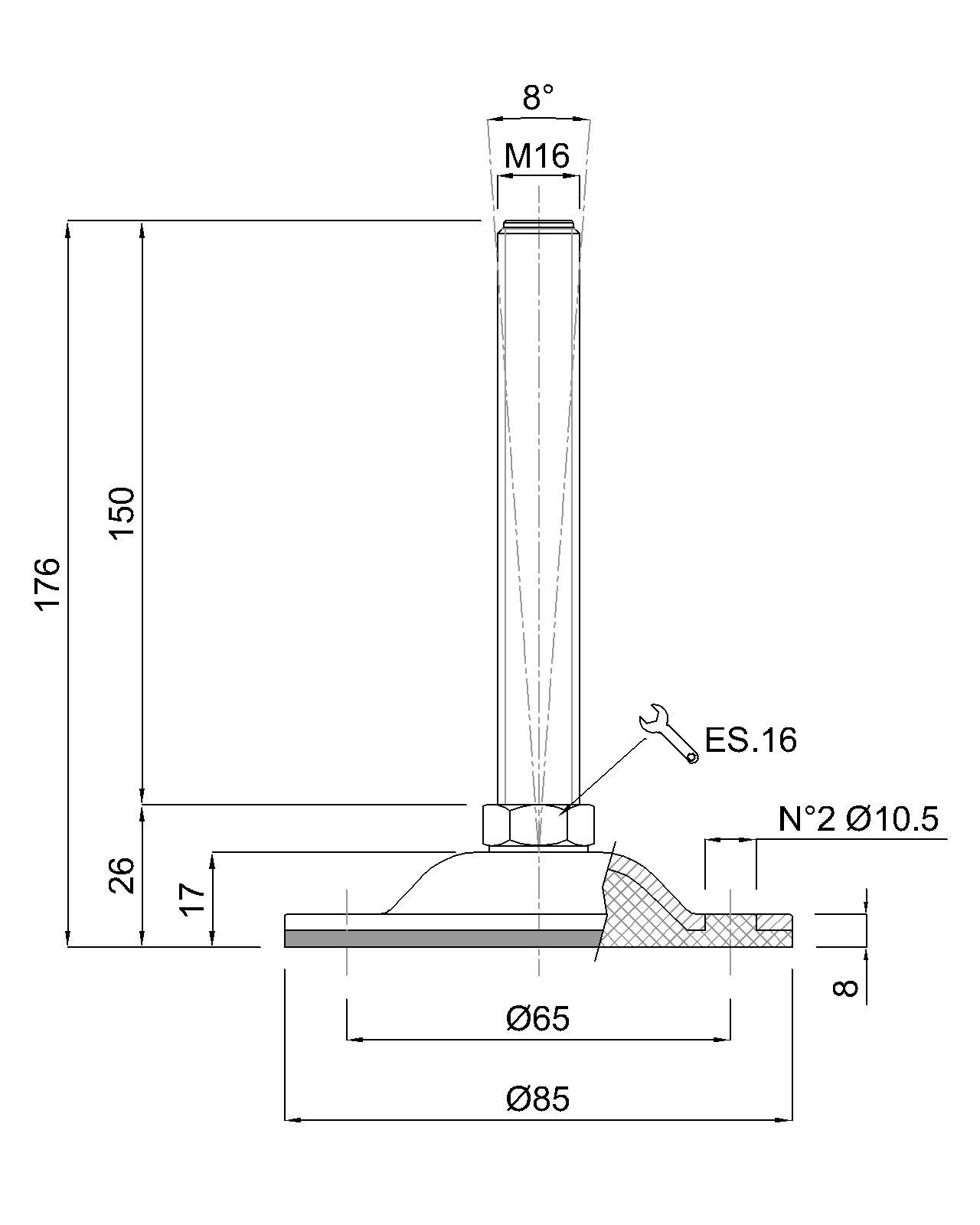

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
