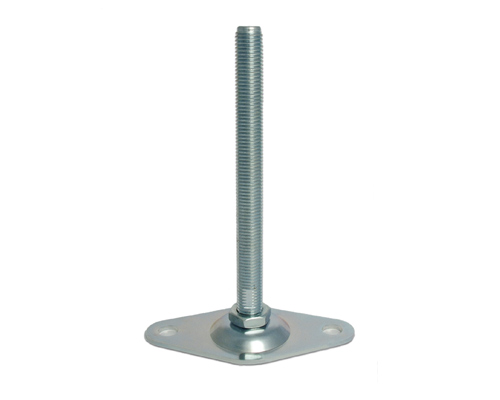

Levelling foot PRESSED steel, oval Ø 65 mm, M16 x 200 mm, Drills
Optimize your setup with our galvanized steel leveling foot, featuring a robust oval base (Ø 65 mm) and an adjustable M16 screw, delivering a static load capacity of 20,000 N.
| Quantity | Price |
|---|---|
| From 1 |
€8.37*
|
| From 5 |
€8.01*
|
| From 15 |
€7.76*
|
| From 50 |
€7.66*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Steel |
| Anti-slip: | No |
| Ø range base plate (mm): | 51-70 |
| Ground fastening: | 2 mounting holes |
| Vibration damping: | no |
| Material spindle: | Steel |
| Ø spindle (mm): | 16 |
| Spindle length (mm): | 200 |
| Balancing angle: | 8° |
| Hygiene: | No |

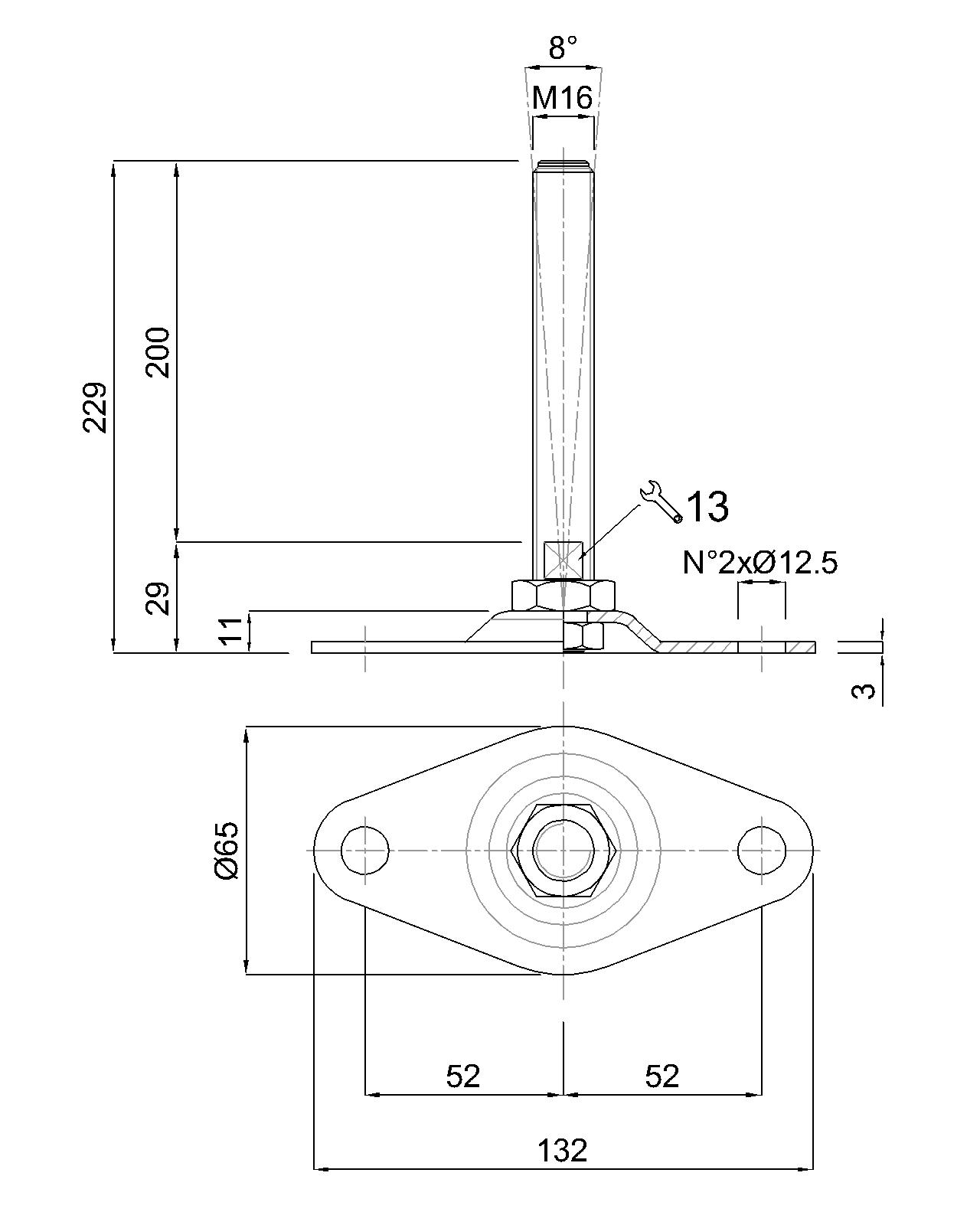

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
