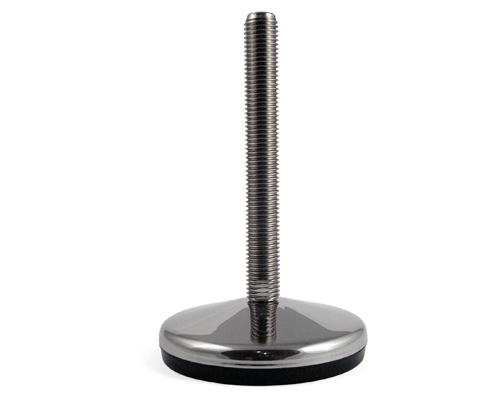

Levelling foot VULCANIZED stainless steel, Ø 120 mm, M24 x 250 mm, NBR
Optimize your equipment stability with our VULCANIZED stainless steel leveling foot, featuring a 120 mm diameter and M24 x 250 mm stainless steel spindle. Capable of withstanding static loads up to 30,000 N, it ensures reliable performance even on uneven surfaces.
| Quantity | Price |
|---|---|
| From 1 |
€34.17*
|
| From 13 |
€32.10*
|
| From 25 |
€30.03*
|
| From 50 |
€28.58*
|
12 on stock, Refill time: 5 days
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 111-130 |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 24 |
| Spindle length (mm): | 250 |
| Balancing angle: | 10° |

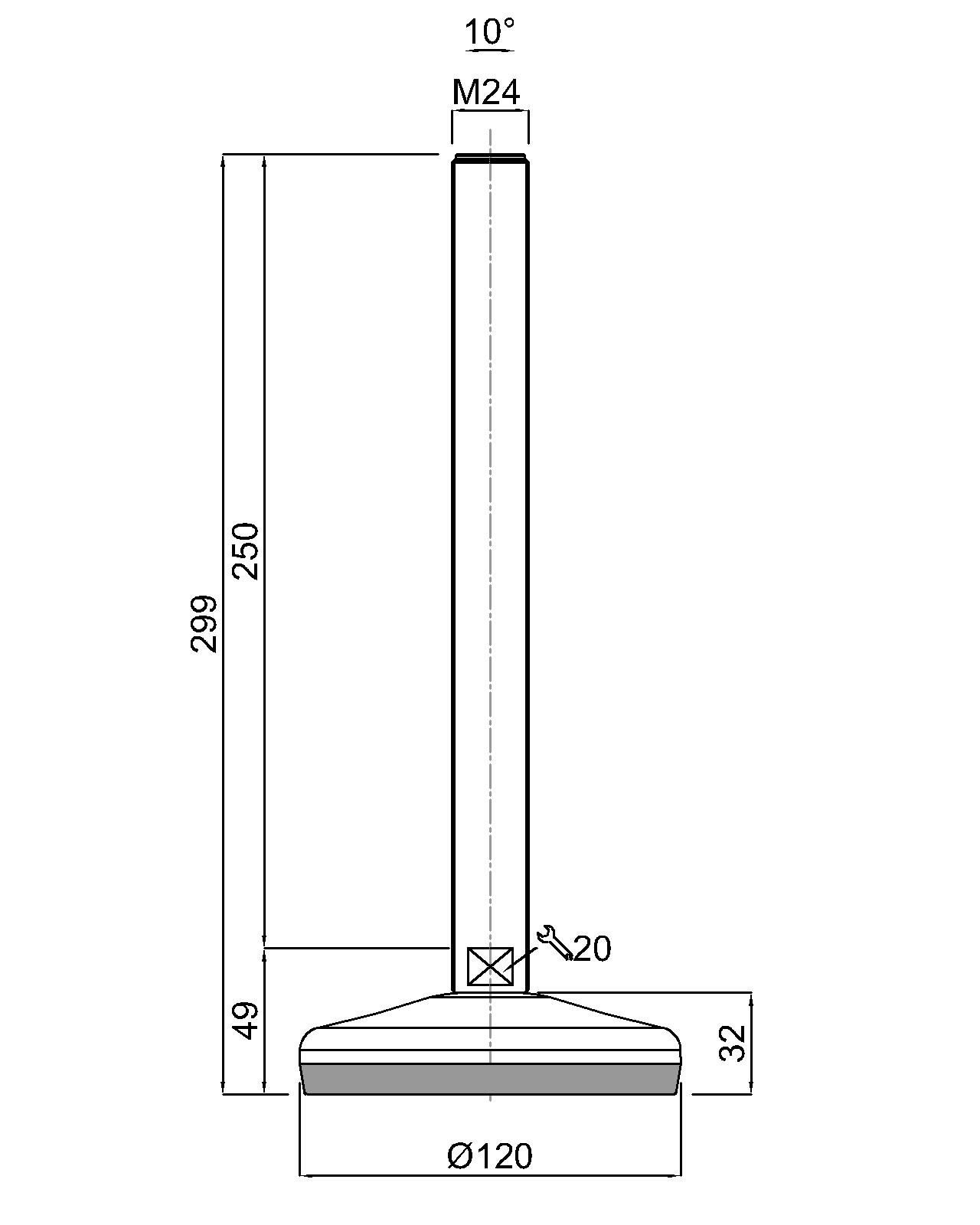

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
