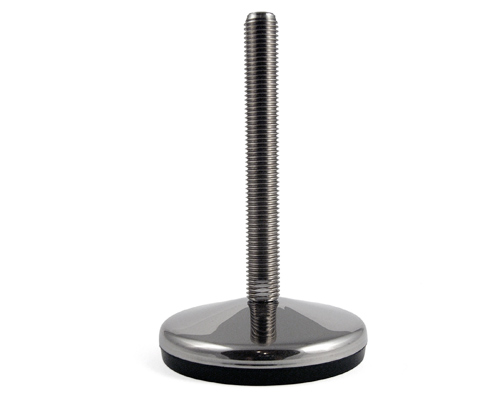

Levelling foot VULCANIZED stainless steel, Ø 120 mm, M20 x 175 mm, NBR
Introducing the VULCANIZED stainless steel leveling foot, designed for precision! With a robust static load capacity of 30,000 N, a total height of 222 mm, and articulated screw adjustment of 10°, it ensures stability in challenging environments.
| Quantity | Price |
|---|---|
| From 1 |
€27.14*
|
| From 13 |
€25.50*
|
| From 25 |
€23.85*
|
| From 50 |
€22.70*
|
13 on stock, Refill time: 5 days
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 111-130 |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 20 |
| Spindle length (mm): | 175 |
| Balancing angle: | 10° |
Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
