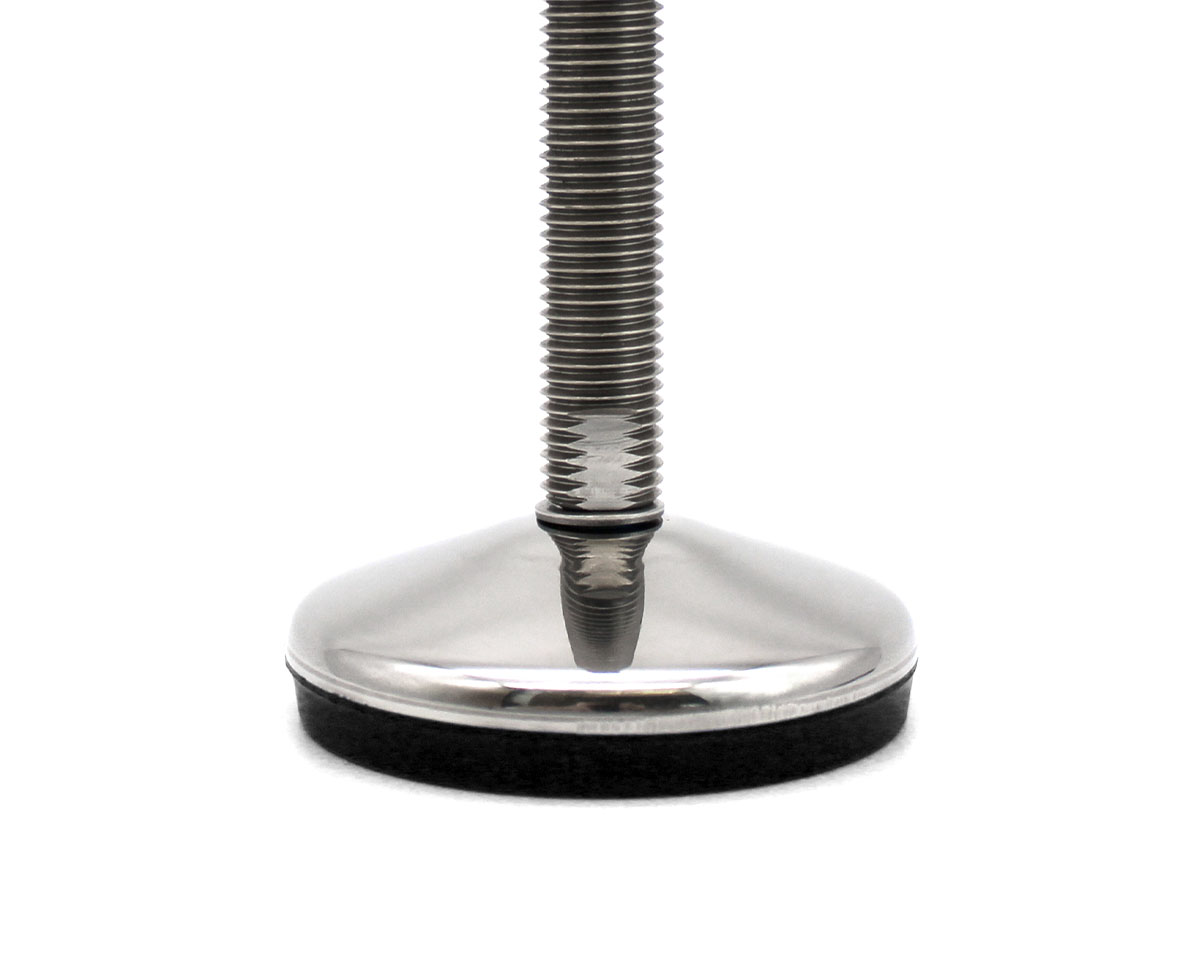

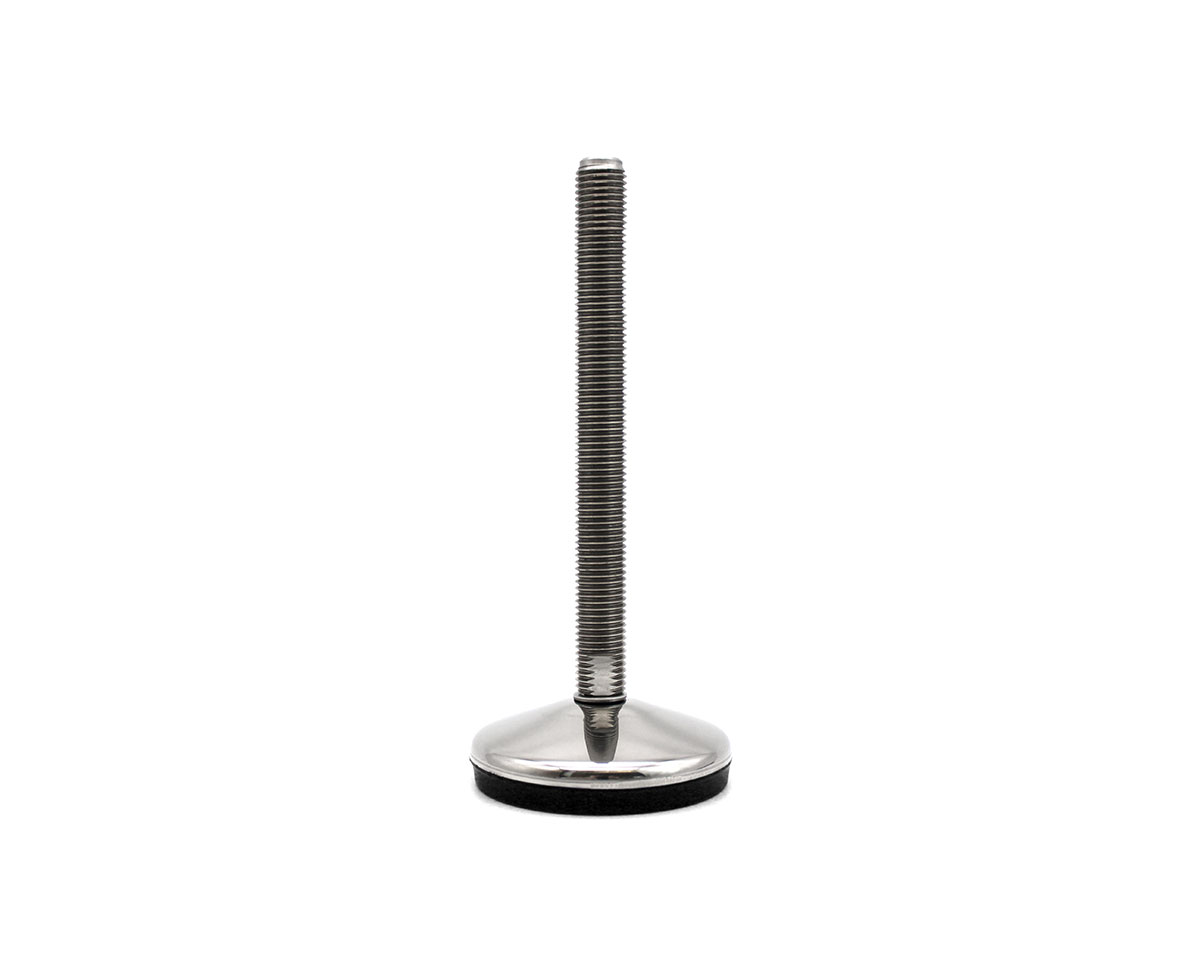

Levelling foot VULCANIZED stainless steel, Ø 80 mm, M24 x 175 mm, NBR
Maximize stability with our VULCANIZED stainless steel leveling foot, featuring a durable 80 mm base and M24 x 175 mm threaded spindle. Supports static loads up to 10,000 N with 10° articulation.
| Quantity | Price |
|---|---|
| From 1 |
€20.38*
|
| From 13 |
€19.14*
|
| From 25 |
€17.91*
|
| From 50 |
€17.04*
|
5 on stock, Refill time: 5 days
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 71-90 |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 24 |
| Spindle length (mm): | 175 |
| Balancing angle: | 10° |

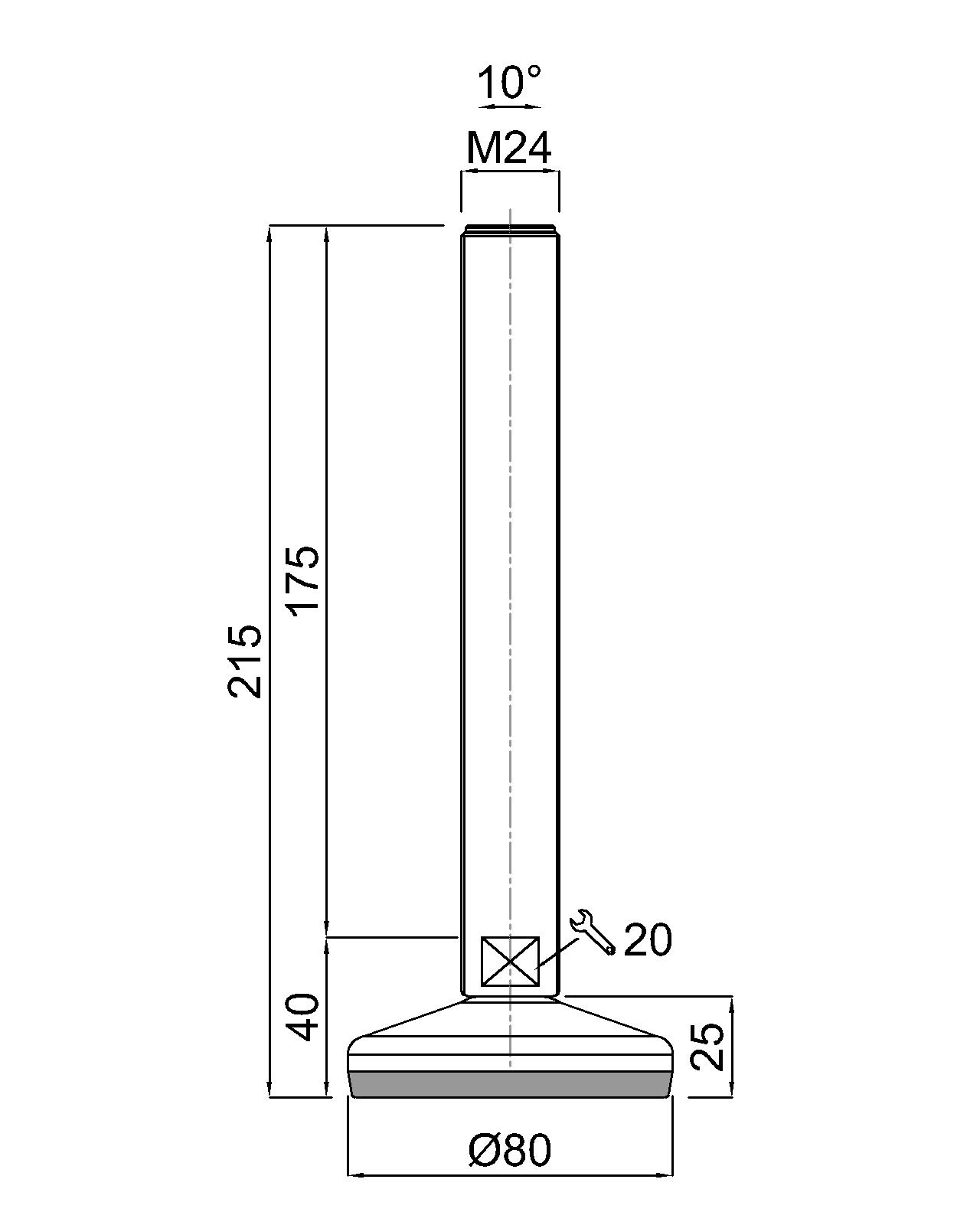

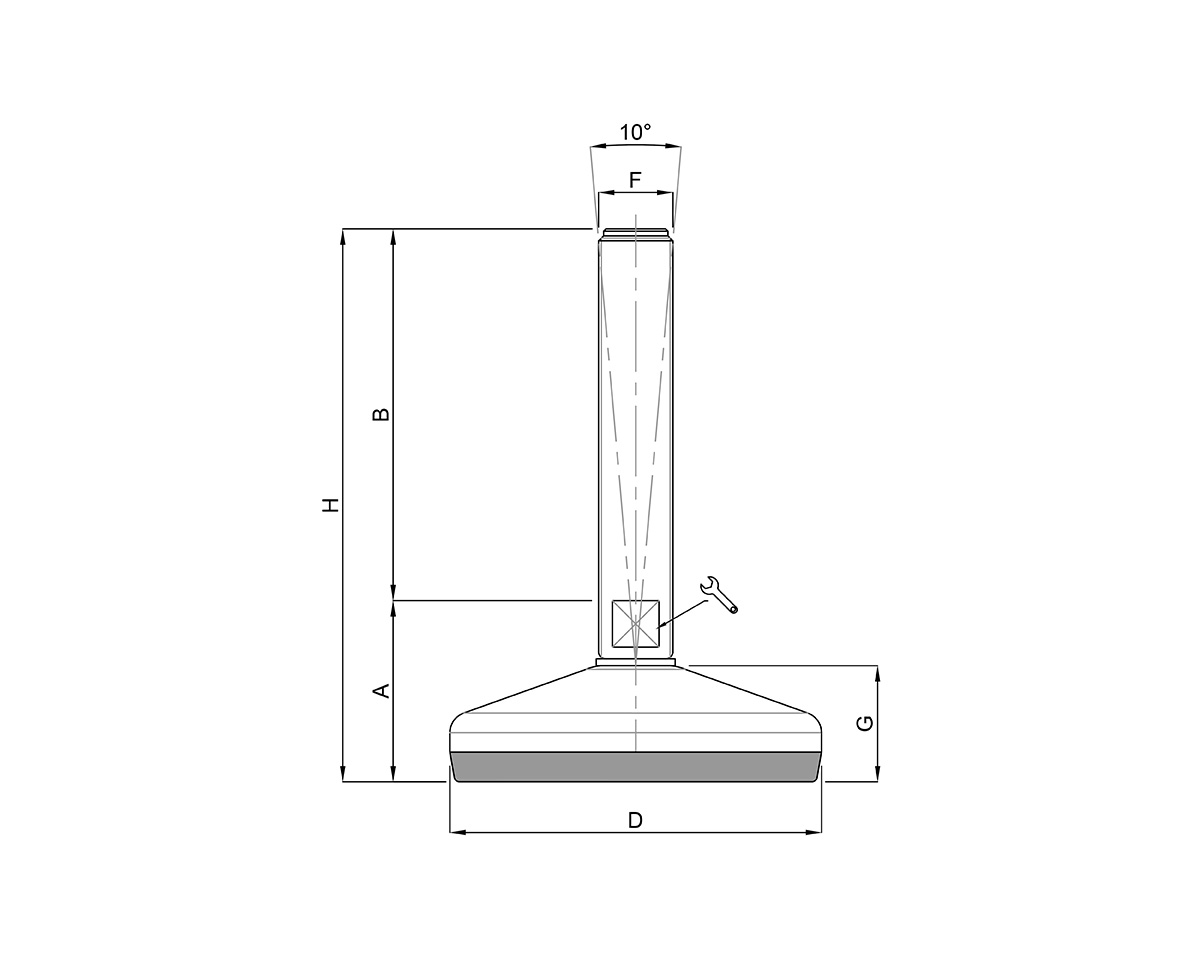

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
