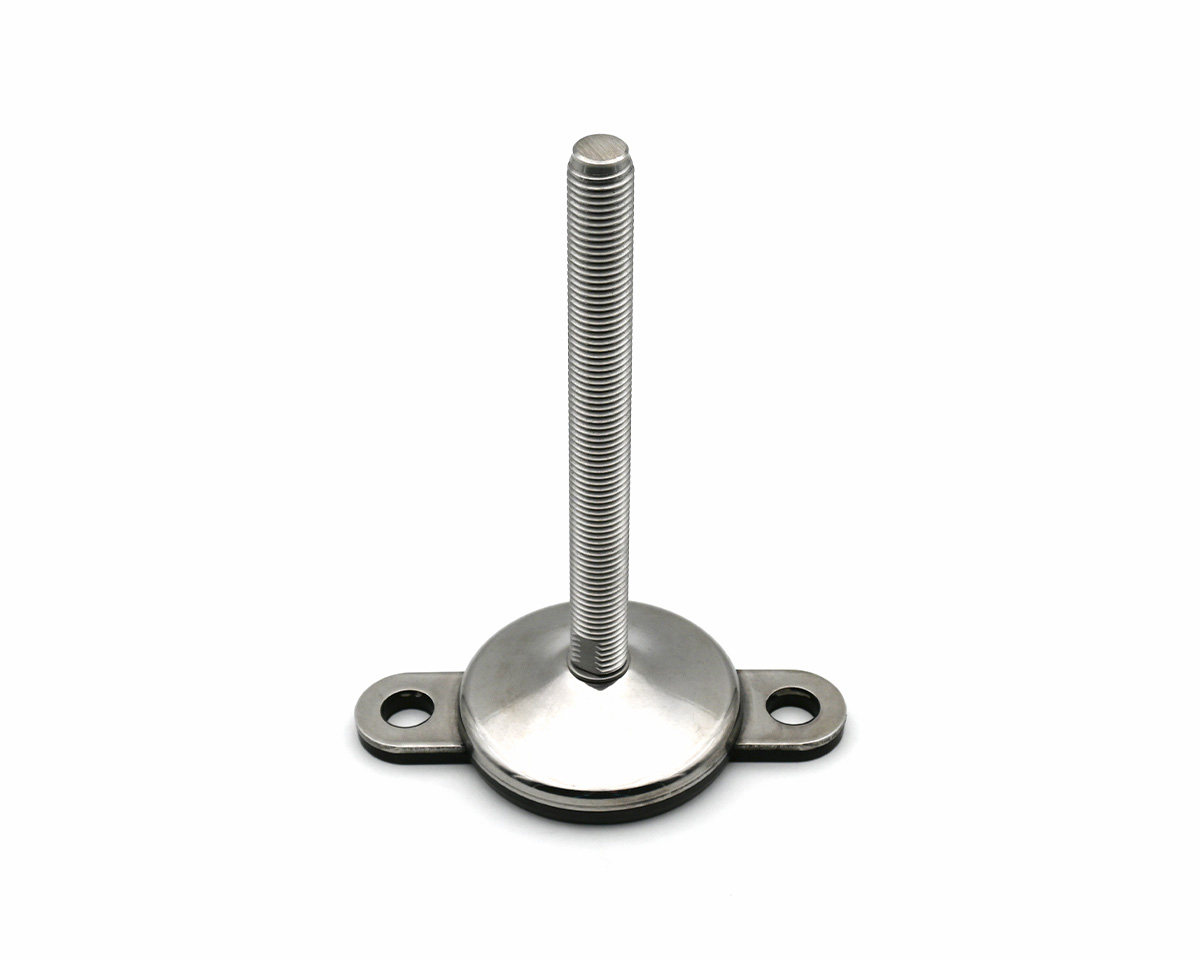

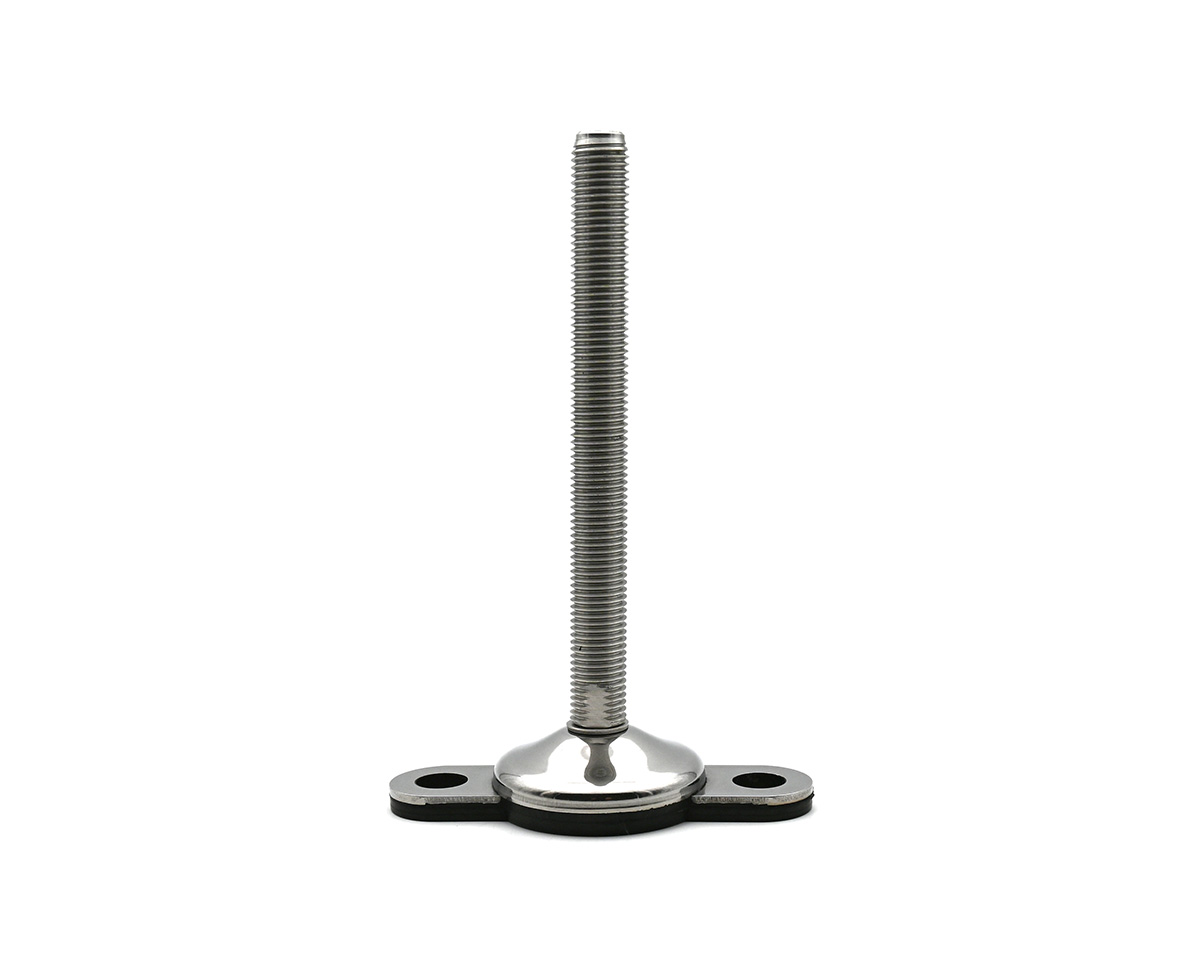

Levelling foot VULCANIZED stainless steel, Ø 60 mm, M16 x 100 mm, 2 Lugs, NBR
Ensure stability with our VULCANIZED stainless steel levelling foot, featuring a 60 mm diameter and M16 x 100 mm thread. Designed for precision, it supports static loads up to 7,000 N.
| Quantity | Price |
|---|---|
| From 1 |
€13.33*
|
| From 13 |
€12.52*
|
| From 25 |
€11.72*
|
| From 50 |
€11.15*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 51-70 |
| Ground fastening: | 2 mounting lugs |
| Vibration damping: | no |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 16 |
| Spindle length (mm): | 100 |
| Balancing angle: | 10° |
| Hygiene: | No |
| Brake: | No |
| Steerable: | no |

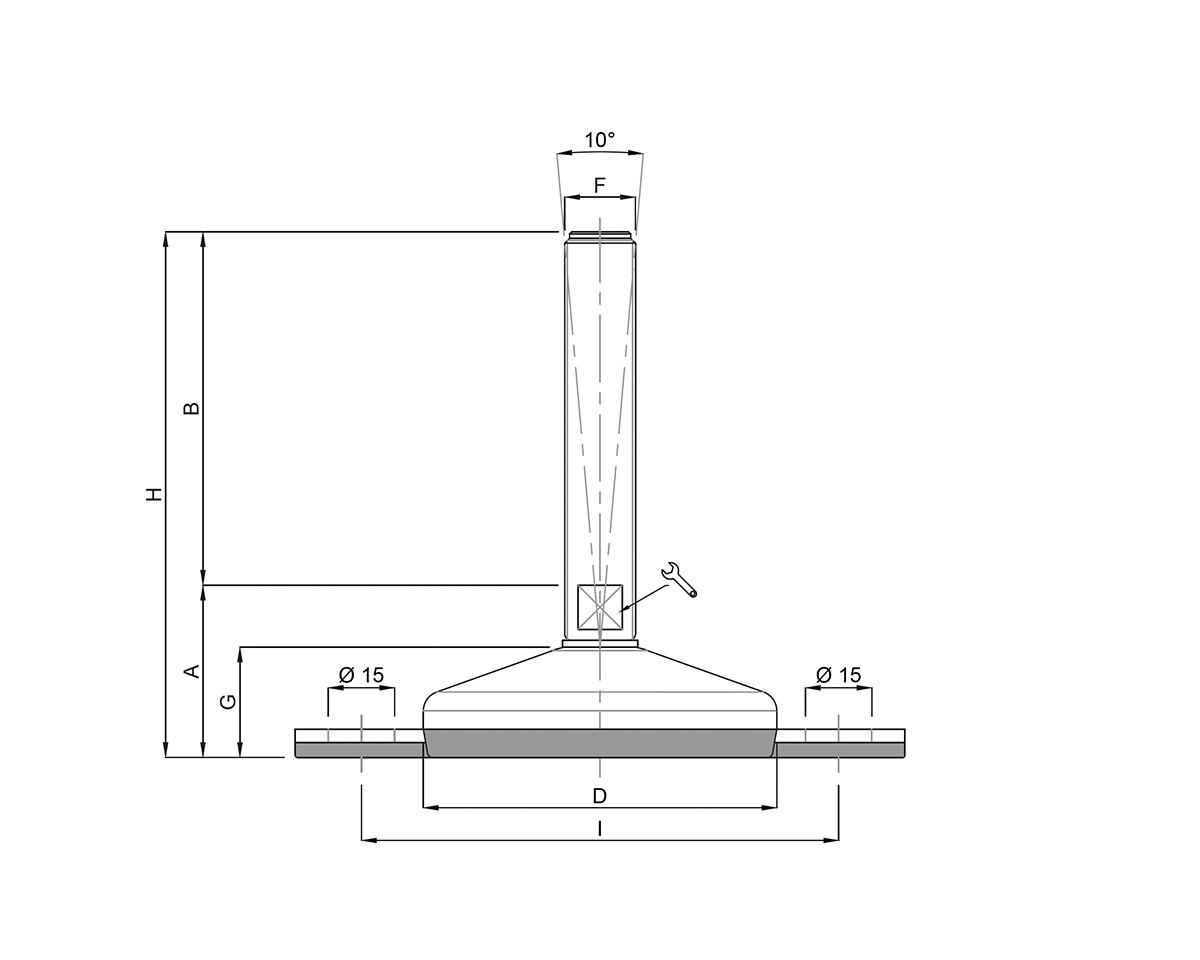

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
