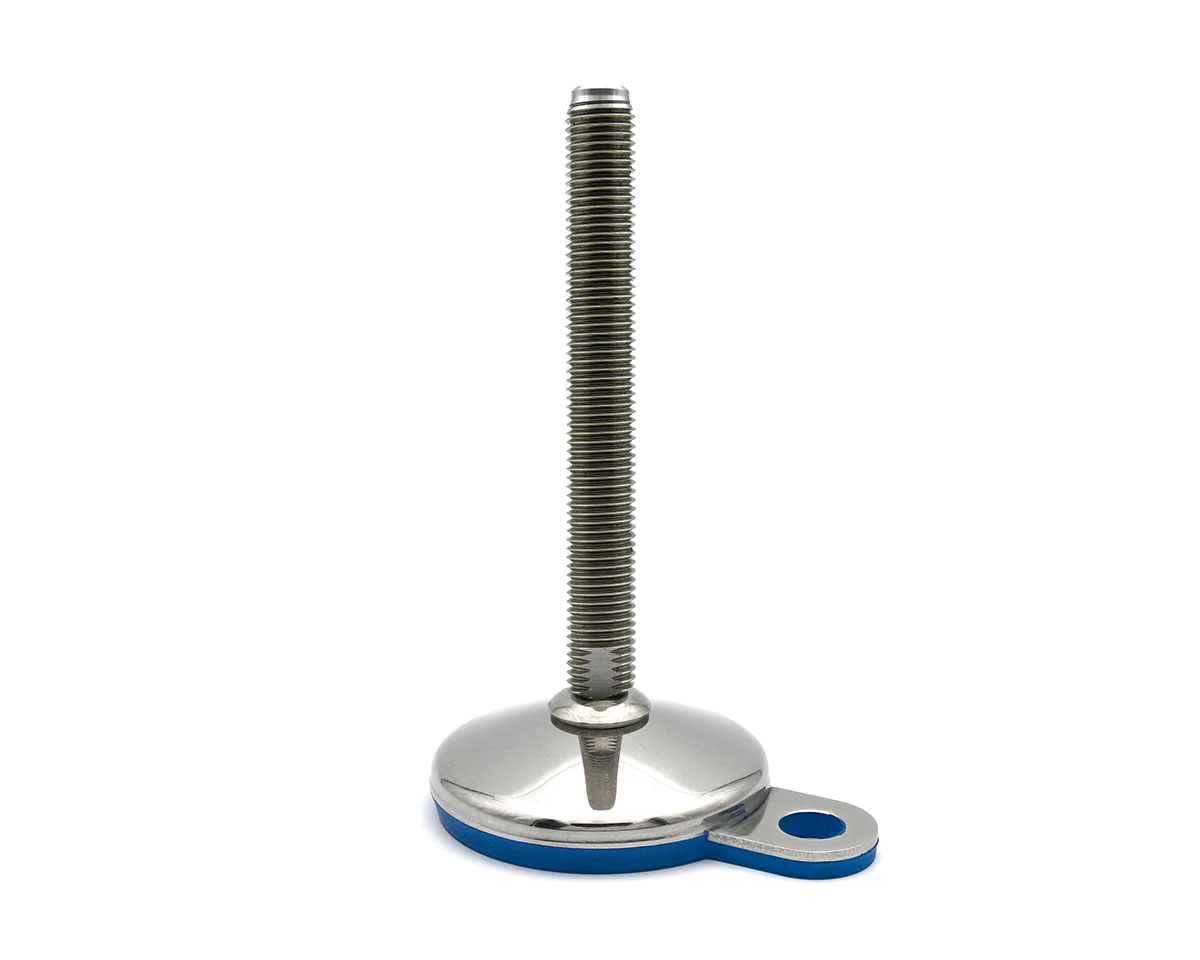

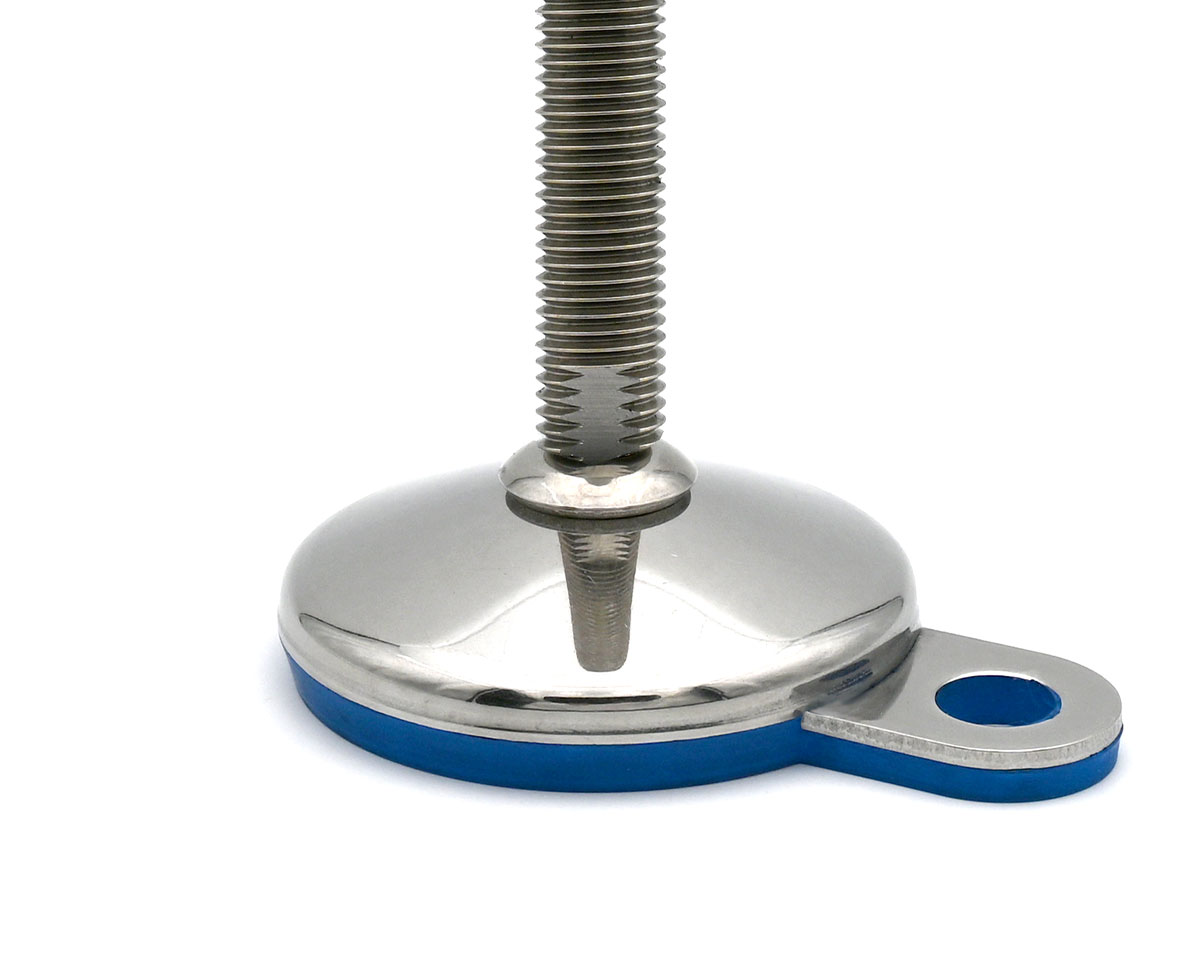

Levelling foot VULCANIZED stainless steel, Ø 60 mm, M20 x 225 mm, Hygenic, Lug, EPDM
Enhance stability and hygiene with our VULCANIZED stainless steel leveling foot. Designed for heavy loads up to 7,000 N, it features an articulated screw for 10° adjustment and non-slip EPDM.
| Quantity | Price |
|---|---|
| From 1 |
€19.93*
|
| From 13 |
€18.71*
|
| From 25 |
€17.49*
|
| From 50 |
€16.63*
|
Currently sold out, Refill time: 8 days
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | EPDM blue |
| Ø range base plate (mm): | 51-70 |
| Ground fastening: | 1 mounting lug |
| Vibration damping: | no |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 20 |
| Spindle length (mm): | 225 |
| Balancing angle: | 10° |
| Hygiene: | No |

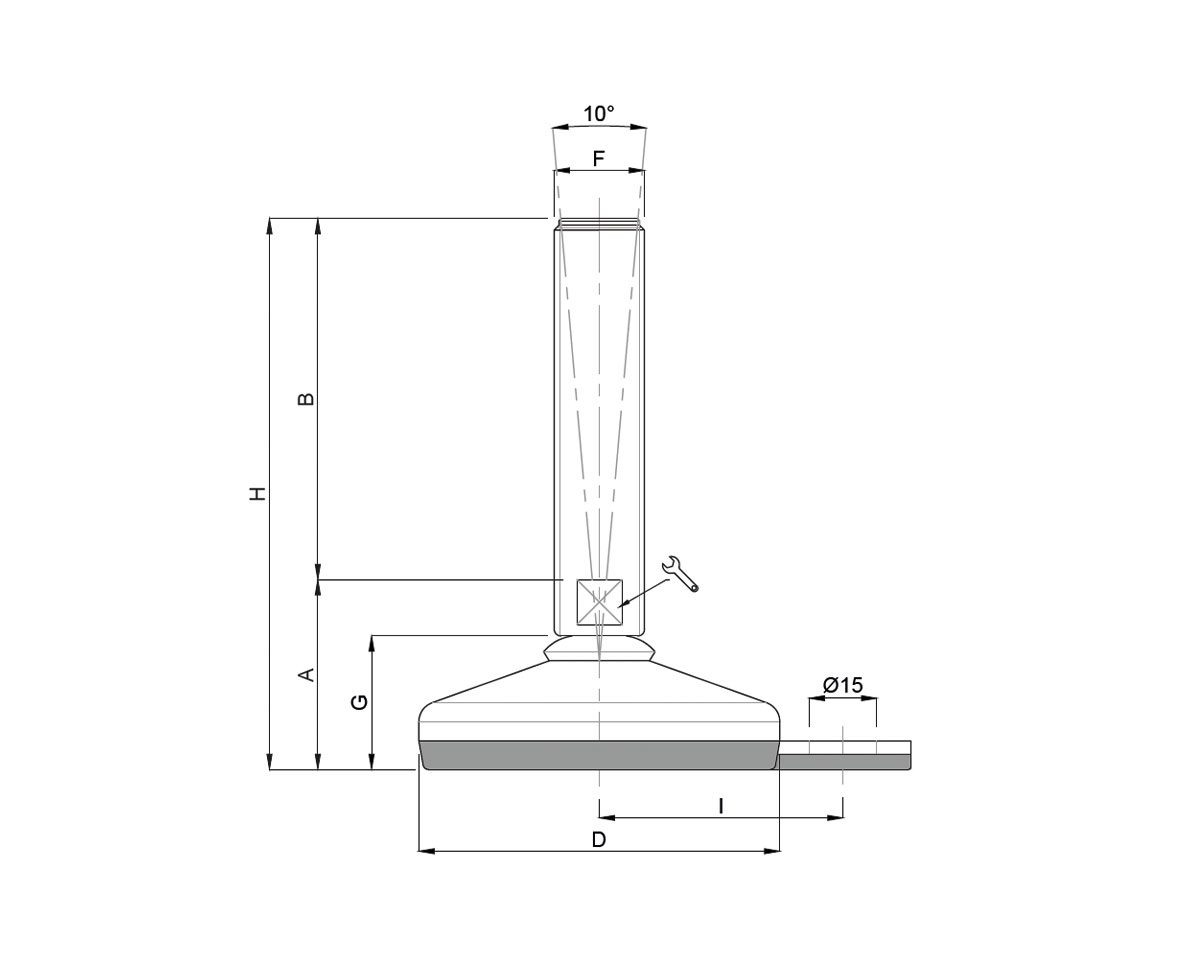

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
