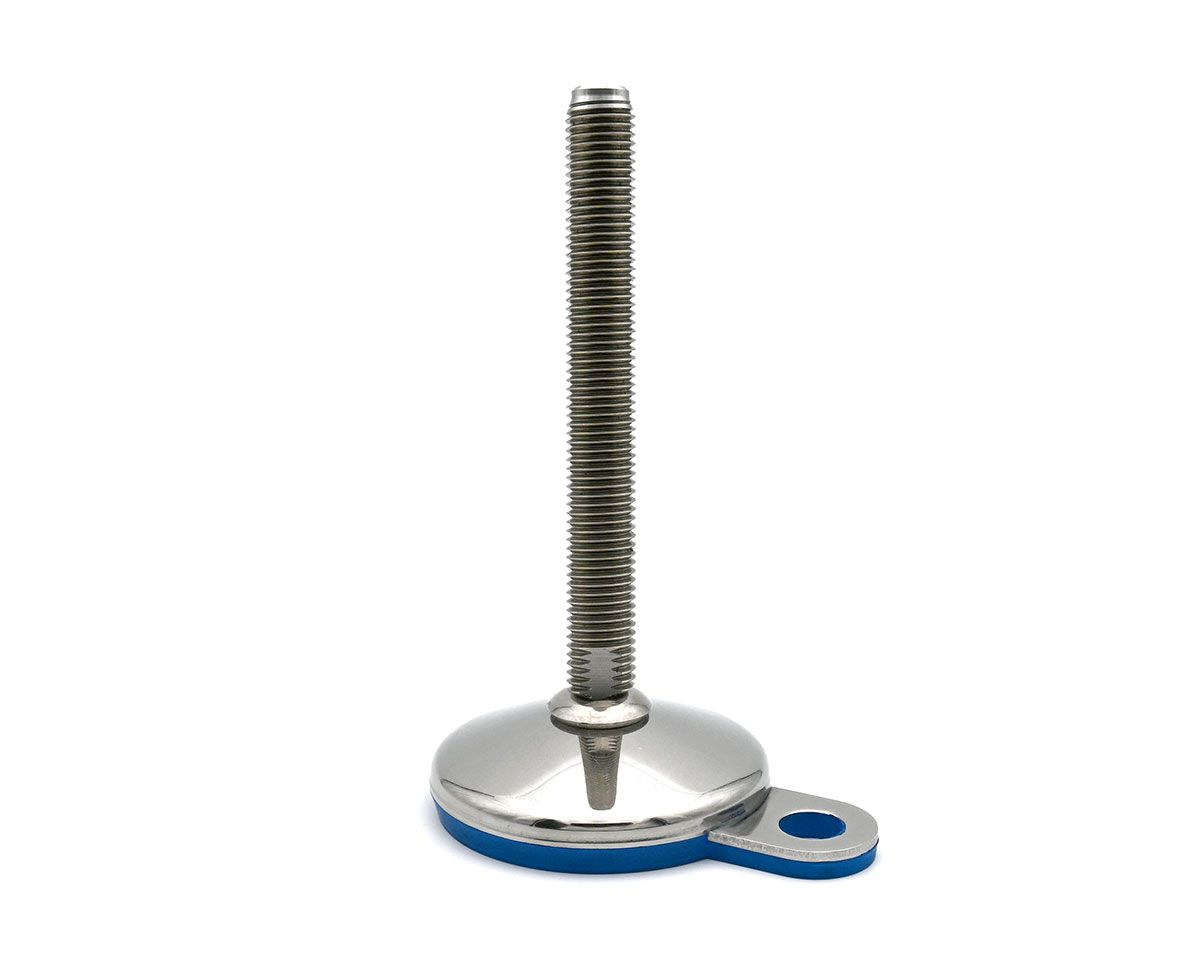

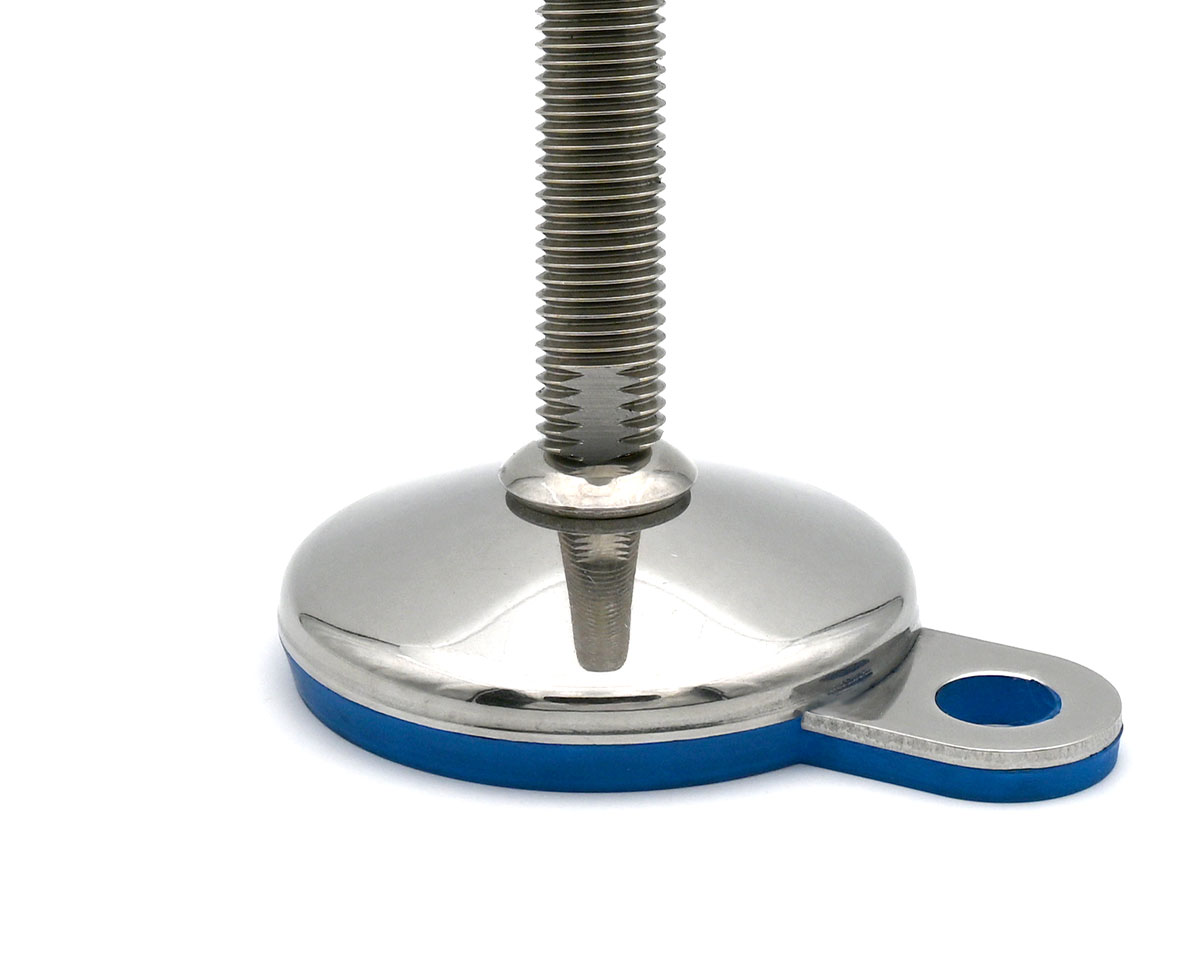

Levelling foot VULCANIZED stainless steel, Ø 80 mm, M24 x 175 mm, Hygenic, Lug, EPDM
Discover the VULCANIZED Stainless Steel Levelling Foot, designed for optimal hygiene and durability. Boasting a static load capacity of 10,000 N and an adjustable articulated screw, it's perfect for precise leveling in demanding environments.
| Quantity | Price |
|---|---|
| From 1 |
€24.27*
|
| From 13 |
€22.78*
|
| From 25 |
€21.29*
|
| From 50 |
€20.25*
|
Currently sold out, Refill time: 8 days
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | EPDM blue |
| Ø range base plate (mm): | 71-90 |
| Ground fastening: | 1 mounting lug |
| Vibration damping: | no |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 24 |
| Spindle length (mm): | 175 |
| Balancing angle: | 10° |
| Hygiene: | No |

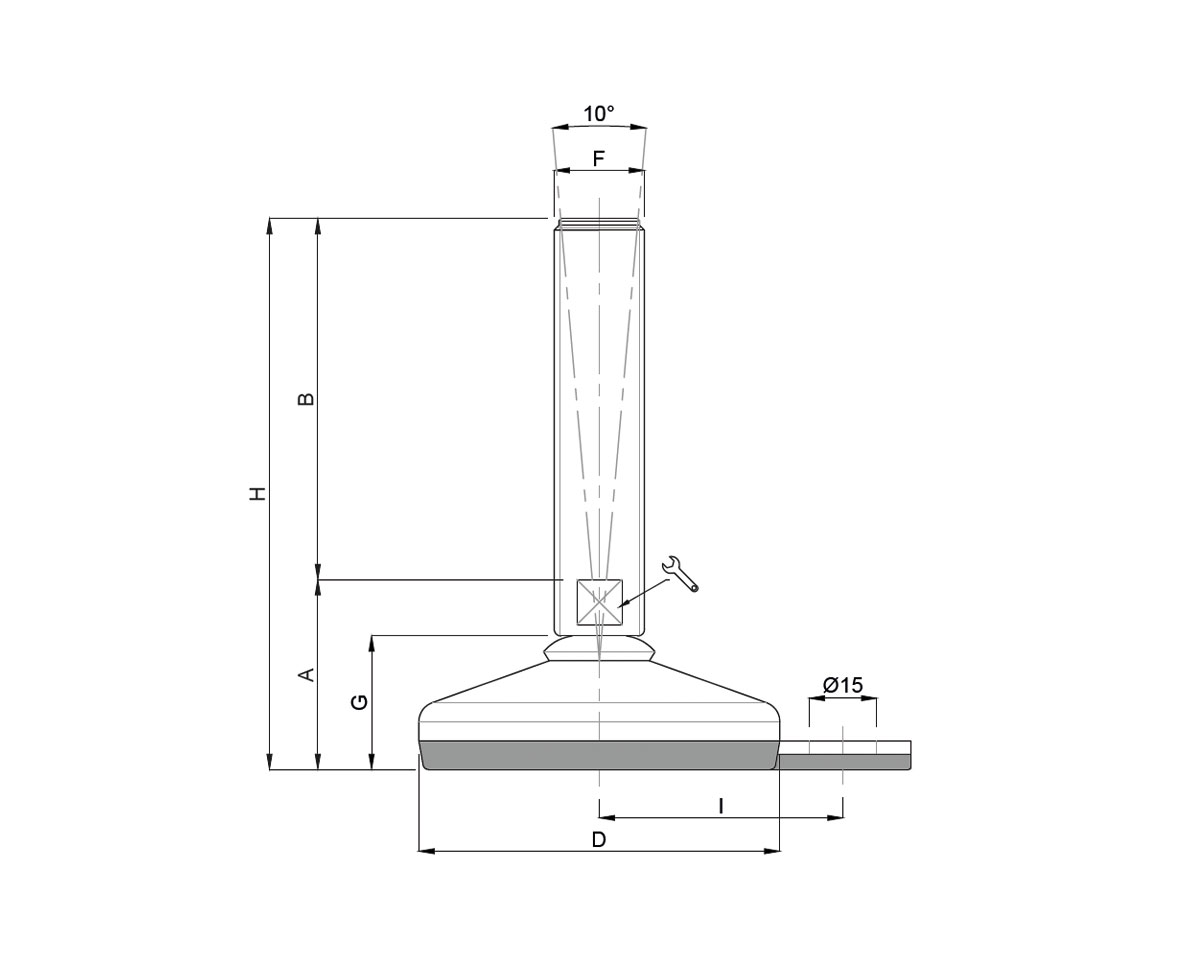

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
