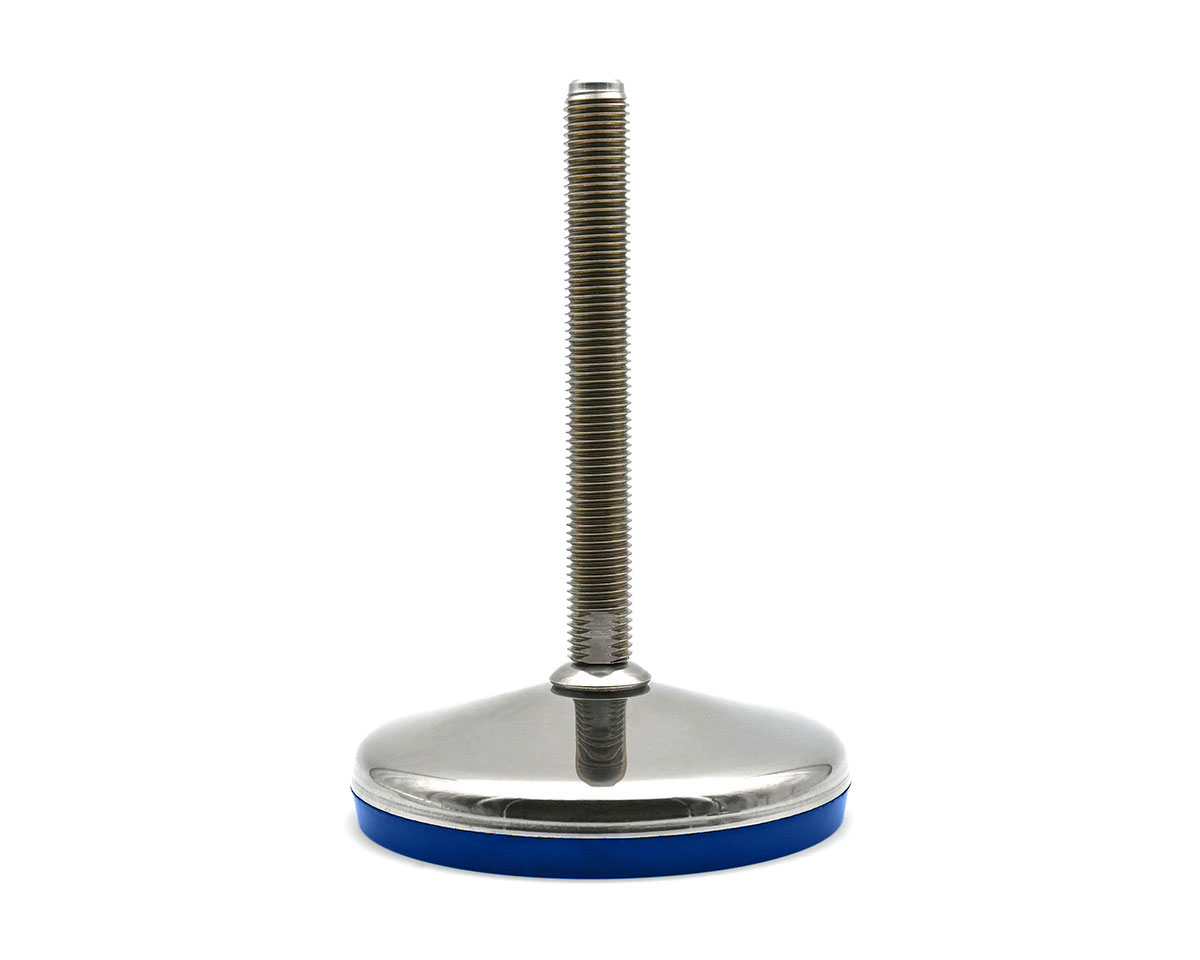

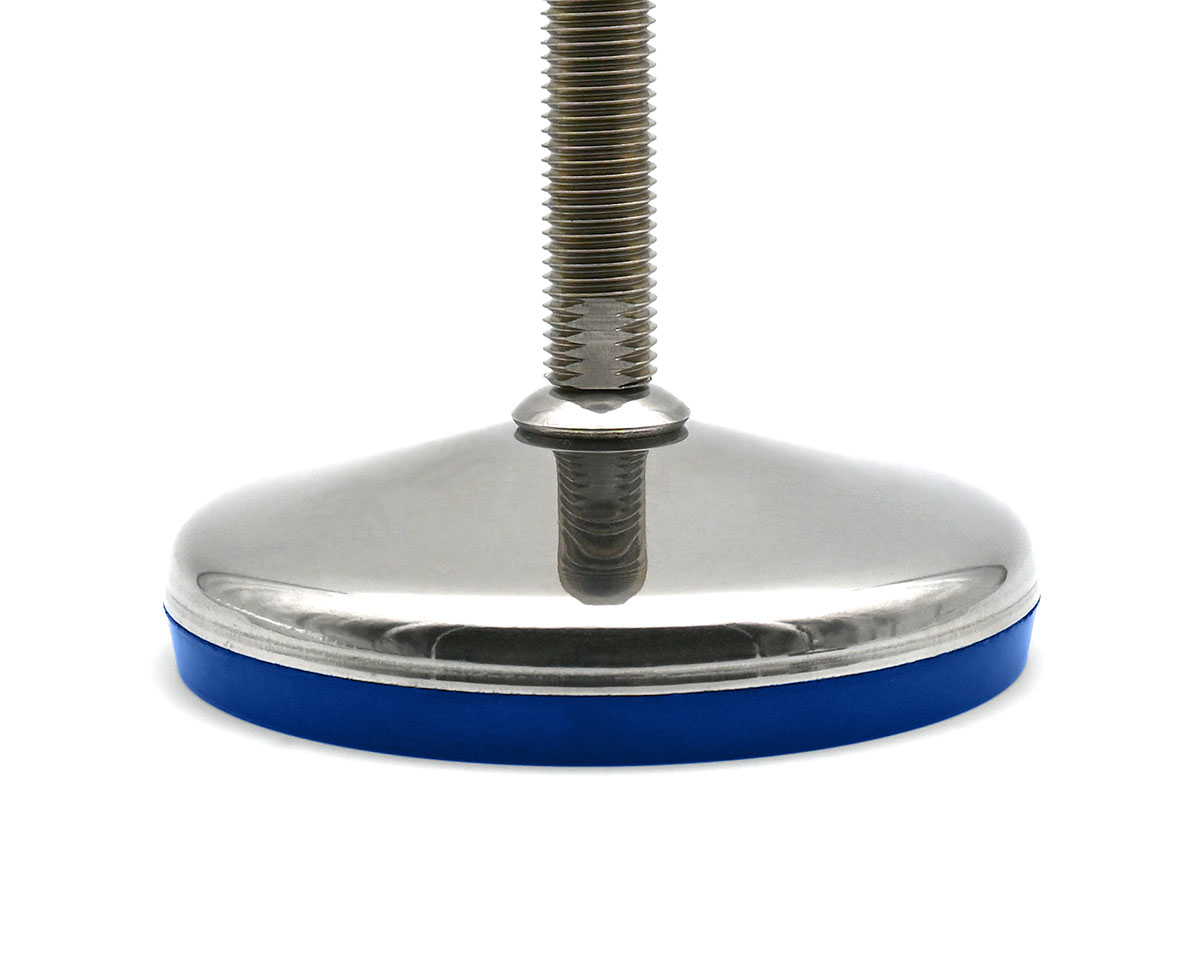

Levelling foot VULCANIZED stainless steel, Ø 120 mm, M30 x 150 mm, Hygenic, EPDM
Optimize stability and hygiene with our VULCANIZED stainless steel leveling foot. Featuring a 120 mm diameter, M30 x 150 mm threaded spindle, and superior EPDM anti-slip technology, it supports up to 30,000 N.
| Quantity | Price |
|---|---|
| From 1 |
€35.55*
|
| From 13 |
€33.37*
|
| From 25 |
€31.19*
|
| From 50 |
€29.66*
|
Currently sold out, Refill time: 8 days
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | EPDM blue |
| Ø range base plate (mm): | 111-130 |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 30 |
| Spindle length (mm): | 150 |
| Balancing angle: | 10° |

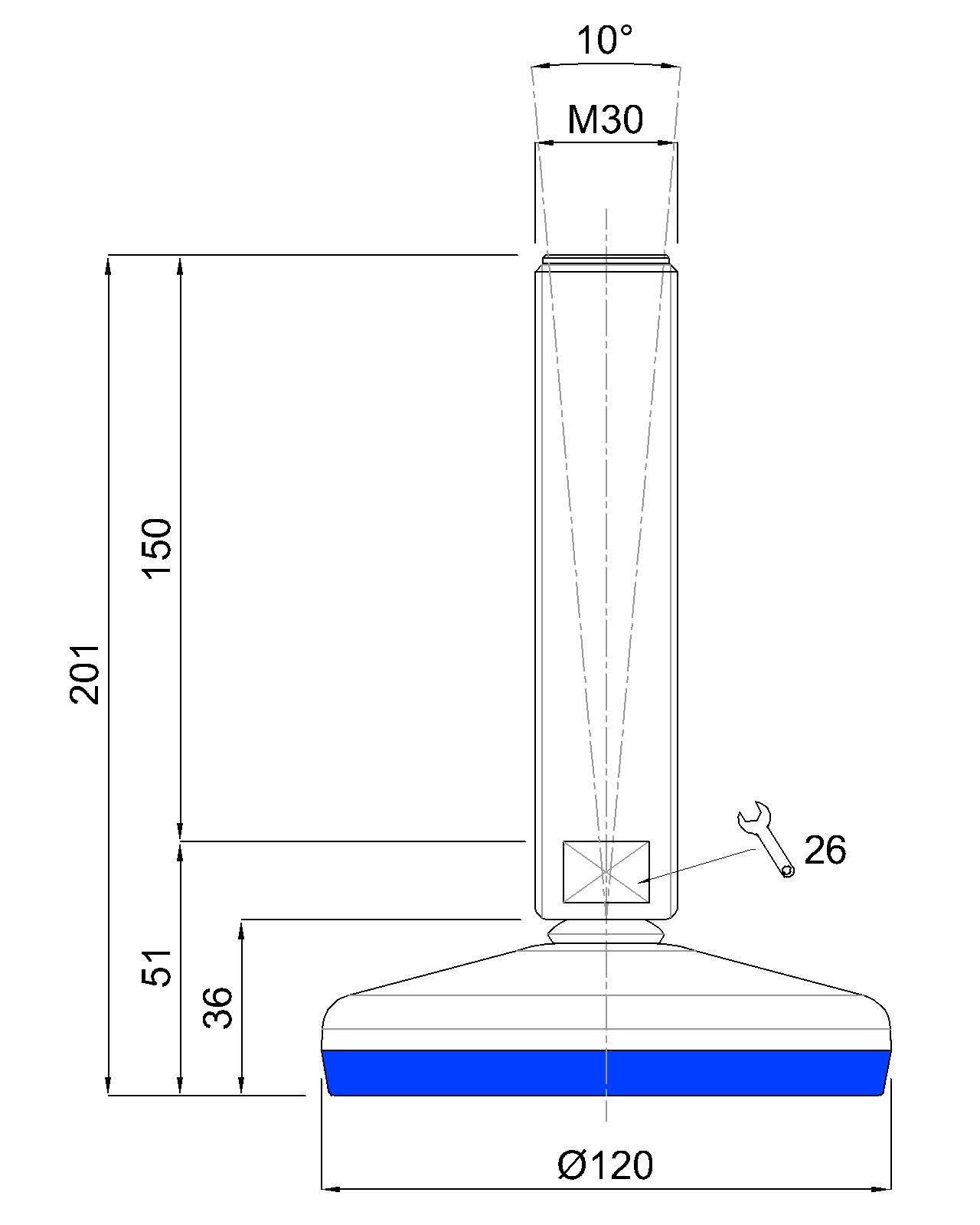

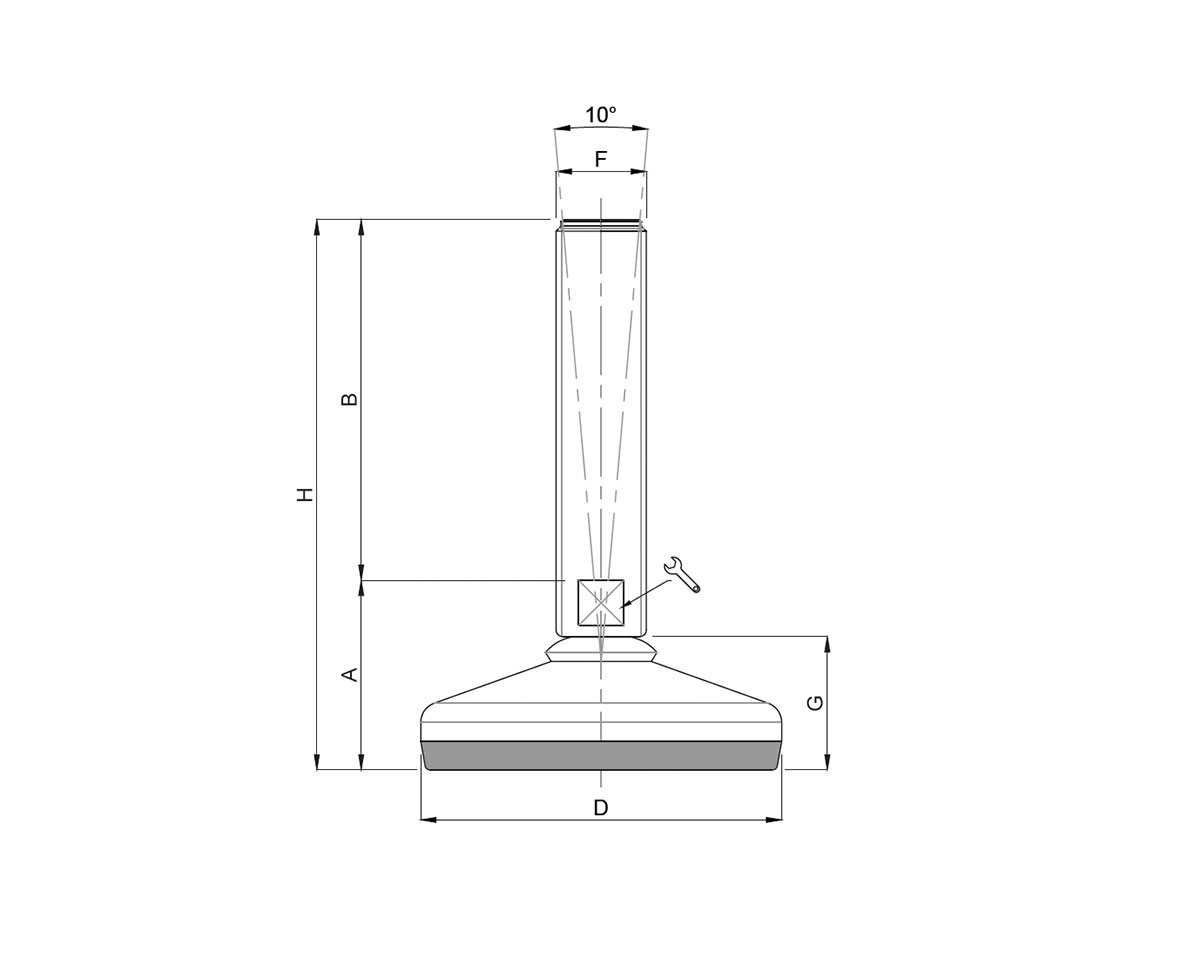

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
