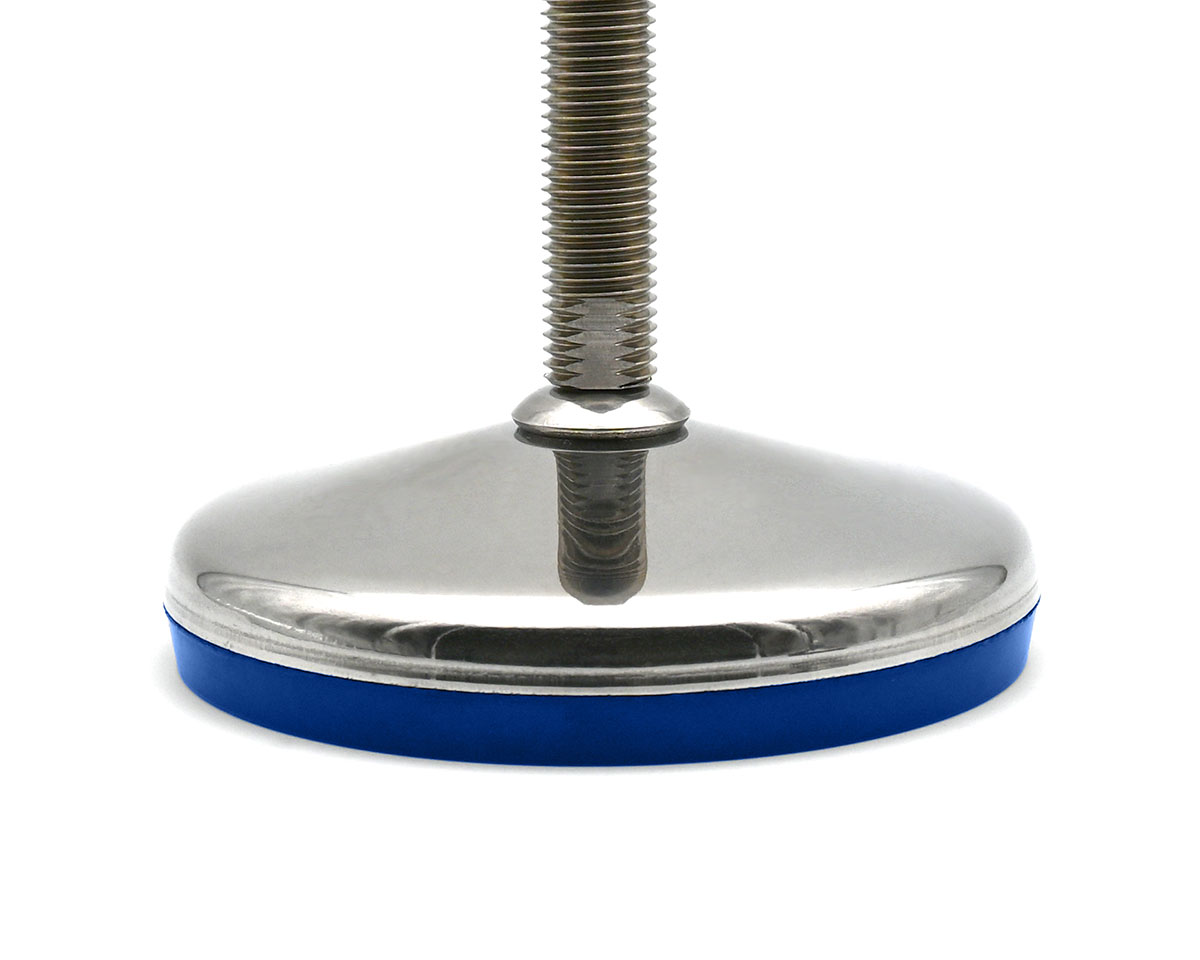

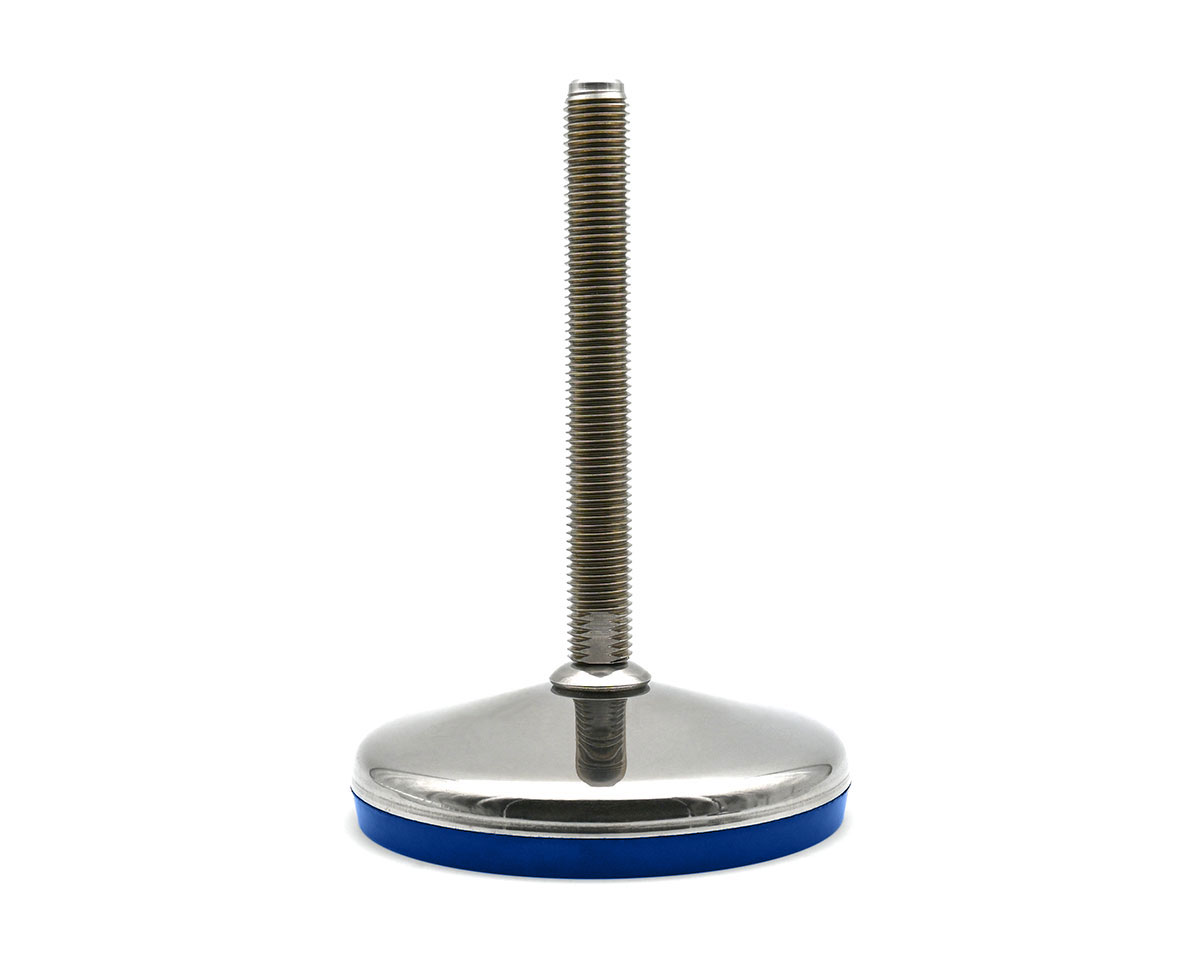

Levelling foot VULCANIZED stainless steel, Ø 120 mm, M30 x 100 mm, Hygenic, EPDM
Introducing our VULCANIZED stainless steel leveling foot: a robust solution with a 120 mm diameter and a static load capacity of 30,000 N. Designed for hygiene, featuring an EPDM anti-slip surface and 10° articulated adjustment. Ideal for precision engineering applications.
| Quantity | Price |
|---|---|
| From 1 |
€32.37*
|
| From 13 |
€30.39*
|
| From 25 |
€28.40*
|
| From 50 |
€27.01*
|
Currently sold out, Refill time: 8 days
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | EPDM blue |
| Ø range base plate (mm): | 111-130 |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 30 |
| Spindle length (mm): | 100 |
| Balancing angle: | 10° |

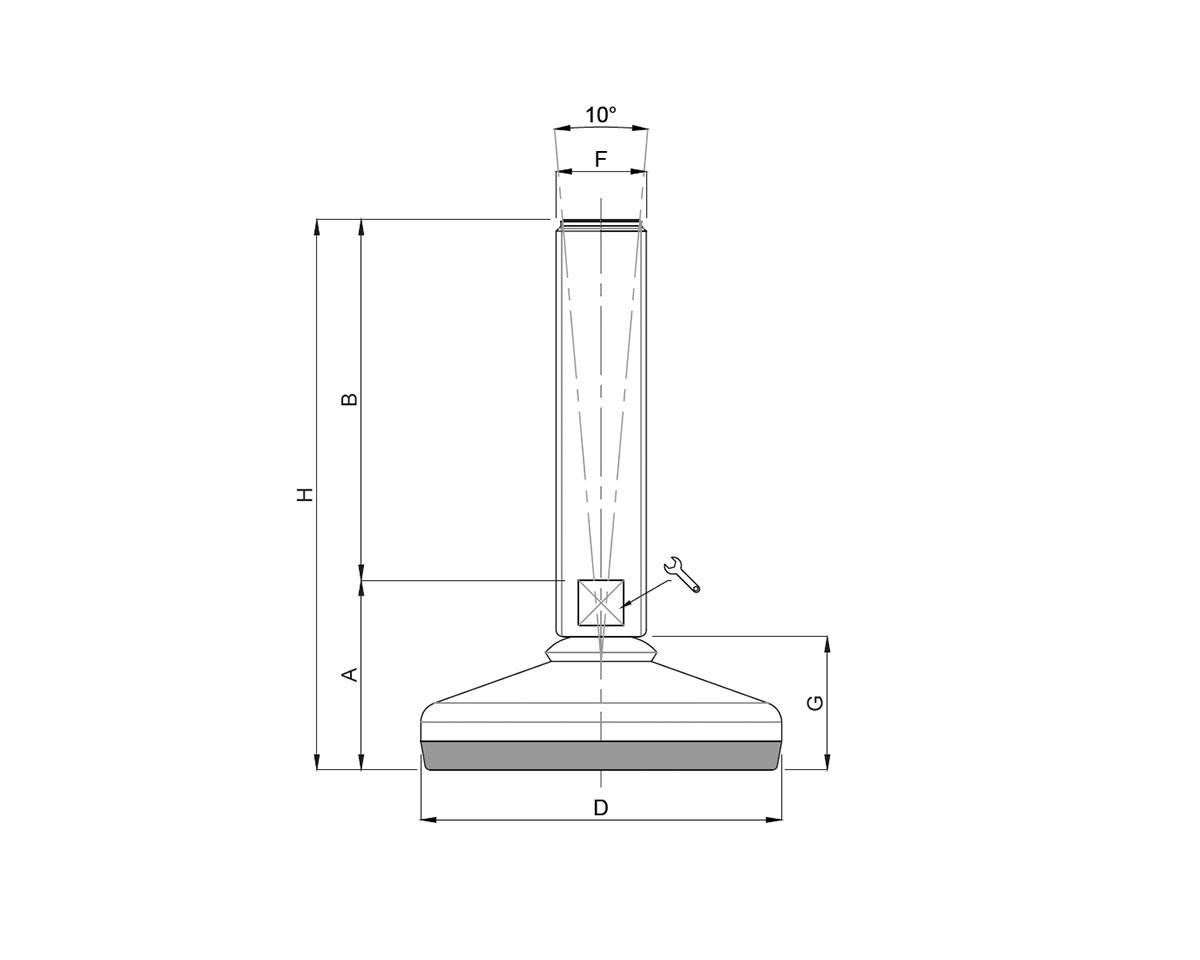

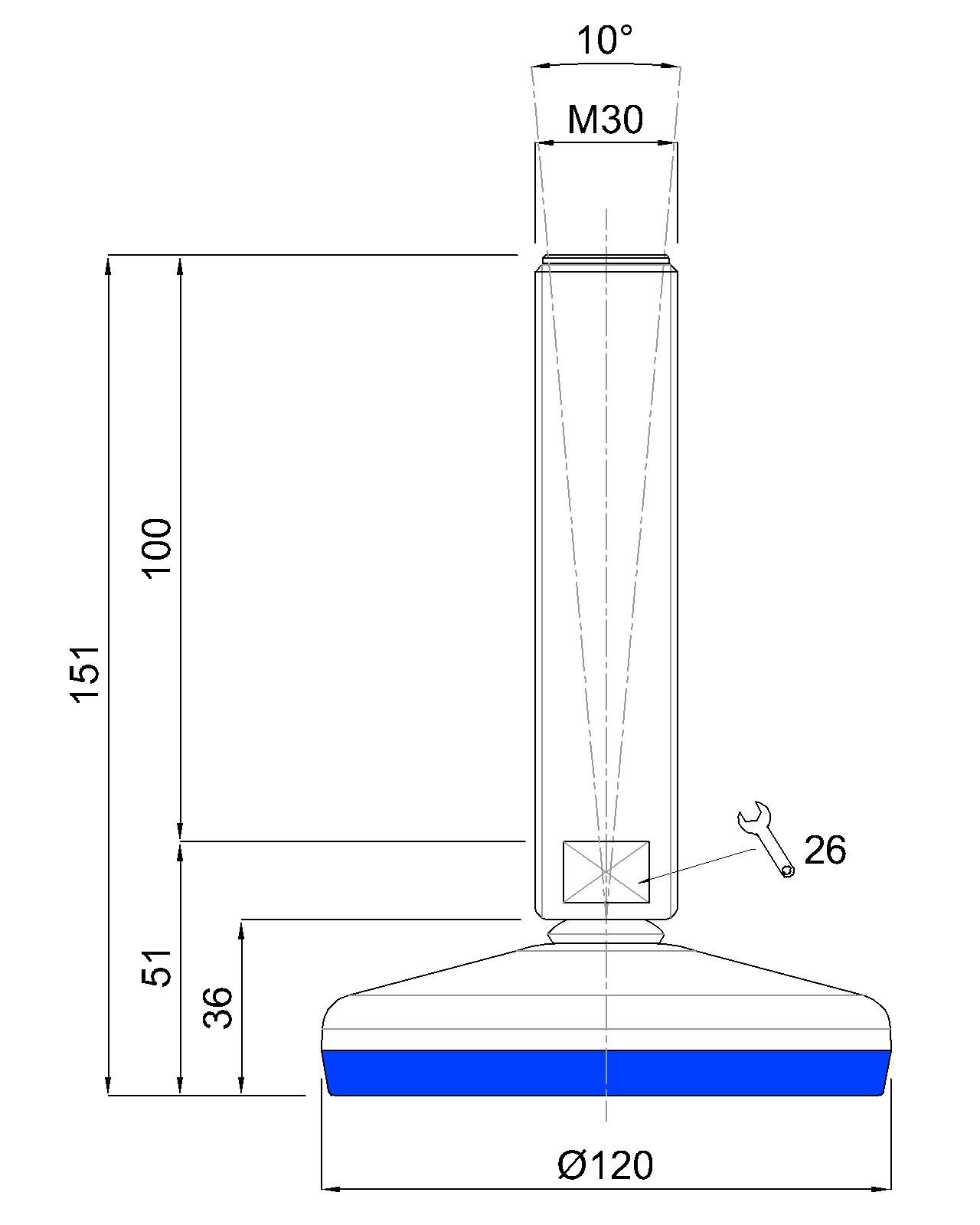

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
