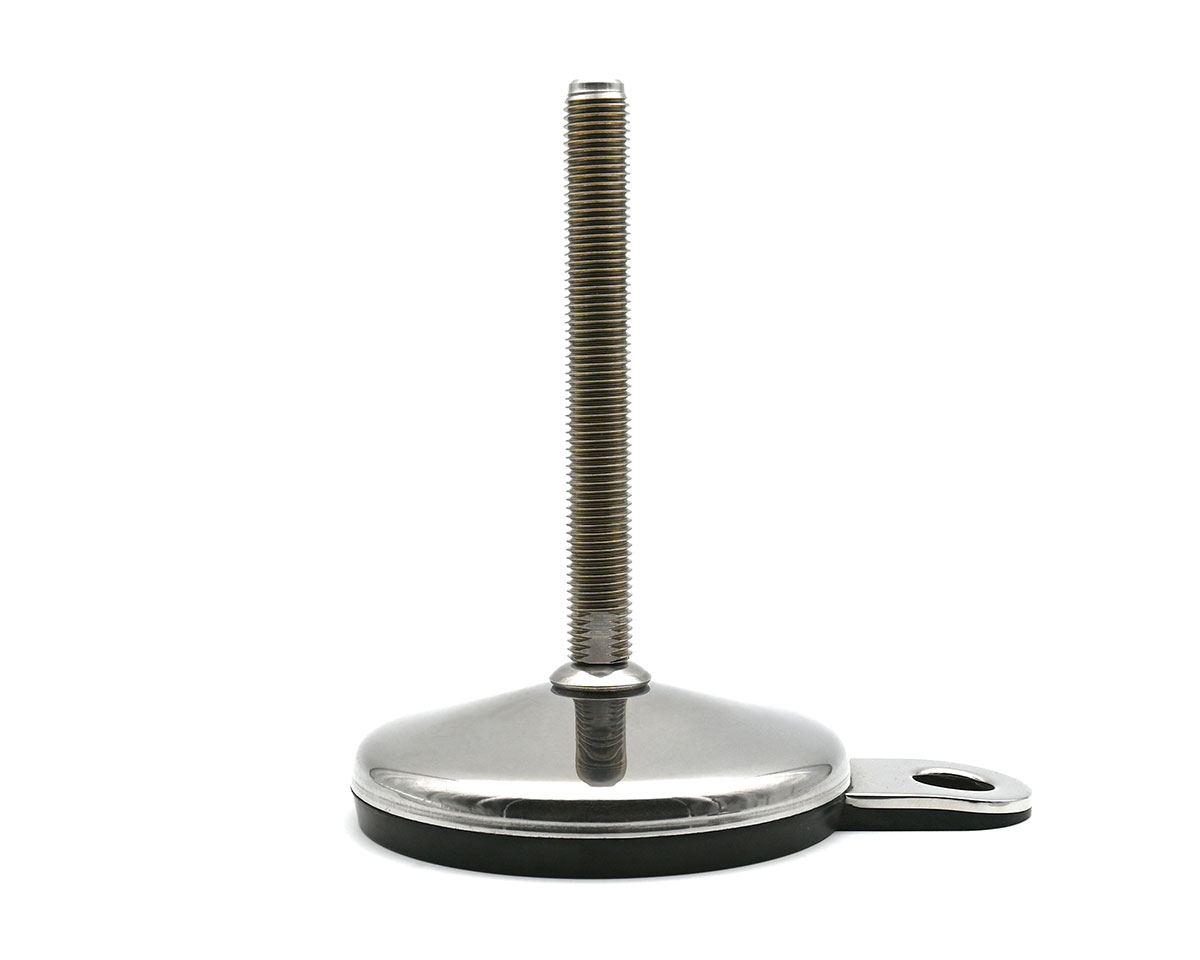

Levelling foot VULCANIZED stainless steel, Ø 100 mm, M30 x 100 mm, Hygenic, Lug, EPDM
Introducing our VULCANIZED stainless steel levelling foot, featuring a 100 mm diameter and M30 x 100 mm spindle. With a static load capacity of 15,000 N and a hygienic design, it ensures stability and cleanliness in demanding environments. The articulated screw allows for a 10° adjustment, while the EPDM anti-slip surface provides reliable grip. Ideal for engineers and manufacturers seeking durable, high-performance components.
| Quantity | Price |
|---|---|
| From 1 |
€30.35*
|
| From 13 |
€28.49*
|
| From 25 |
€26.63*
|
| From 50 |
€25.32*
|
Currently sold out, Refill time: 8 days
Product properties
| Footplate material: | Stainless steel |

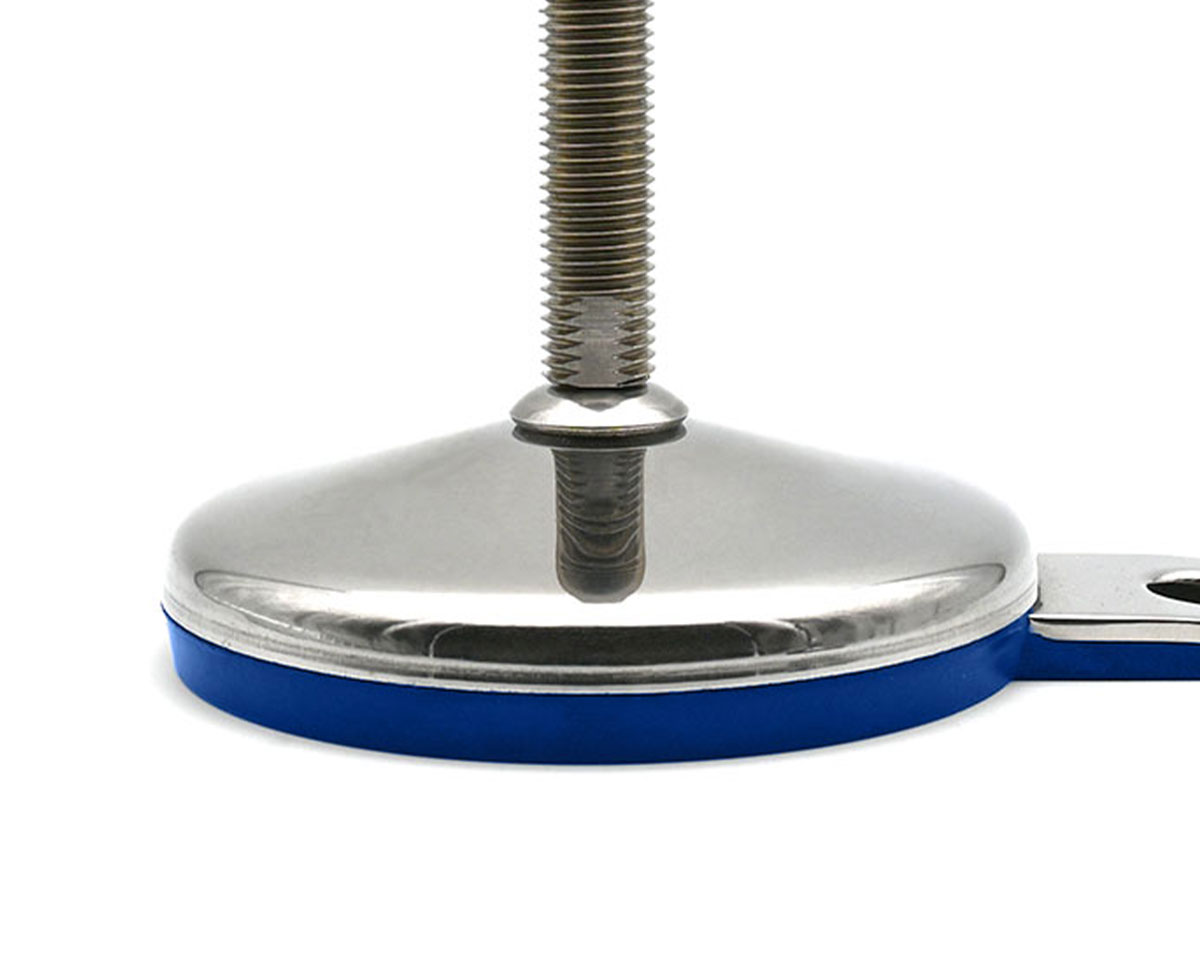

| Anti-slip: | EPDM blue |
| Ø range base plate (mm): | 91-110 |
| Ground fastening: | 1 mounting lug |
| Vibration damping: | no |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 30 |
| Spindle length (mm): | 100 |
| Balancing angle: | 10° |
| Hygiene: | No |
Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
