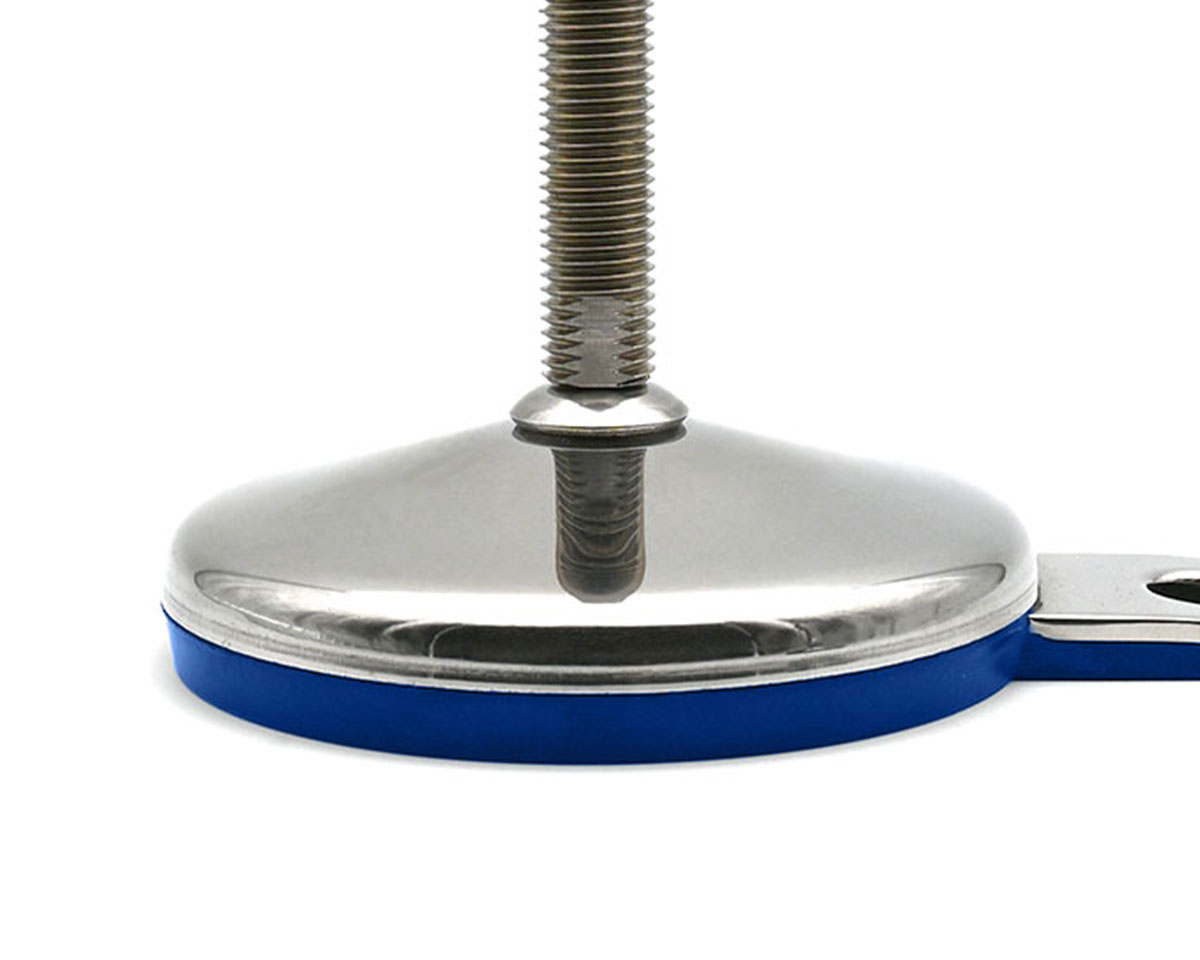

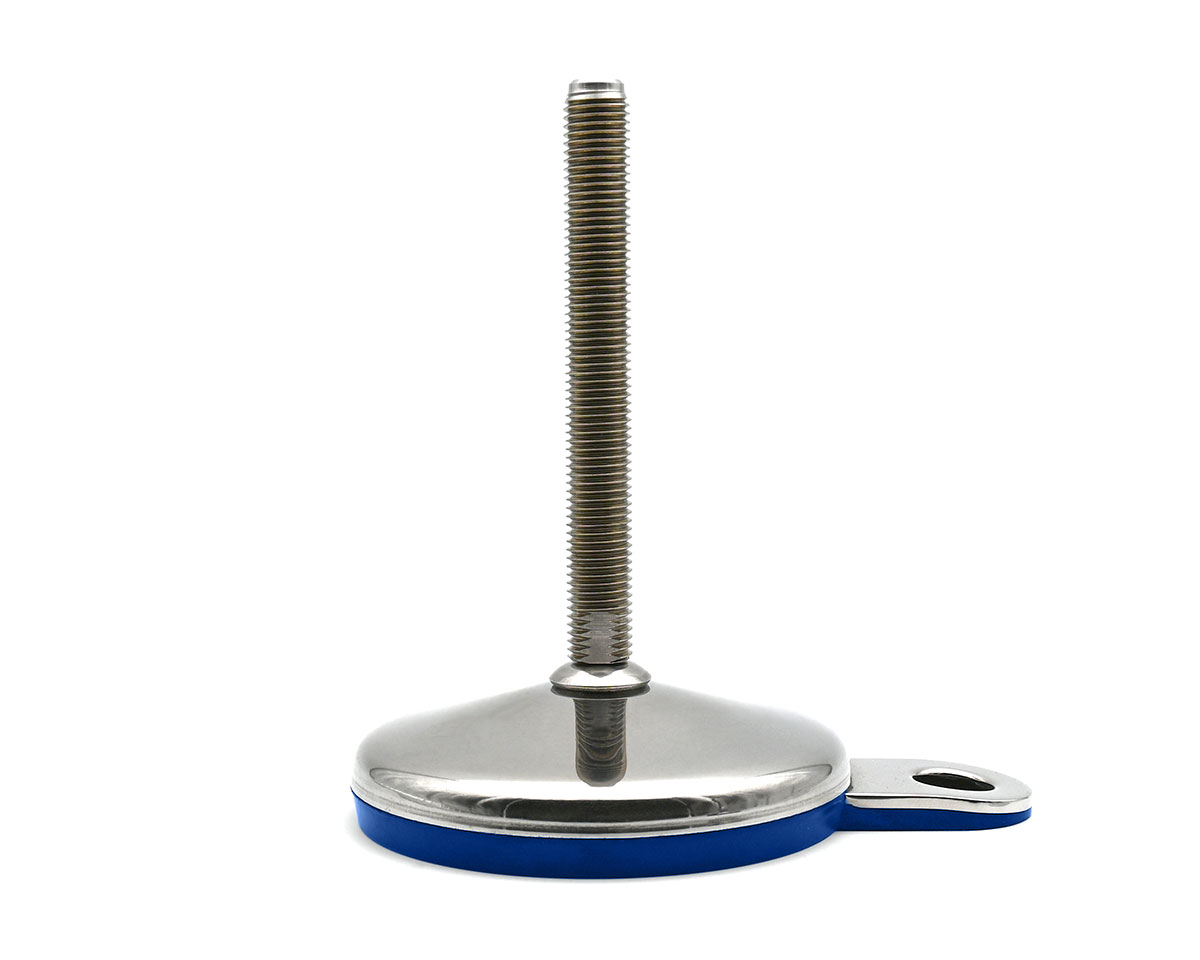

Levelling foot VULCANIZED stainless steel, Ø 100 mm, M16 x 150 mm, Hygenic, Lug, EPDM
Enhance stability with our VULCANIZED stainless steel leveling foot, featuring a 100 mm diameter, M16 x 150 mm threaded spindle, and hygienic design. Ideal for high-load applications, capable of supporting 15,000 N.
| Quantity | Price |
|---|---|
| From 1 |
€24.76*
|
| From 13 |
€23.24*
|
| From 25 |
€21.72*
|
| From 50 |
€20.66*
|
Currently sold out, Refill time: 8 days
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | EPDM blue |
| Ø range base plate (mm): | 91-110 |
| Ground fastening: | 1 mounting lug |
| Vibration damping: | no |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 16 |
| Spindle length (mm): | 150 |
| Balancing angle: | 10° |
| Hygiene: | No |
Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
