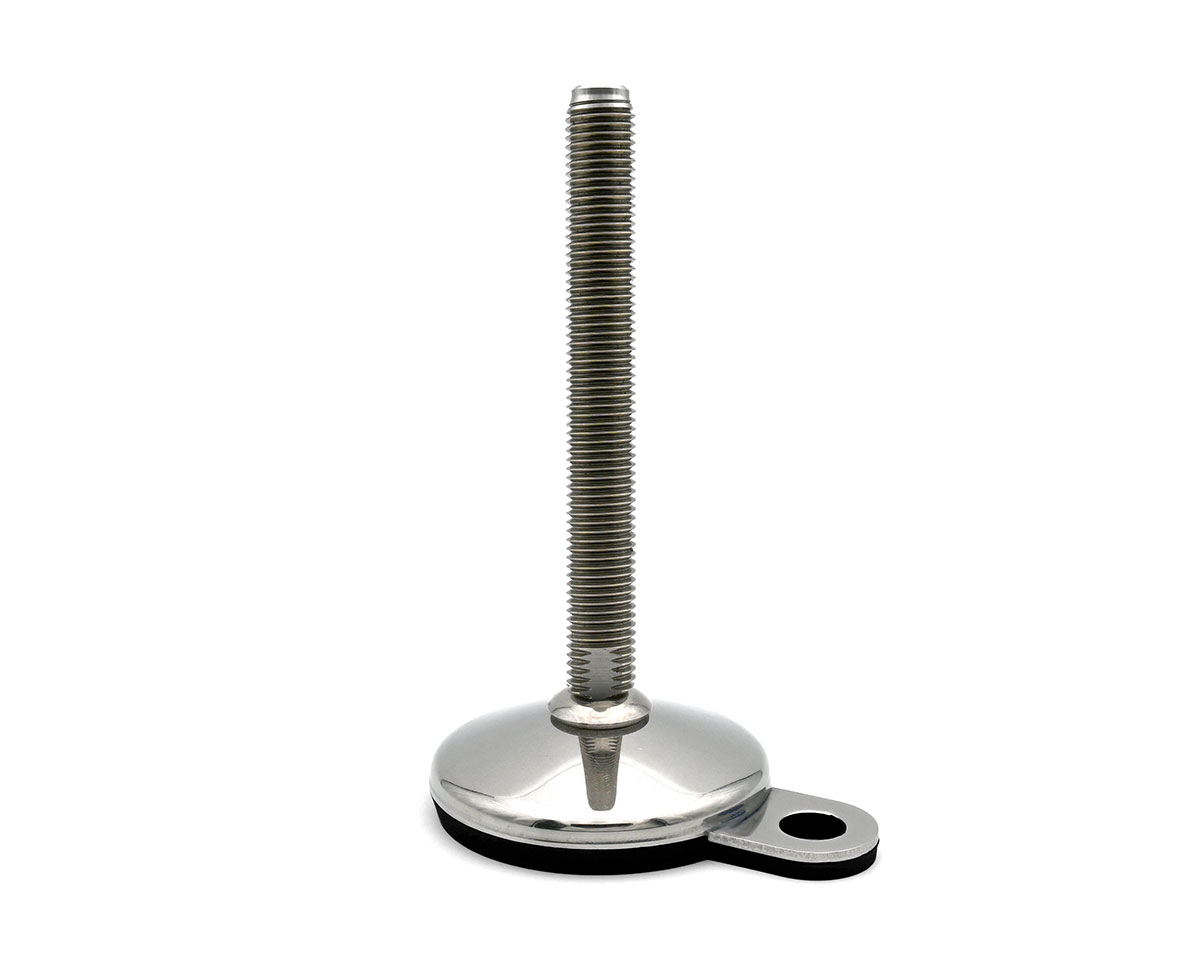

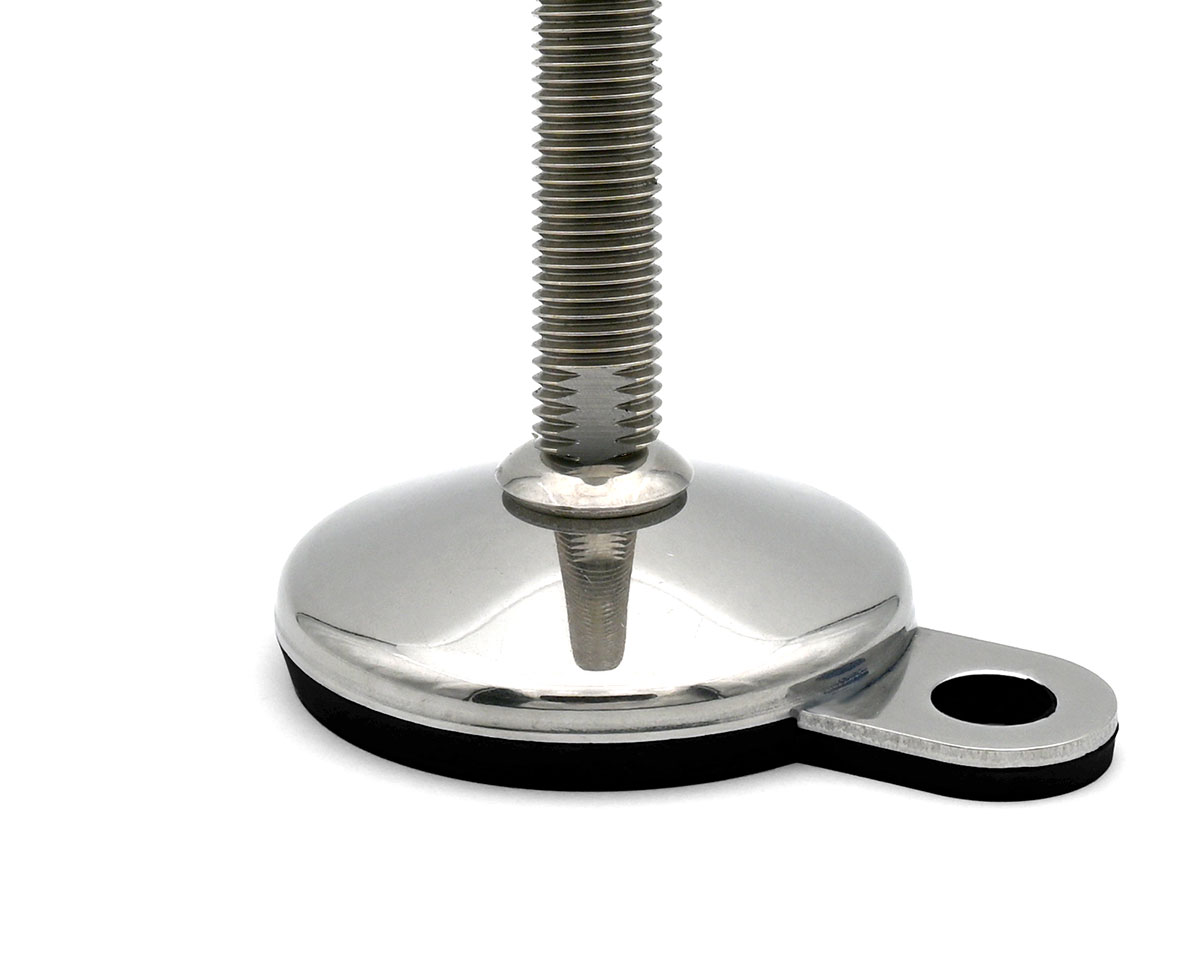

Levelling foot VULCANIZED stainless steel, Ø 60 mm, M20 x 175 mm, Hygenic, Lug, NBR
Introducing the VULCANIZED stainless steel levelling foot, engineered for precision and durability. With a 60 mm diameter and a 175 mm spindle, it ensures reliable support and hygiene with static load capacity up to 7,000 N. Ideal for demanding applications.
| Quantity | Price |
|---|---|
| From 1 |
€17.18*
|
| From 13 |
€16.14*
|
| From 25 |
€15.09*
|
| From 50 |
€14.37*
|
Currently sold out, Refill time: 8 days
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 51-70 |
| Ground fastening: | 1 mounting lug |
| Vibration damping: | no |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 20 |
| Spindle length (mm): | 175 |
| Balancing angle: | 10° |
| Hygiene: | No |
| Brake: | No |
| Steerable: | no |

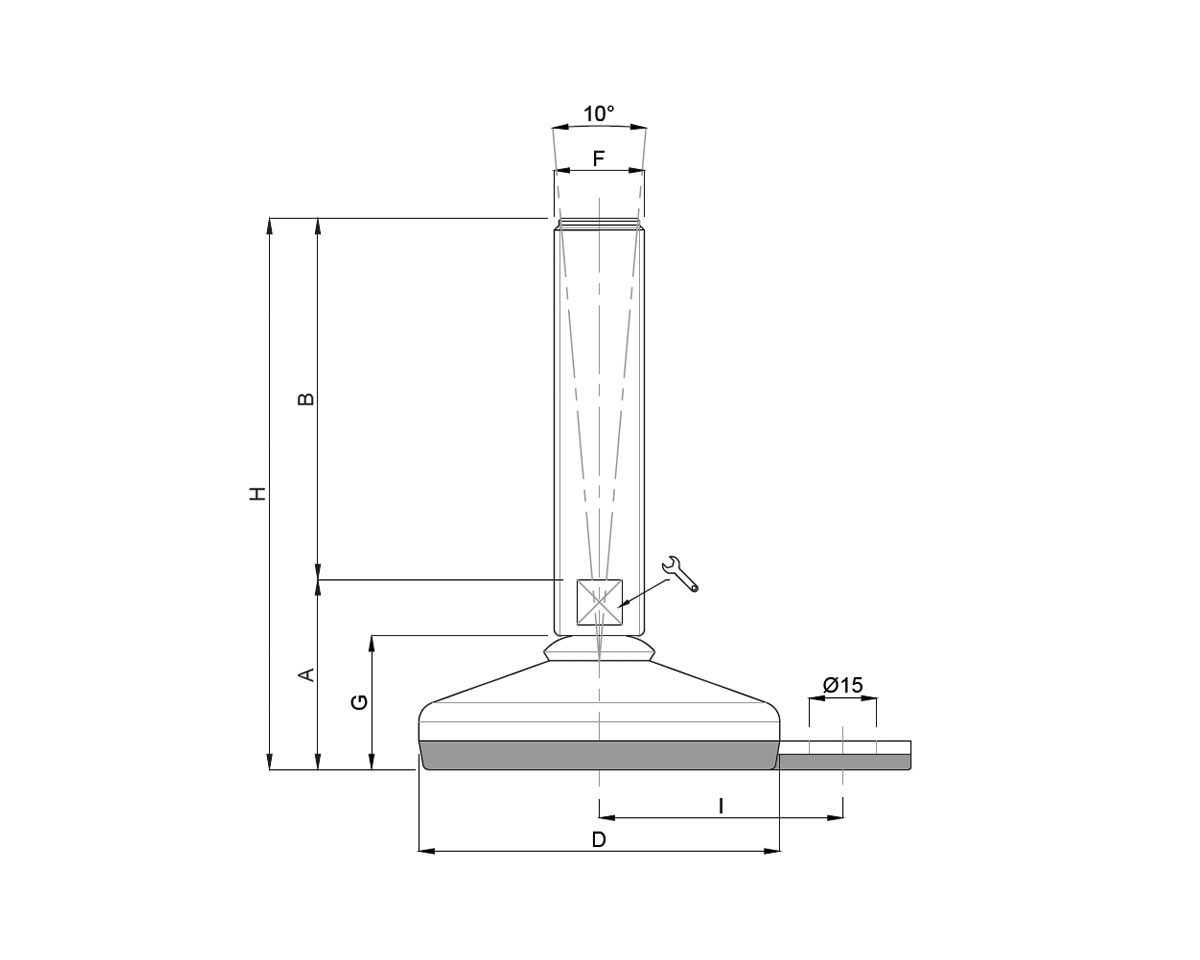

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
