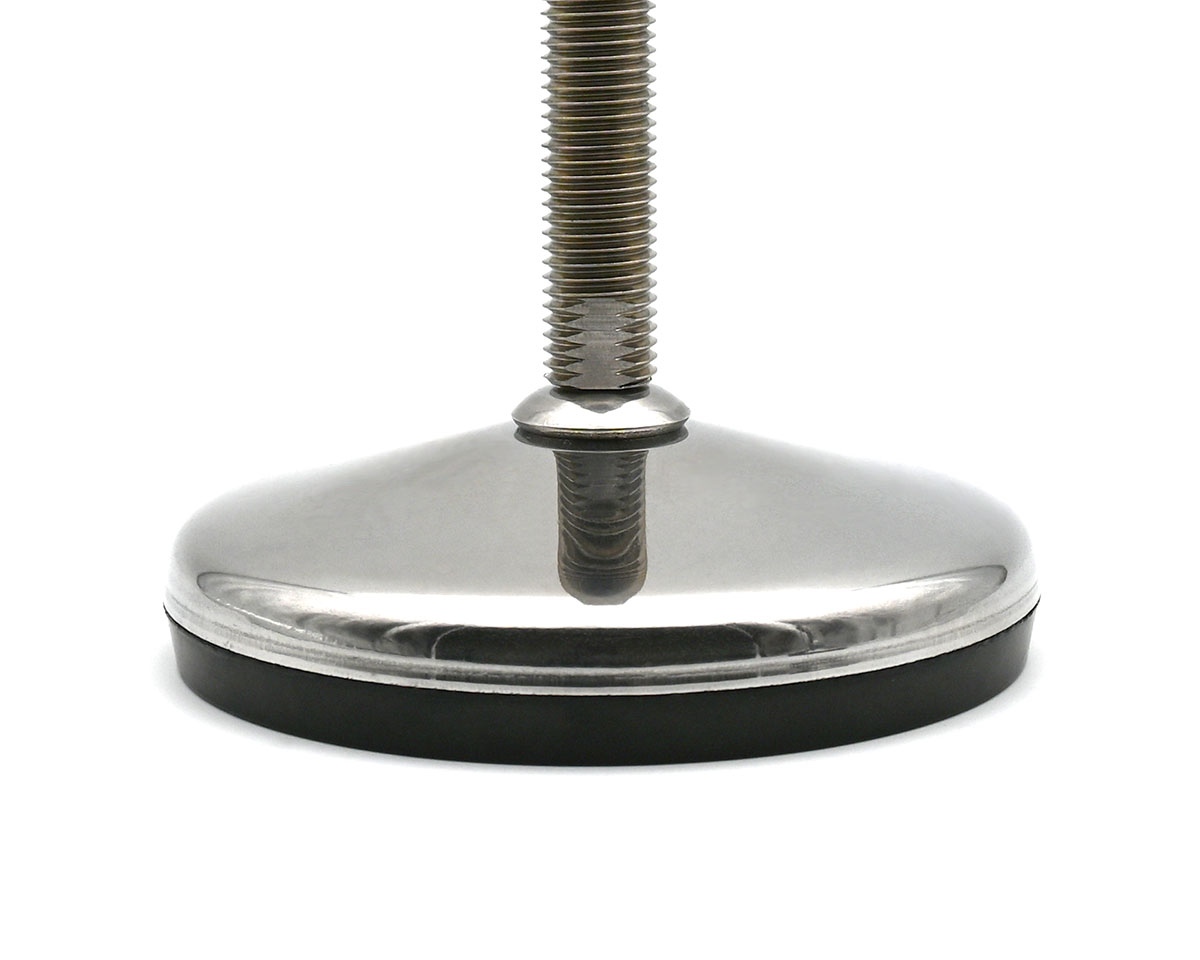

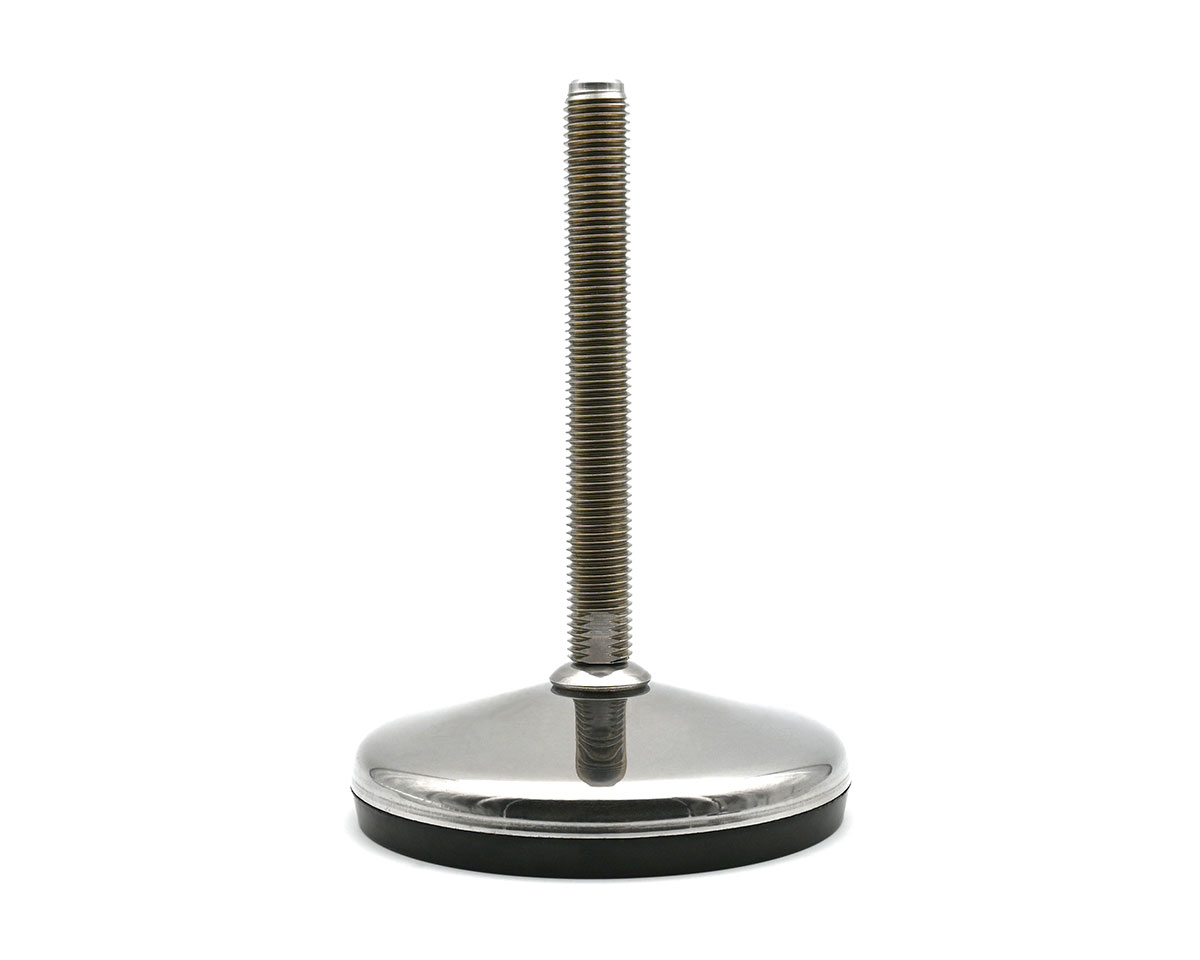

Levelling foot VULCANIZED stainless steel, Ø 120 mm, M20 x 150 mm, Hygenic, NBR
Ensure stability and hygiene with our VULCANIZED stainless steel levelling foot, featuring a 120 mm diameter and M20 x 150 mm spindle, capable of supporting static loads up to 30,000 N.
| Quantity | Price |
|---|---|
| From 1 |
€26.91*
|
| From 13 |
€25.28*
|
| From 25 |
€23.65*
|
| From 50 |
€22.51*
|
Currently sold out, Refill time: 8 days
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 111-130 |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 20 |
| Spindle length (mm): | 150 |
| Balancing angle: | 10° |

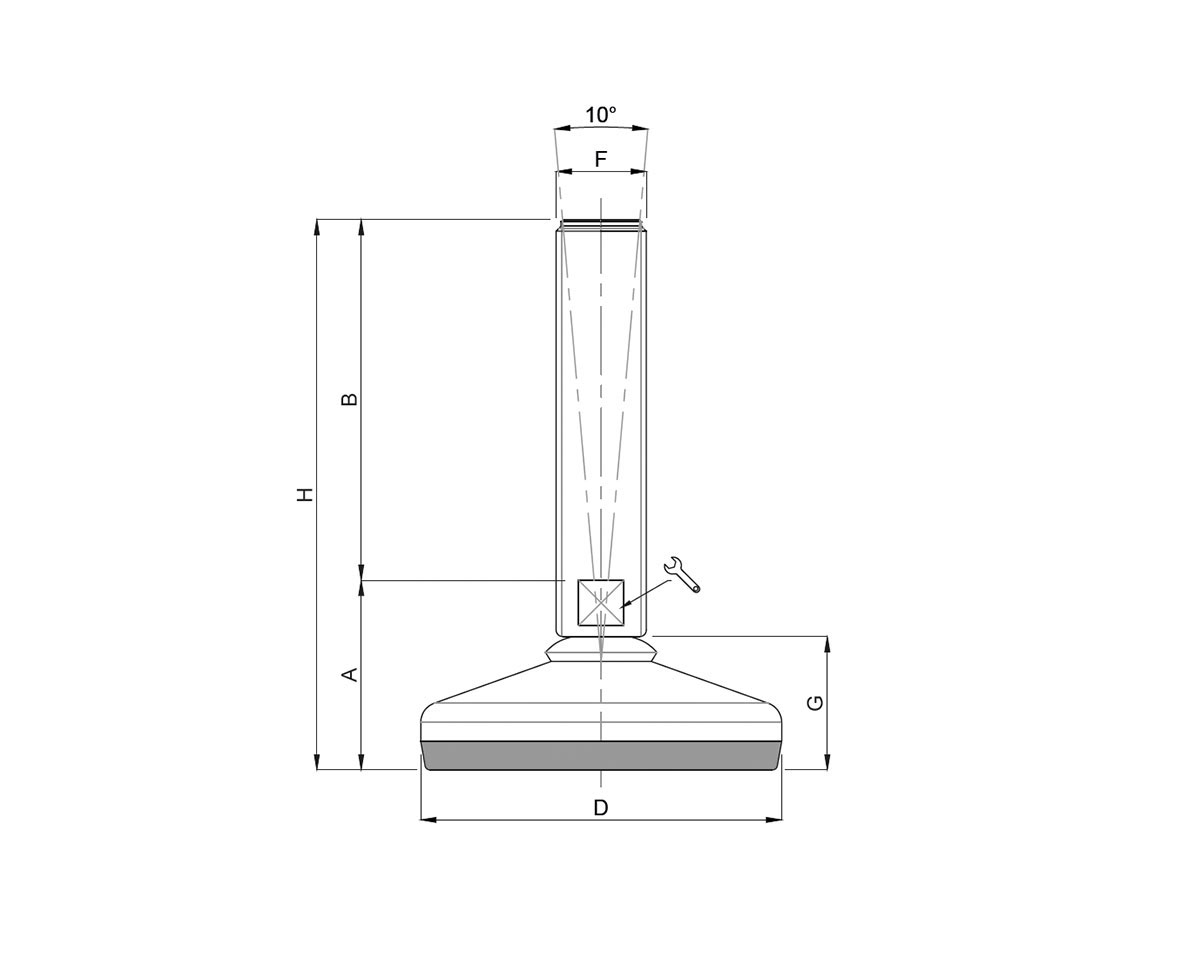

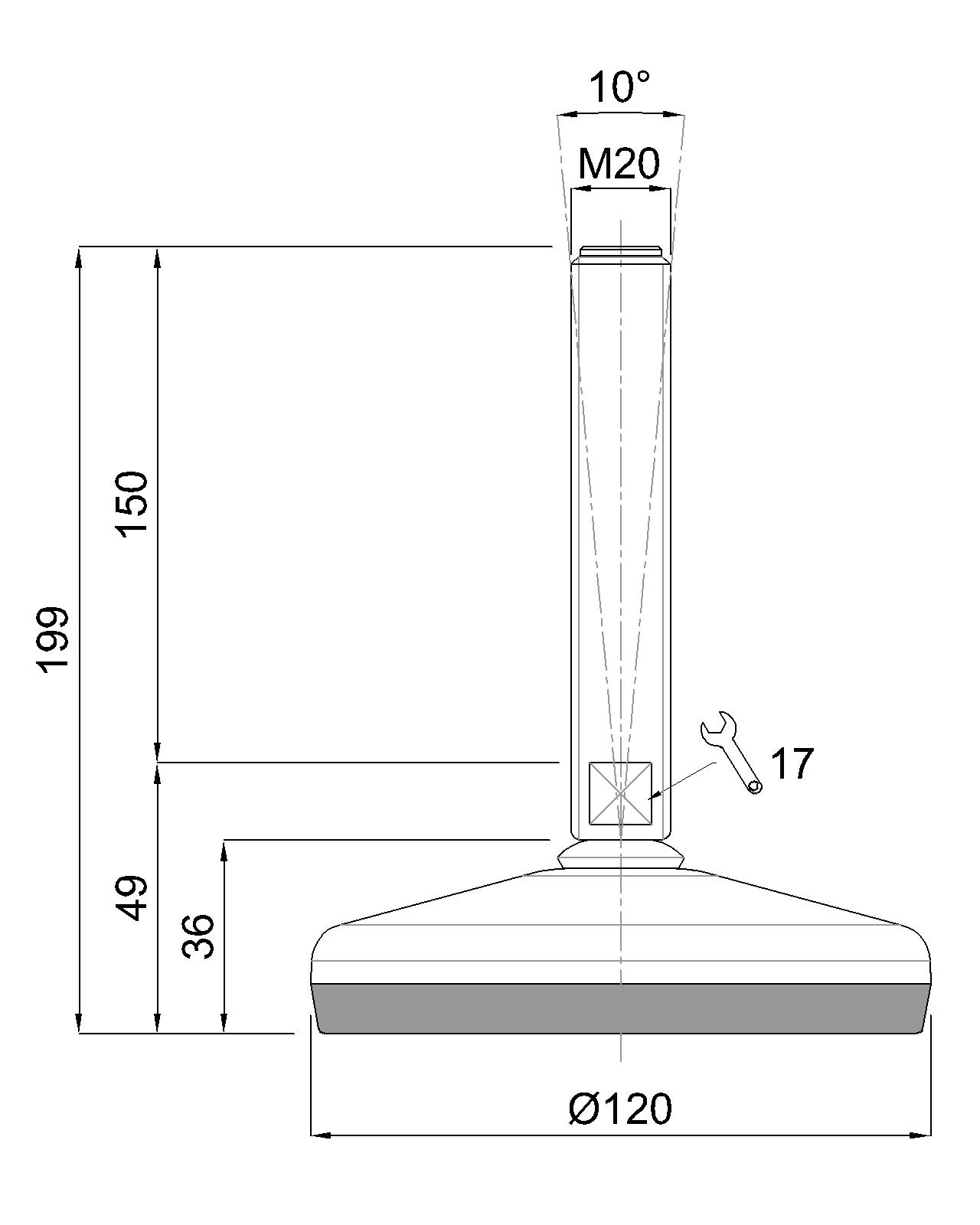

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
