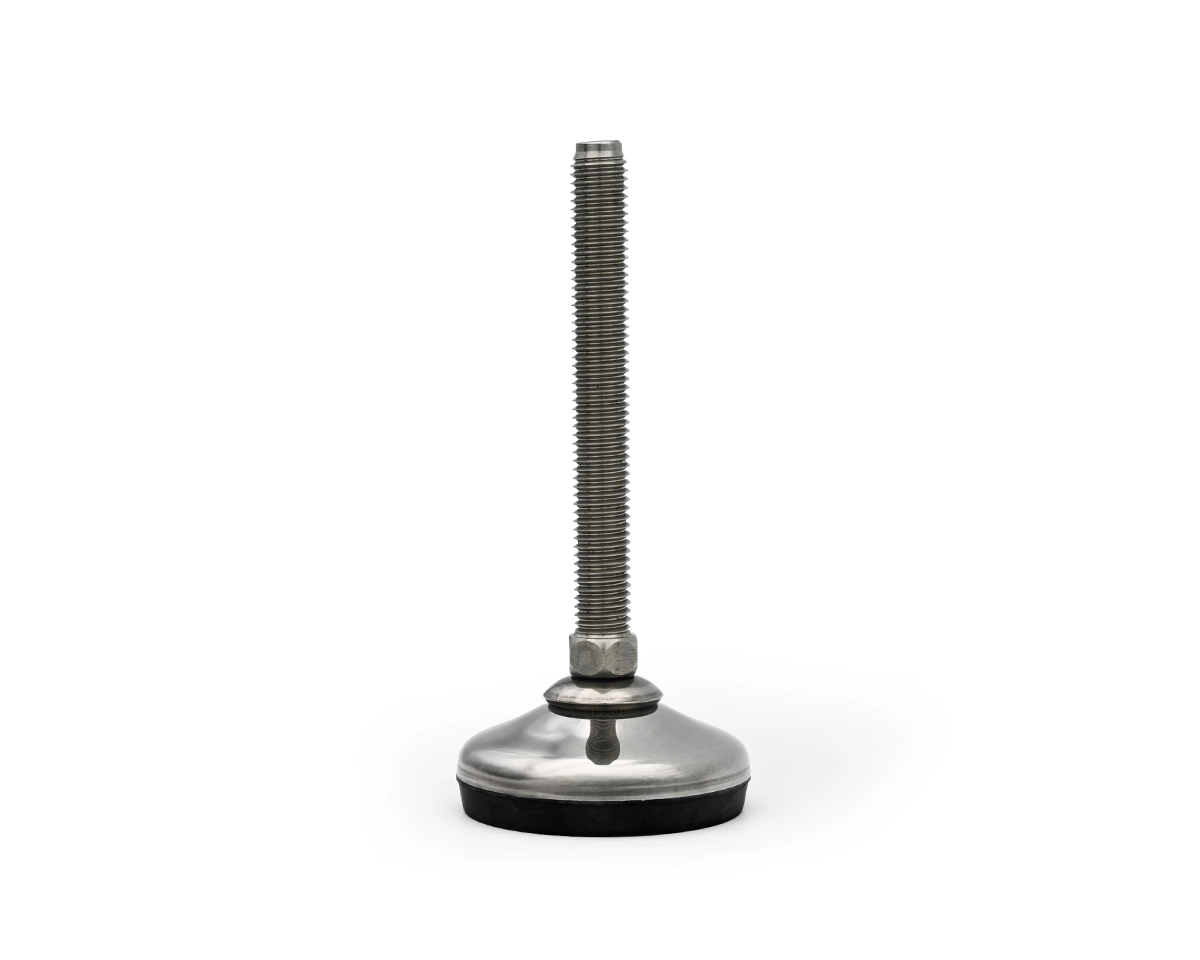

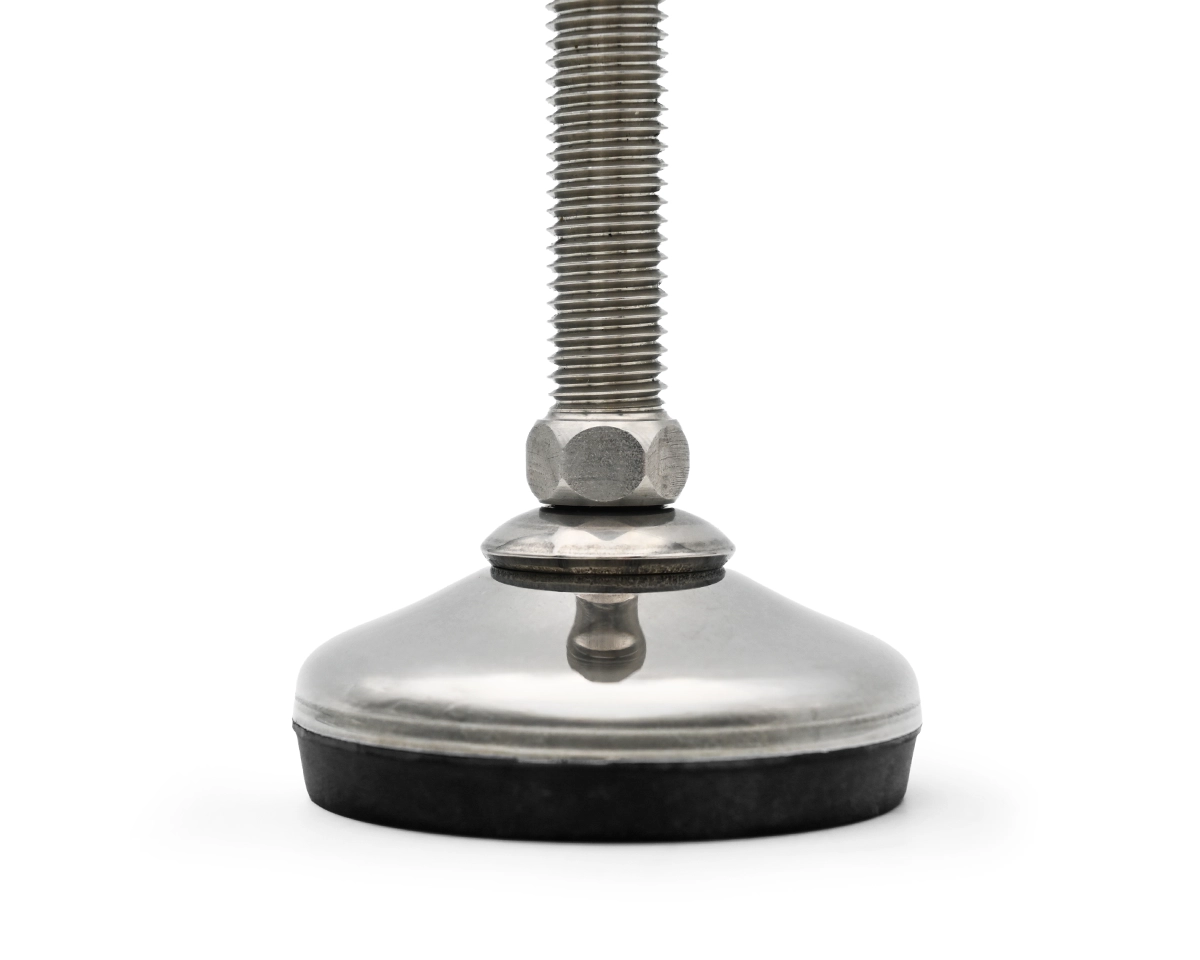

Levelling foot VULCANIZED stainless steel, Ø 50 mm, M12 x 125 mm, Hygenic, NBR
Introducing our hygienic vulcanized stainless steel leveling foot, designed for precision and stability. With a static load capacity of 4,000 N and articulated screw adjustment up to 10°, this versatile component ensures optimal support and reliability in demanding environments.
| Quantity | Price |
|---|---|
| From 1 |
€9.12*
|
| From 13 |
€8.57*
|
| From 25 |
€8.02*
|
| From 50 |
€7.63*
|
Currently sold out, Refill time: 8 days
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 41-50 |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 12 |
| Spindle length (mm): | 125 |
| Balancing angle: | 10° |
Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
