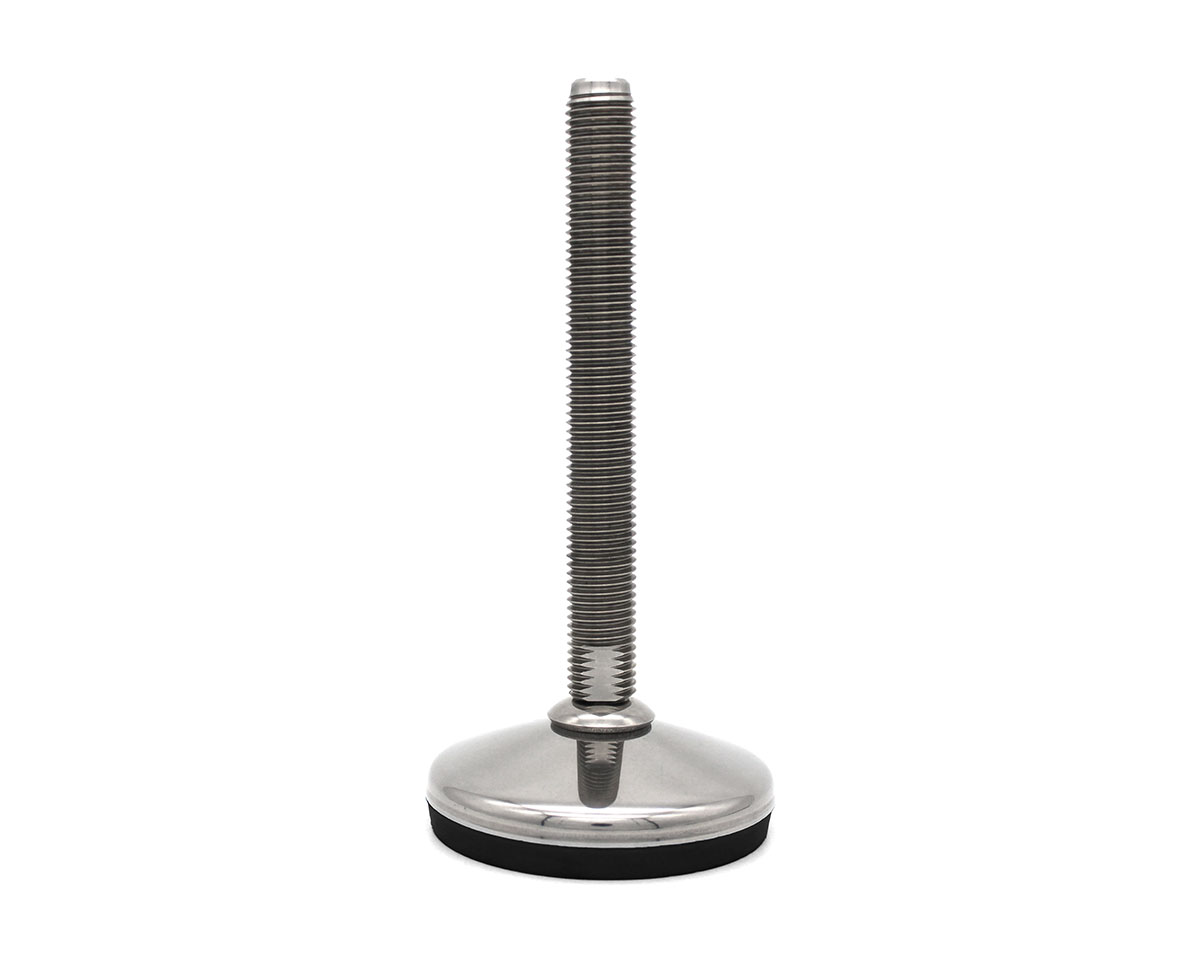

Levelling foot VULCANIZED stainless steel, Ø 80 mm, M10 x 75 mm, Hygenic, NBR
Introducing the VULCANIZED stainless steel leveling foot, featuring an 80 mm diameter and M10 x 75 mm threaded spindle. Engineered with a hygienic design and antislip NBR support, it withstands static loads of up to 10,000 N, ensuring reliability and stability in demanding environments.
| Quantity | Price |
|---|---|
| From 1 |
€12.94*
|
| From 13 |
€12.15*
|
| From 25 |
€11.37*
|
| From 50 |
€10.82*
|
Currently sold out, Refill time: 8 days
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 71-90 |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 10 |
| Spindle length (mm): | 75 |
| Balancing angle: | 10° |

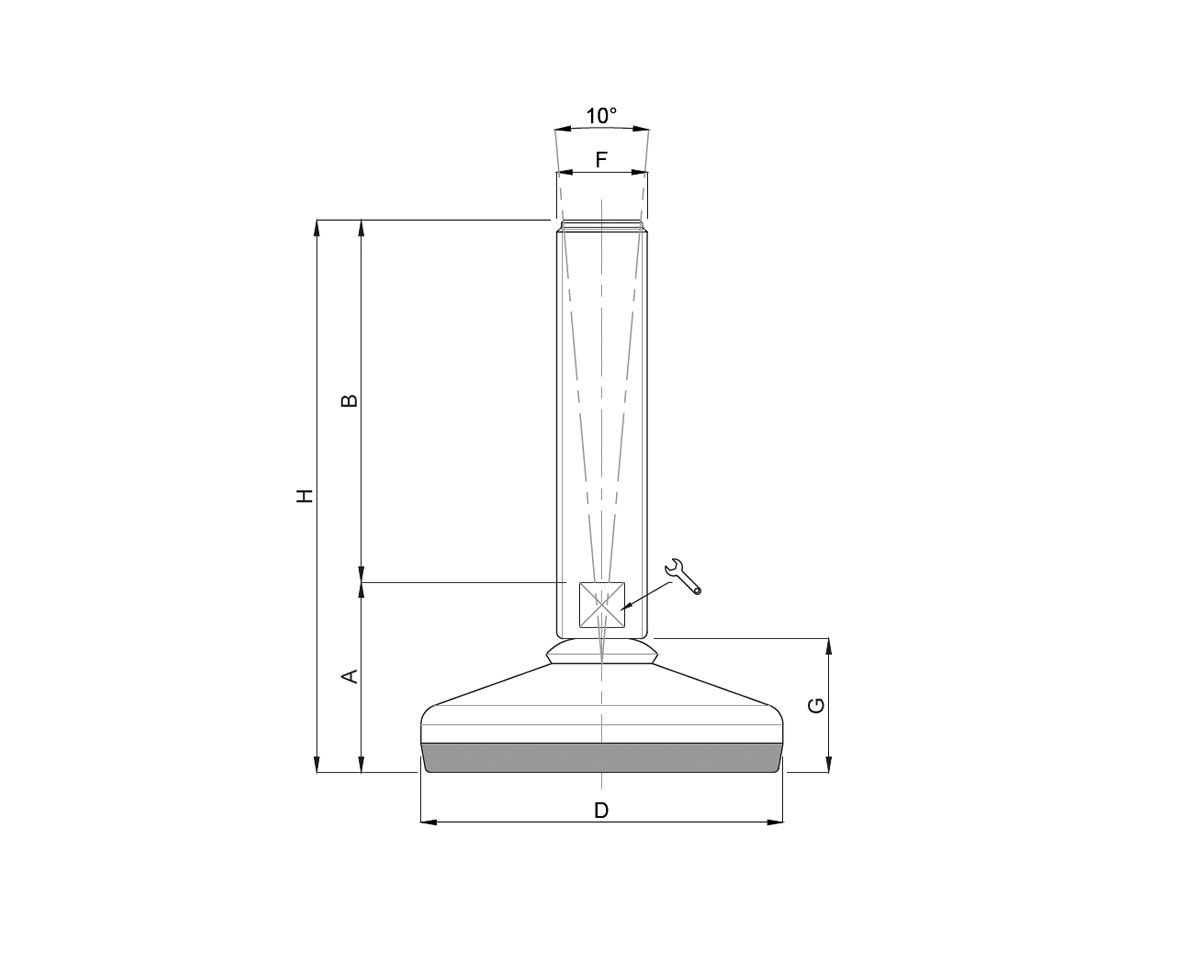

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
