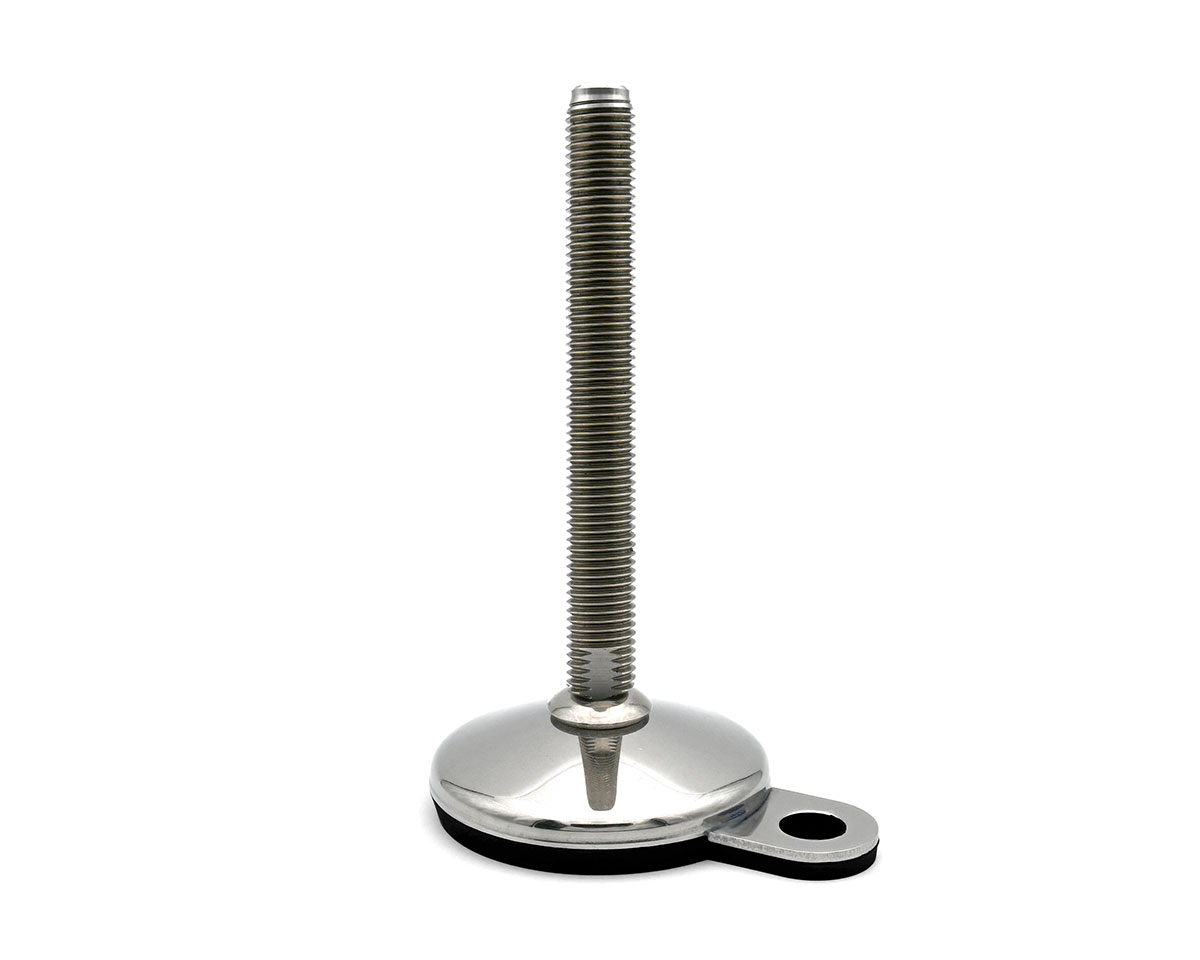

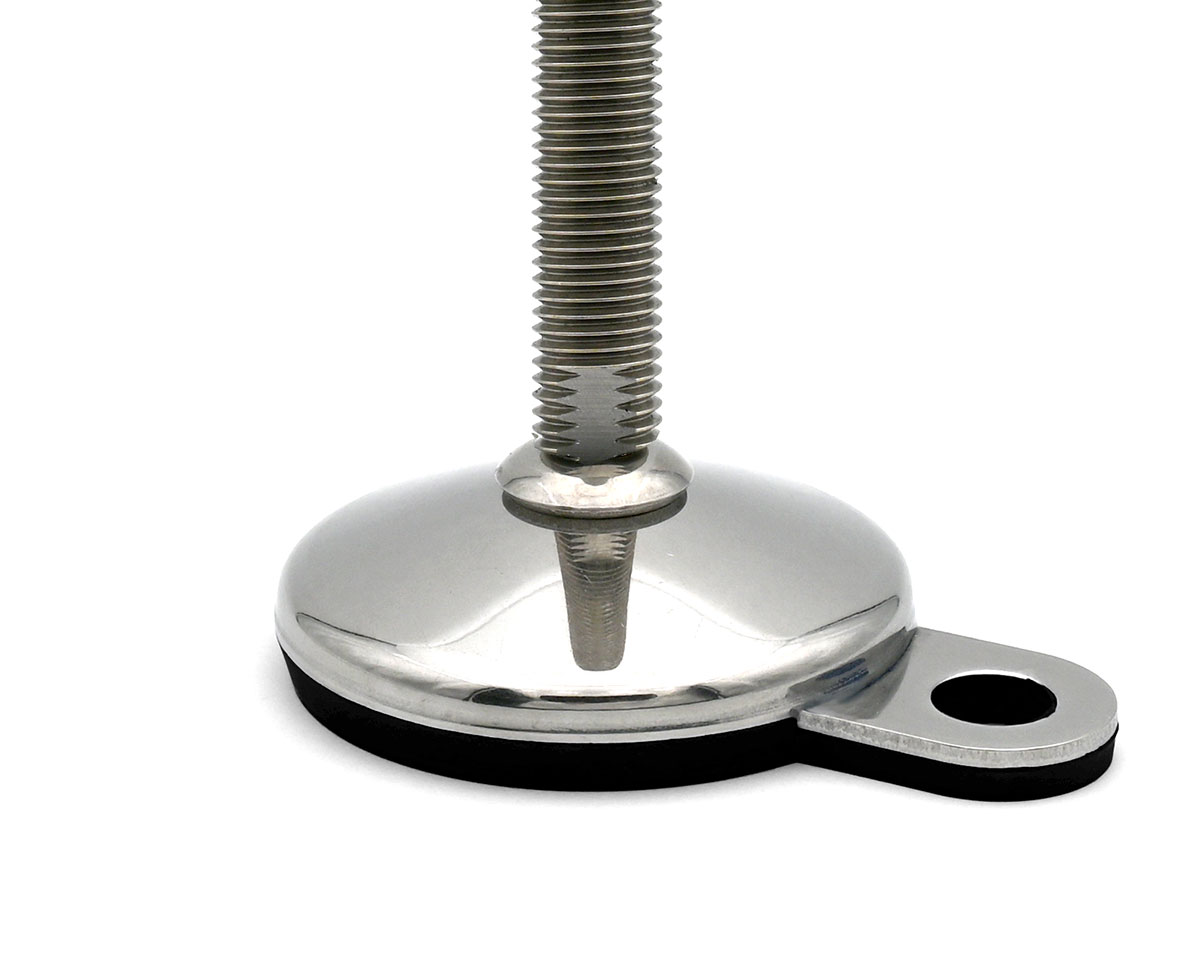

Levelling foot VULCANIZED stainless steel, Ø 80 mm, M20 x 100 mm, Hygenic, Lug, NBR
Optimize stability and hygiene with our VULCANIZED stainless steel levelling foot. Features a 80 mm diameter, M20 x 100 mm threaded spindle, 10° articulation, and black NBR anti-slip design.
| Quantity | Price |
|---|---|
| From 1 |
€18.83*
|
| From 13 |
€17.69*
|
| From 25 |
€16.54*
|
| From 50 |
€15.75*
|
Currently sold out, Refill time: 8 days
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 71-90 |
| Ground fastening: | 1 mounting lug |
| Vibration damping: | no |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 20 |
| Spindle length (mm): | 100 |
| Balancing angle: | 10° |
| Hygiene: | No |

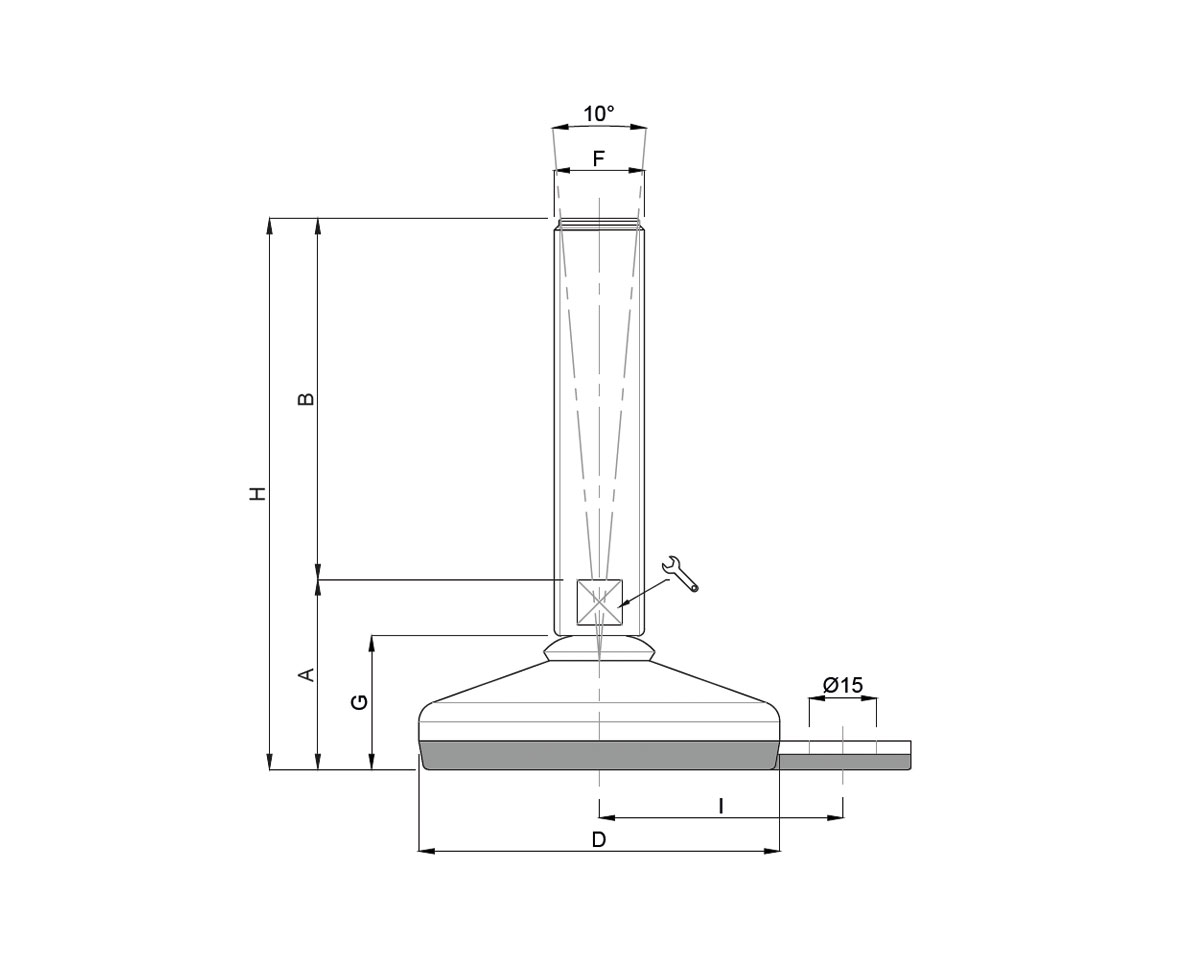

Technical drawing
