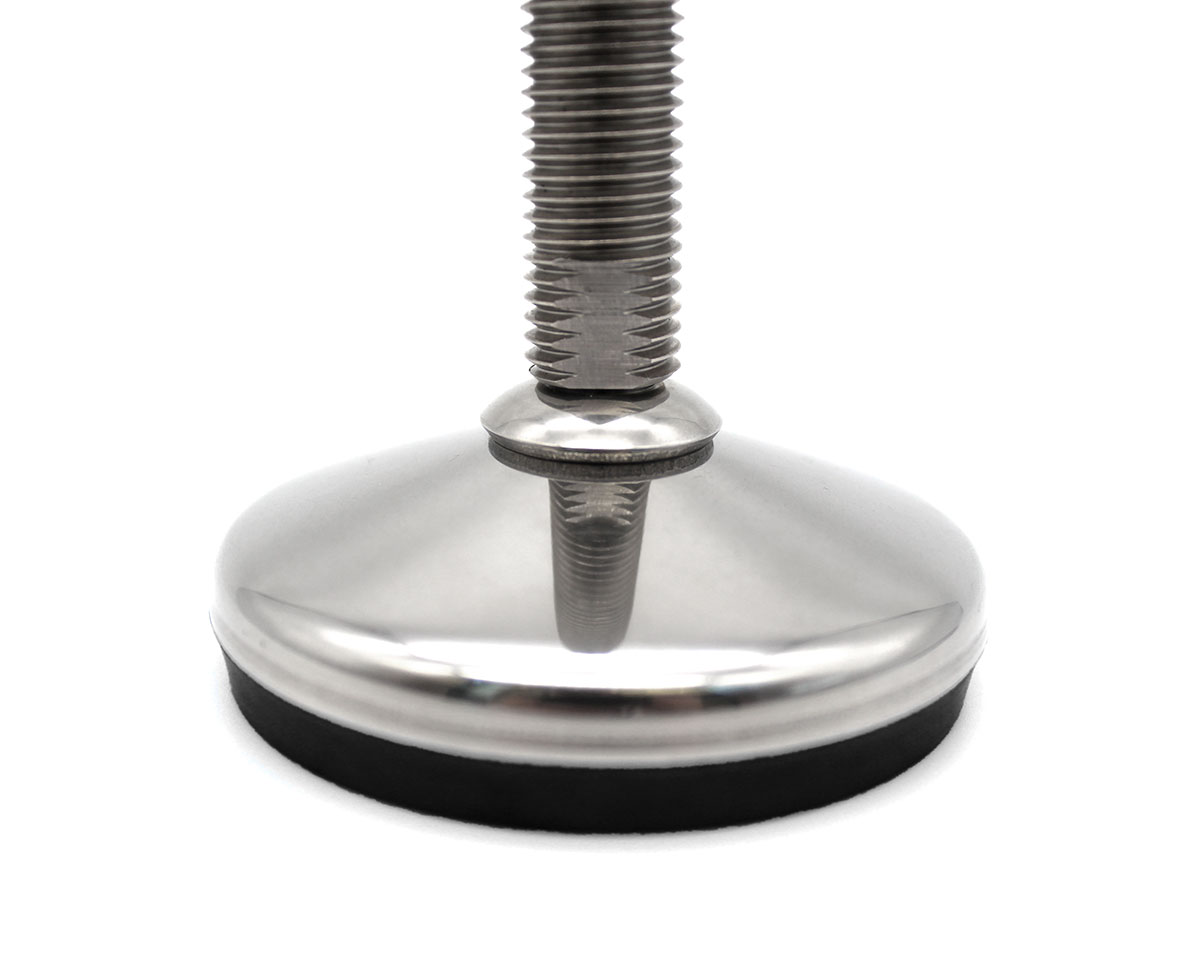

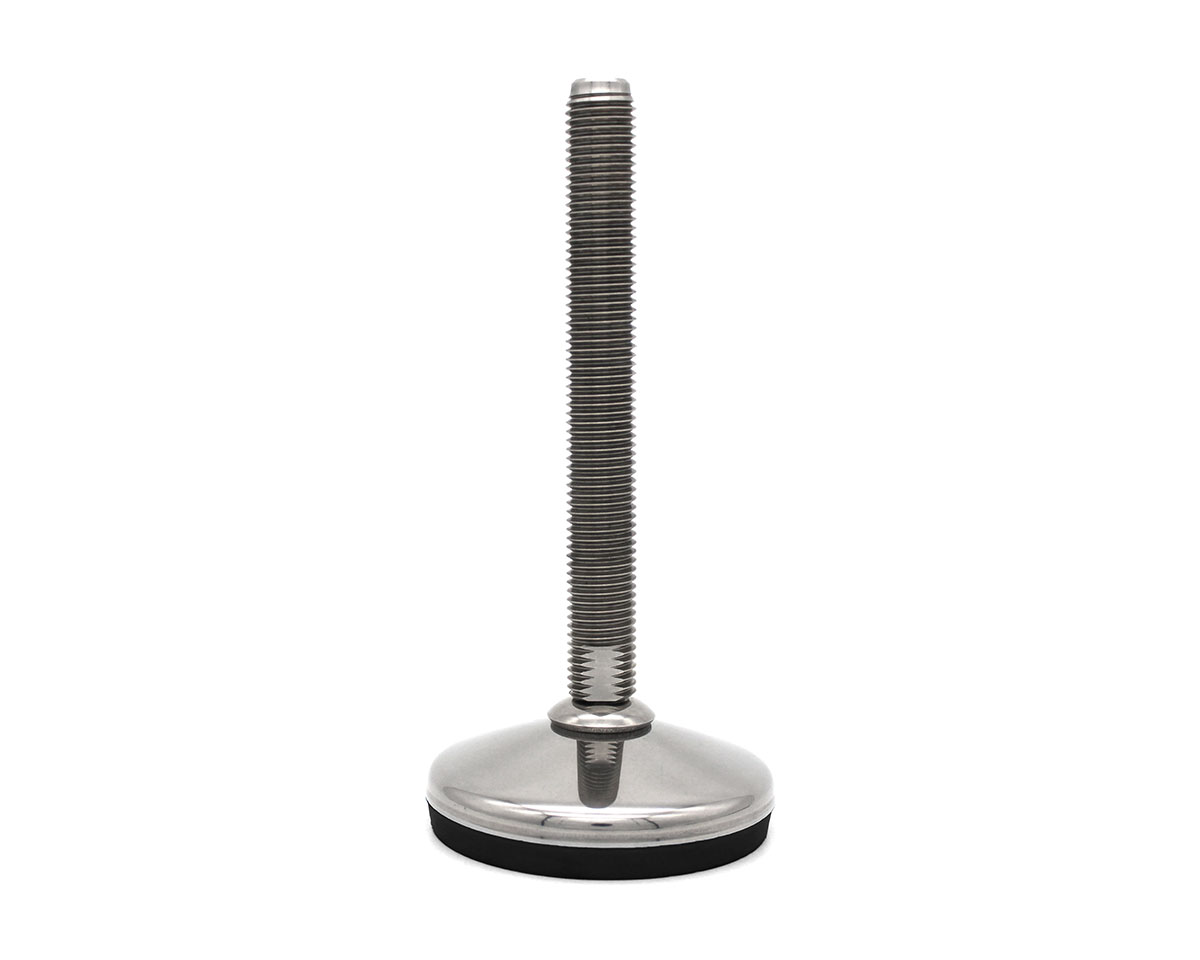

Levelling foot VULCANIZED stainless steel, Ø 80 mm, M24 x 75 mm, Hygenic, NBR
Introducing our VULCANIZED Stainless Steel Leveling Foot: engineered for enhanced stability with a 80 mm diameter and M24 x 75 mm threaded spindle. Designed for hygienic applications, it features a robust anti-slip NBR pad and can support static loads up to 10,000 N, while accommodating a 10° adjustment angle.
| Quantity | Price |
|---|---|
| From 1 |
€16.01*
|
| From 13 |
€15.04*
|
| From 25 |
€14.07*
|
| From 50 |
€13.39*
|
Currently sold out, Refill time: 8 days
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 71-90 |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 24 |
| Spindle length (mm): | 75 |
| Balancing angle: | 10° |

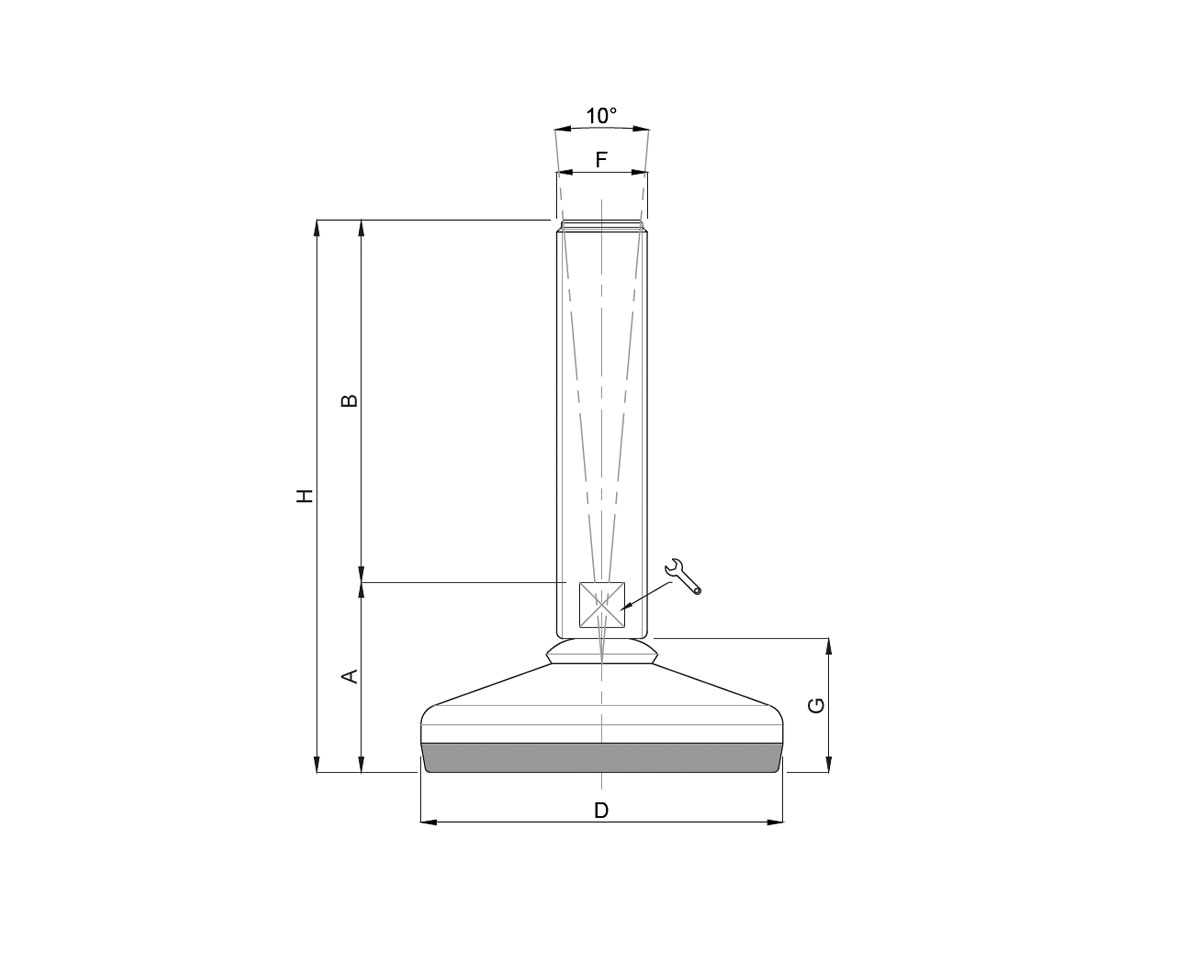

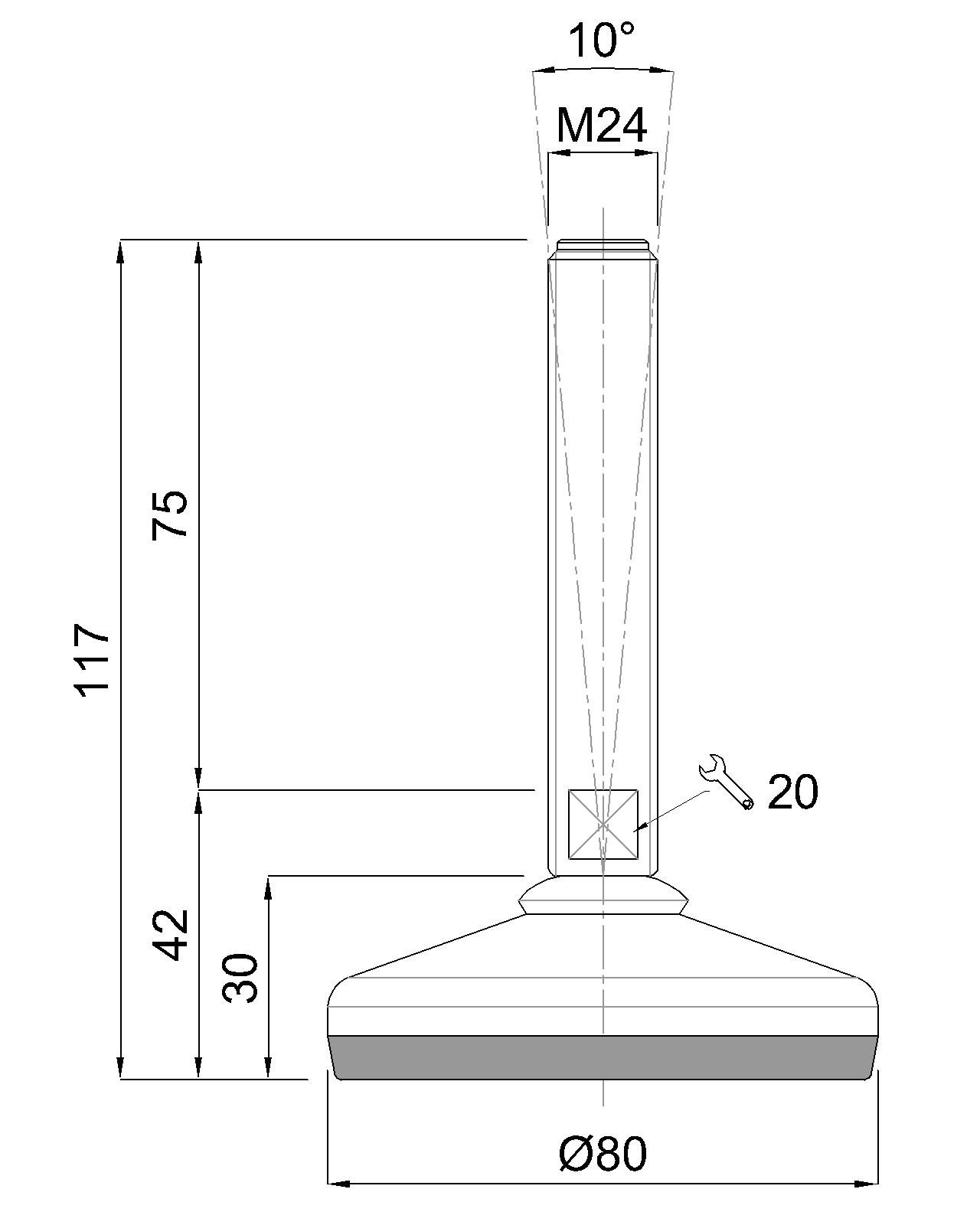

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
