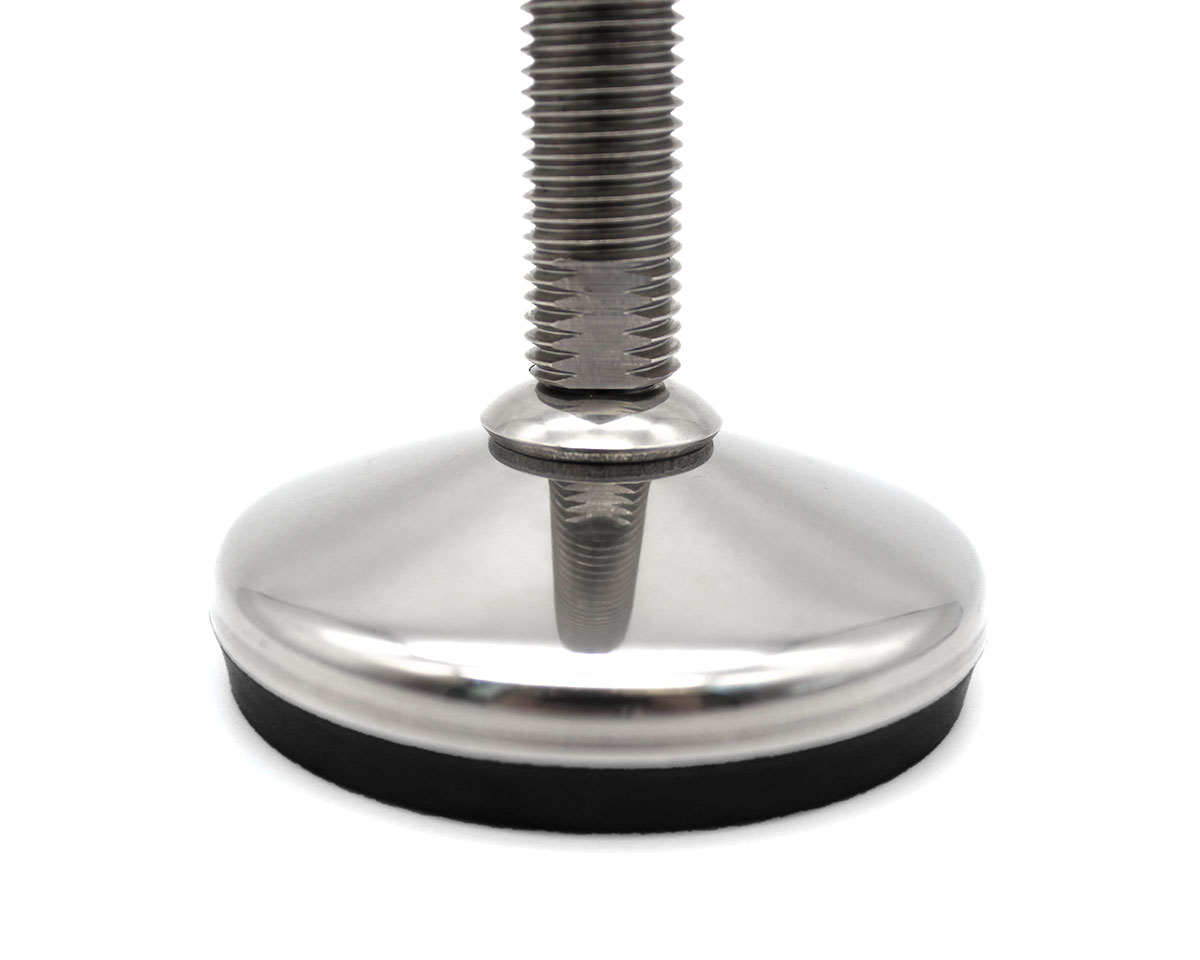

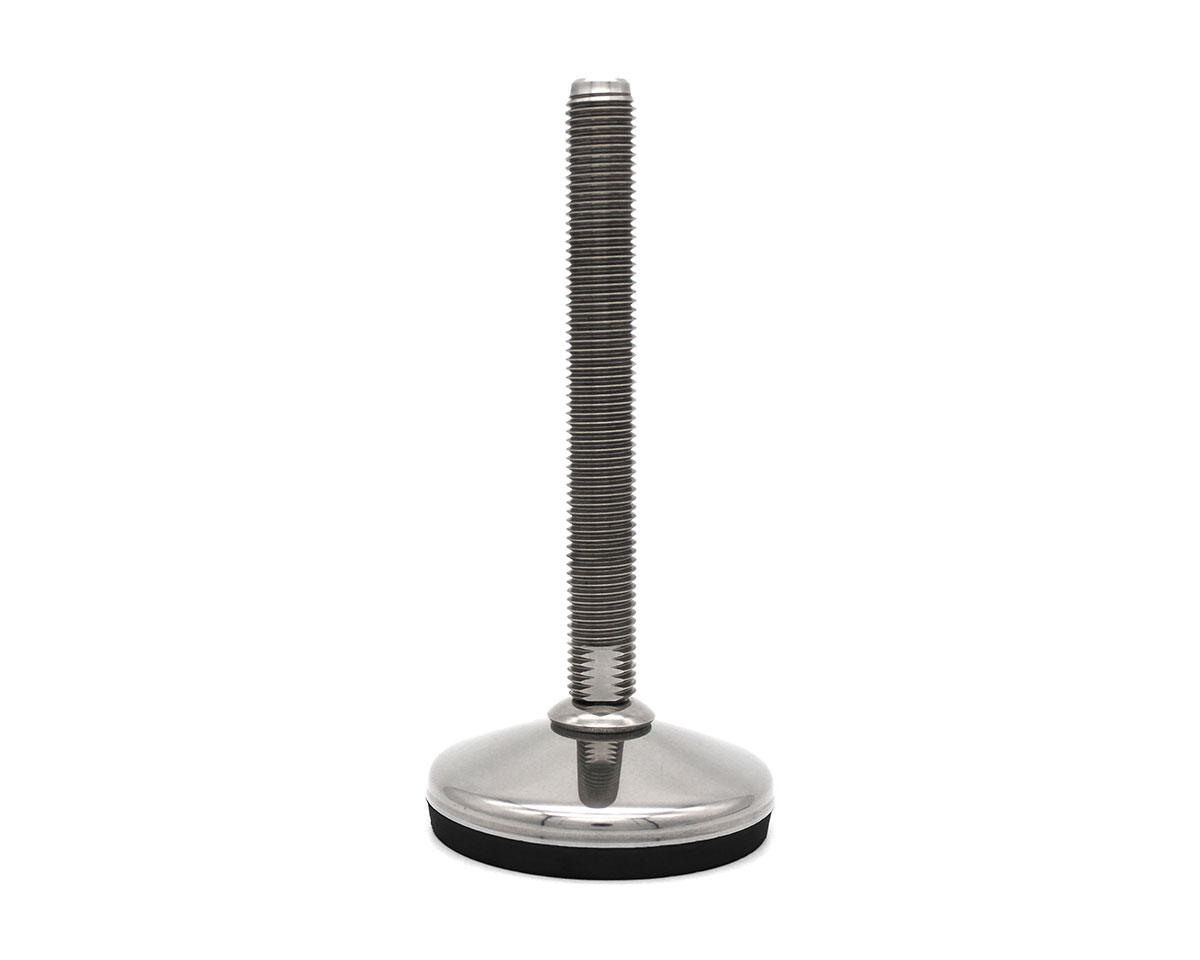

Levelling foot VULCANIZED stainless steel, Ø 80 mm, M20 x 200 mm, Hygenic, NBR
Optimize your equipment stability with our VULCANIZED stainless steel leveling foot. Featuring a hygienic design, articulated screw, and a static load capacity of 10,000 N, it ensures reliable performance.
| Quantity | Price |
|---|---|
| From 1 |
€18.94*
|
| From 13 |
€17.79*
|
| From 25 |
€16.65*
|
| From 50 |
€15.84*
|
Currently sold out, Refill time: 8 days
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 71-90 |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 20 |
| Spindle length (mm): | 200 |
| Balancing angle: | 10° |

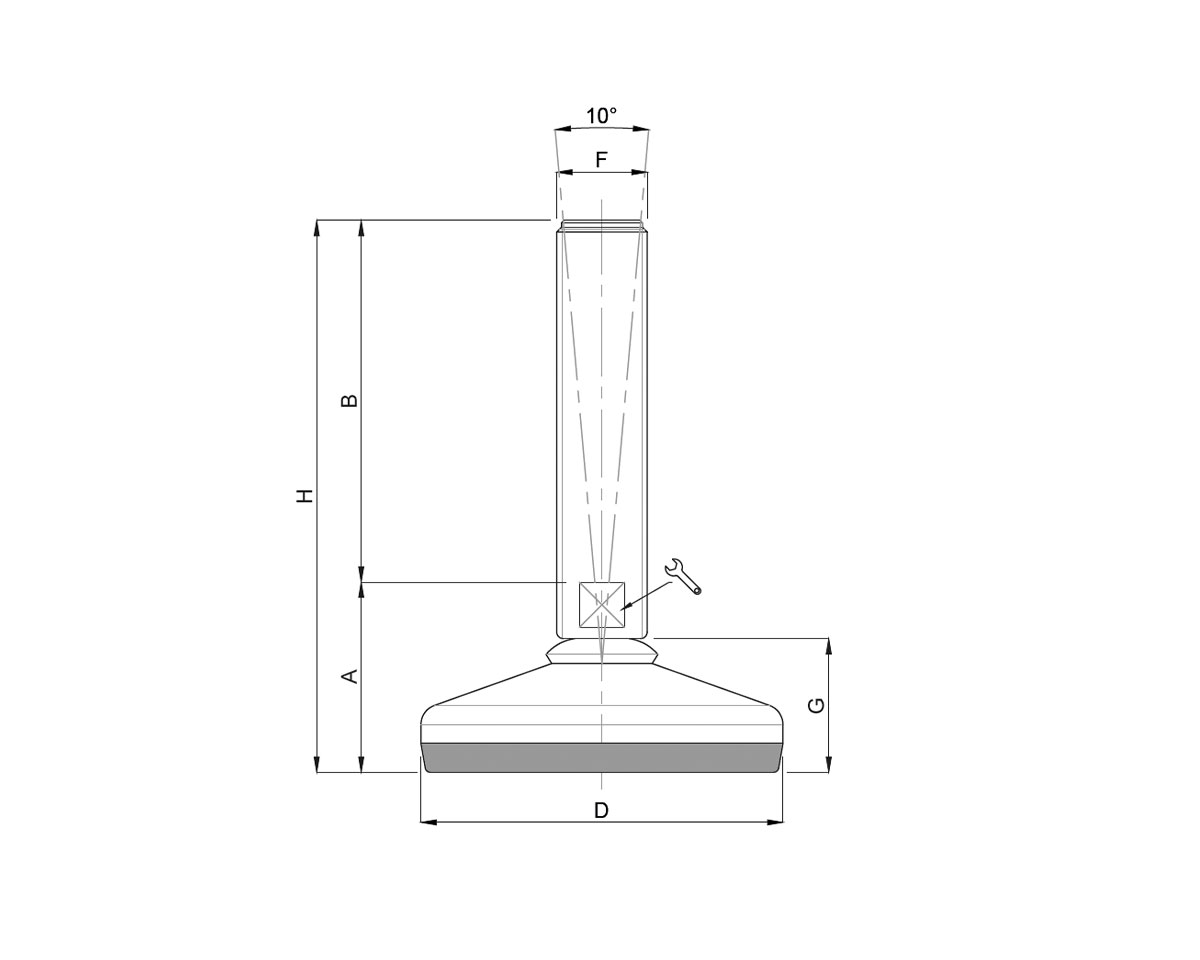

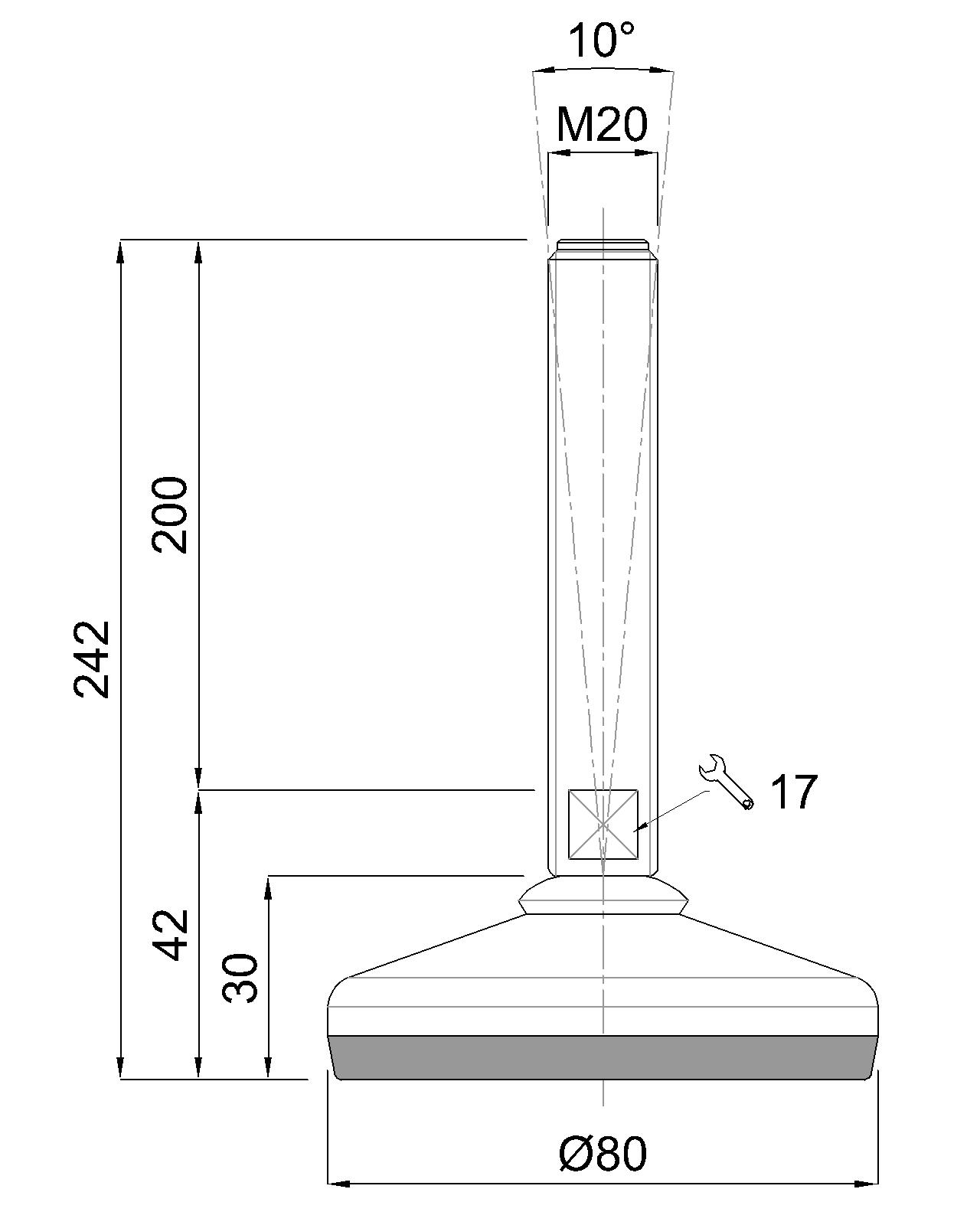

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
