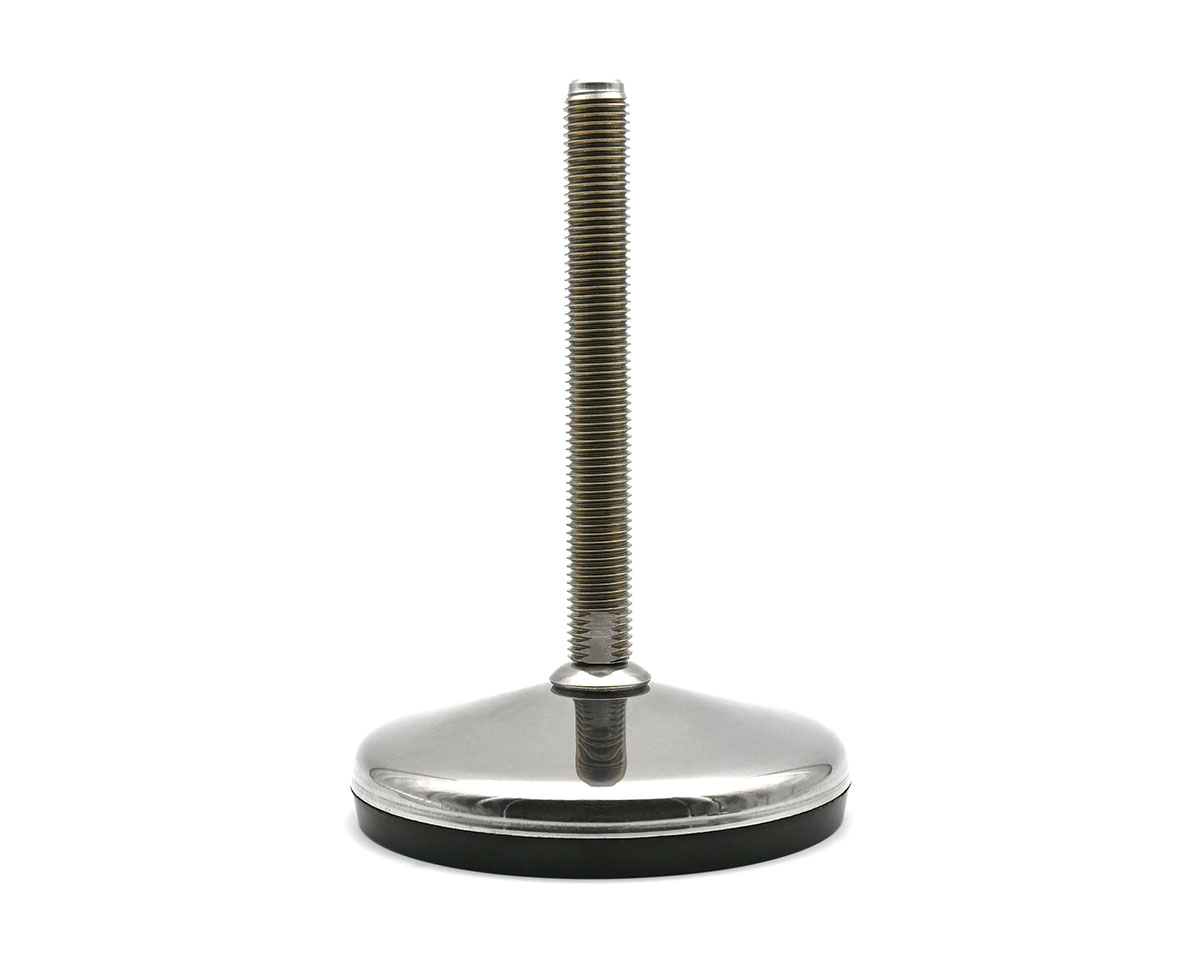

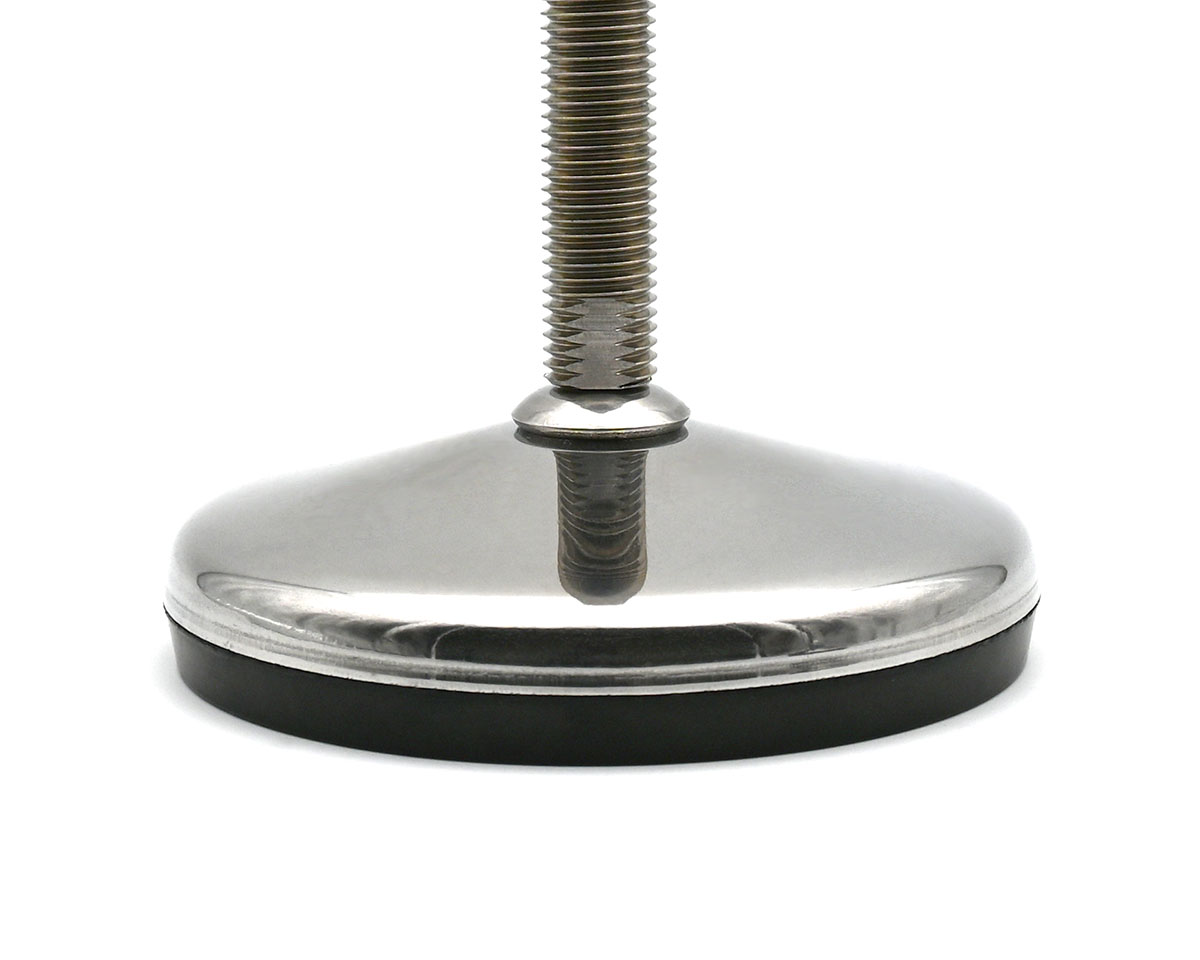

Levelling foot VULCANIZED stainless steel, Ø 100 mm, M30 x 250 mm, Hygenic, NBR
Elevate your equipment stability with our vulcanized stainless steel leveling foot. Featuring a 100 mm diameter and a robust M30 x 250 mm spindle, it supports static loads up to 15,000 N, ensuring reliable performance in hygienic environments.
| Quantity | Price |
|---|---|
| From 1 |
€37.17*
|
| From 13 |
€34.92*
|
| From 25 |
€32.67*
|
| From 50 |
€31.09*
|
Currently sold out, Refill time: 8 days
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 91-110 |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 30 |
| Spindle length (mm): | 250 |
| Balancing angle: | 10° |

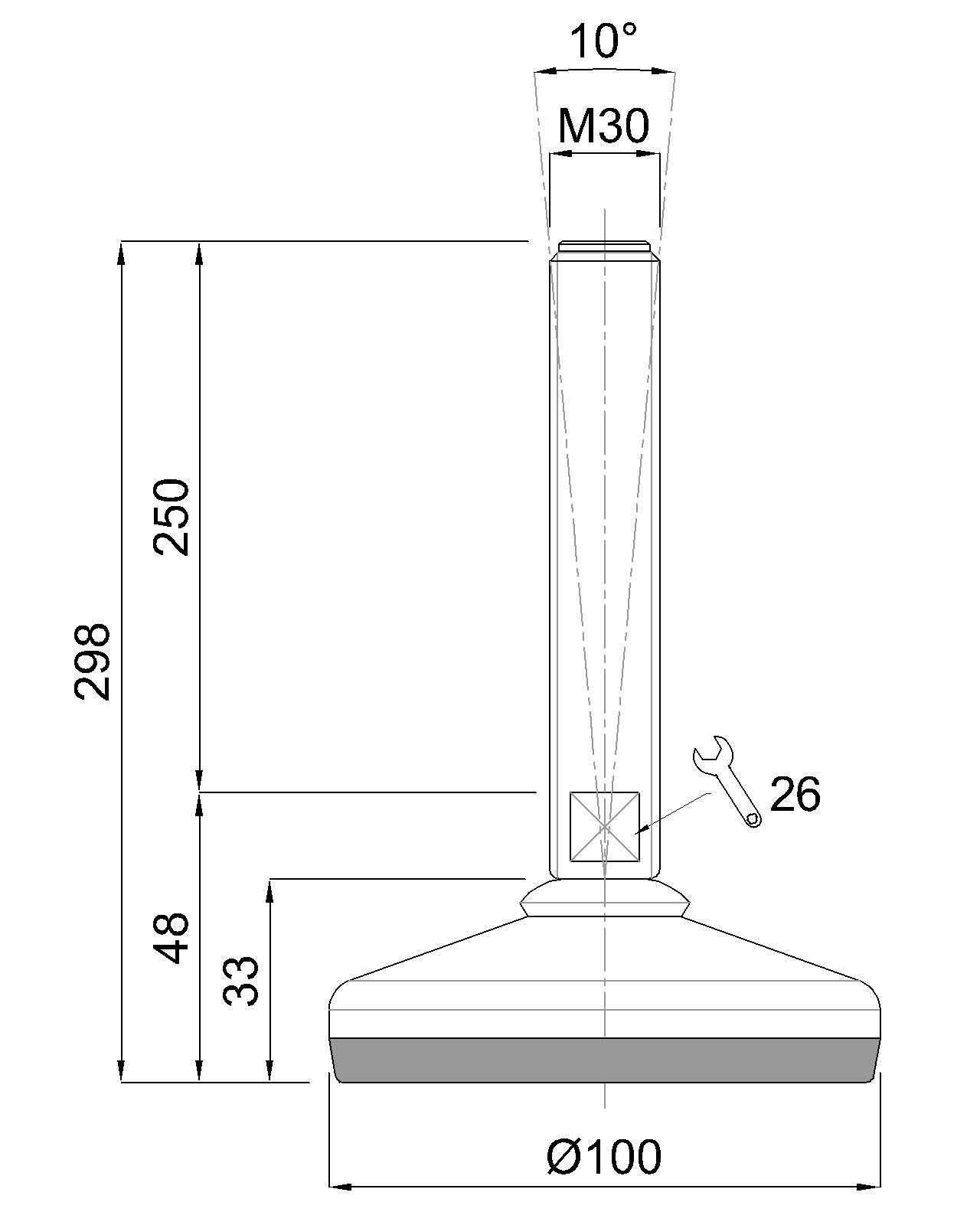

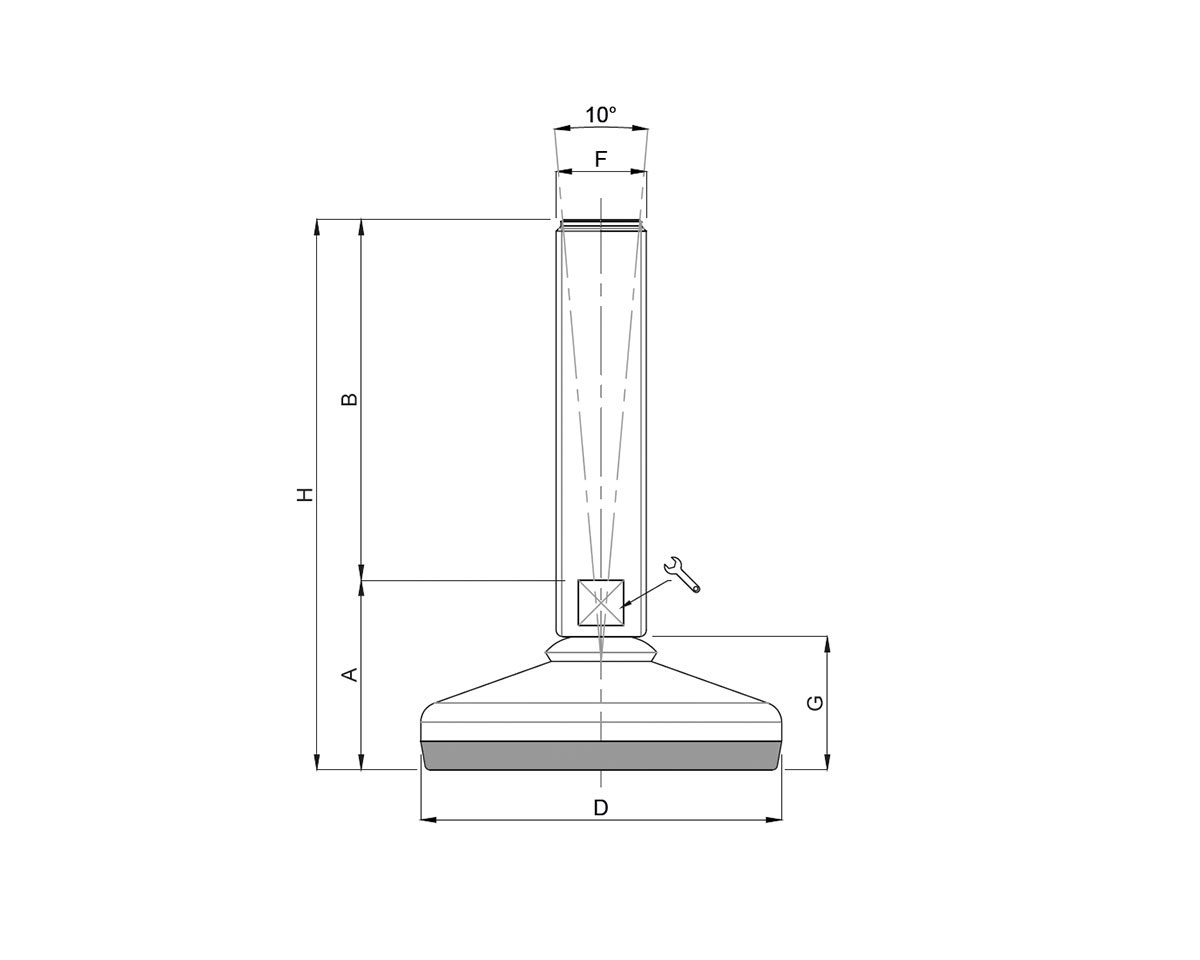

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
