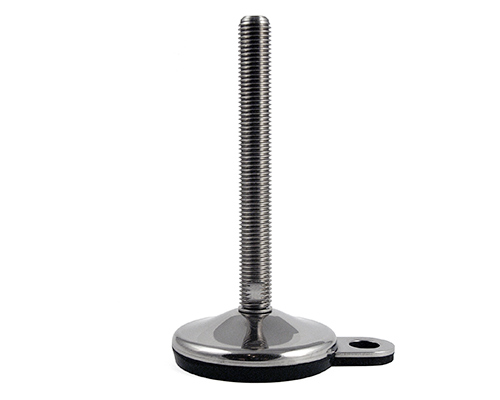

Levelling foot VULCANIZED stainless steel, Ø 100 mm, M20 x 175 mm, Lug, NBR
Discover the VULCANIZED stainless steel leveling foot, designed for precision with a Ø 100 mm base, 175 mm M20 spindle, and a robust static load capacity of 15,000 N.
| Quantity | Price |
|---|---|
| From 1 |
€19.67*
|
| From 13 |
€18.48*
|
| From 25 |
€17.28*
|
| From 50 |
€16.45*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 91-110 |
| Ground fastening: | 1 mounting lug |
| Vibration damping: | no |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 20 |
| Spindle length (mm): | 175 |
| Balancing angle: | 10° |
| Hygiene: | No |

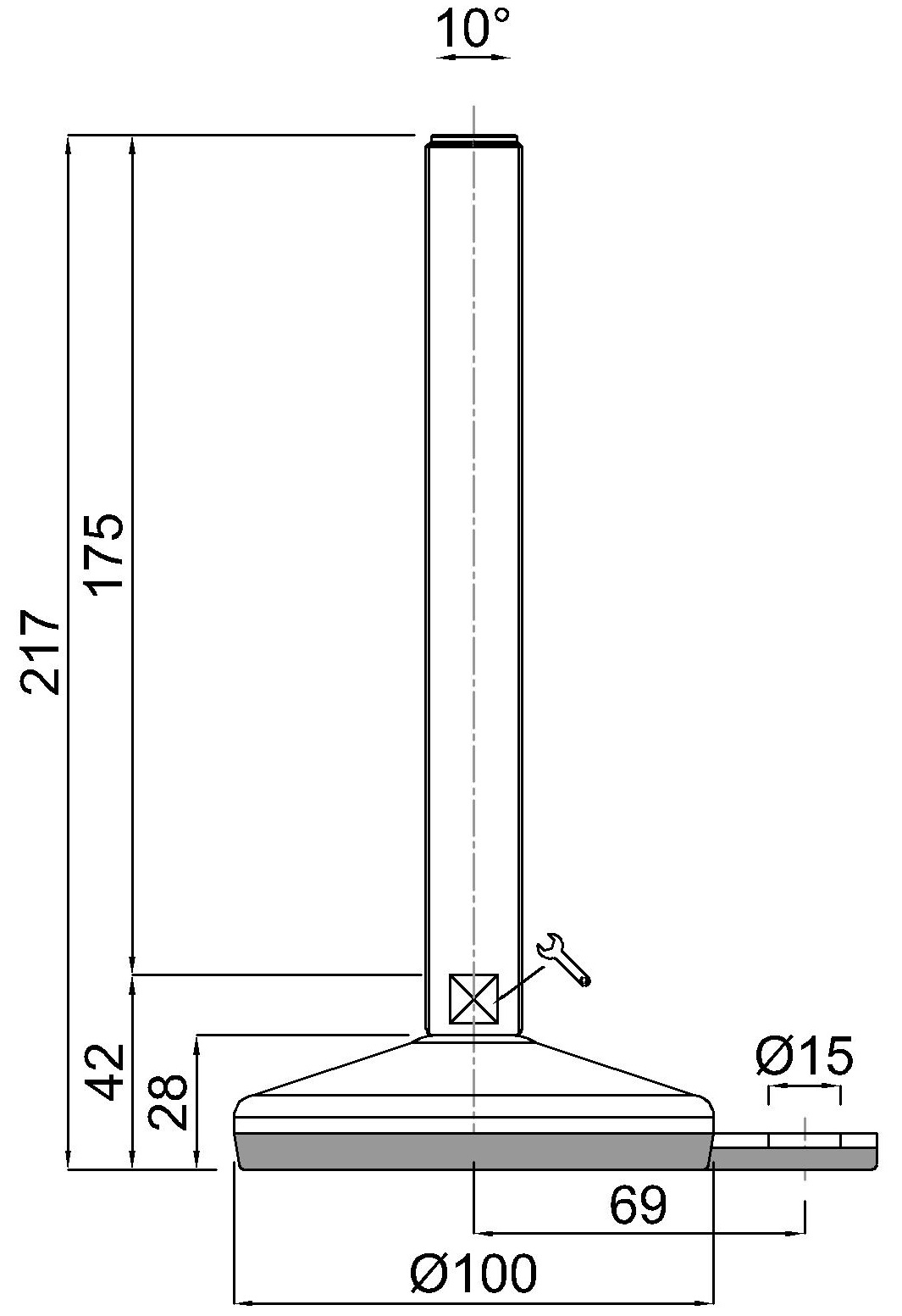

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Download STP file as ZIP
