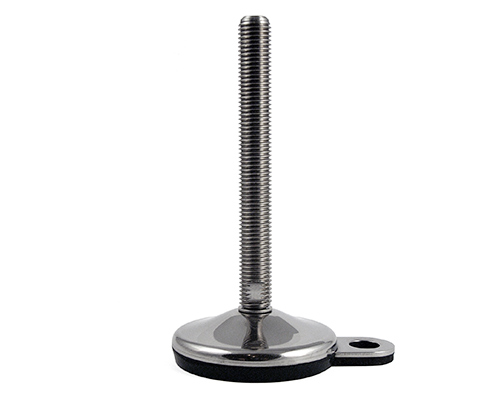

Levelling foot VULCANIZED stainless steel, Ø 100 mm Stainless steel, M20 x 300 mm, Lug, NBR
The VULCANIZED stainless steel leveling foot features a robust design with a 100 mm diameter, ensuring stability under static loads up to 15,000 N. Ideal for precise adjustments with a 10° articulation, it incorporates an anti-slip NBR base for enhanced grip.
| Quantity | Price |
|---|---|
| From 1 |
€25.77*
|
| From 13 |
€24.21*
|
| From 25 |
€22.65*
|
| From 50 |
€21.56*
|
20 on stock, Refill time: 5 days
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 91-110 |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 20 |
| Spindle length (mm): | 300 |
| Balancing angle: | 10° |
Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
