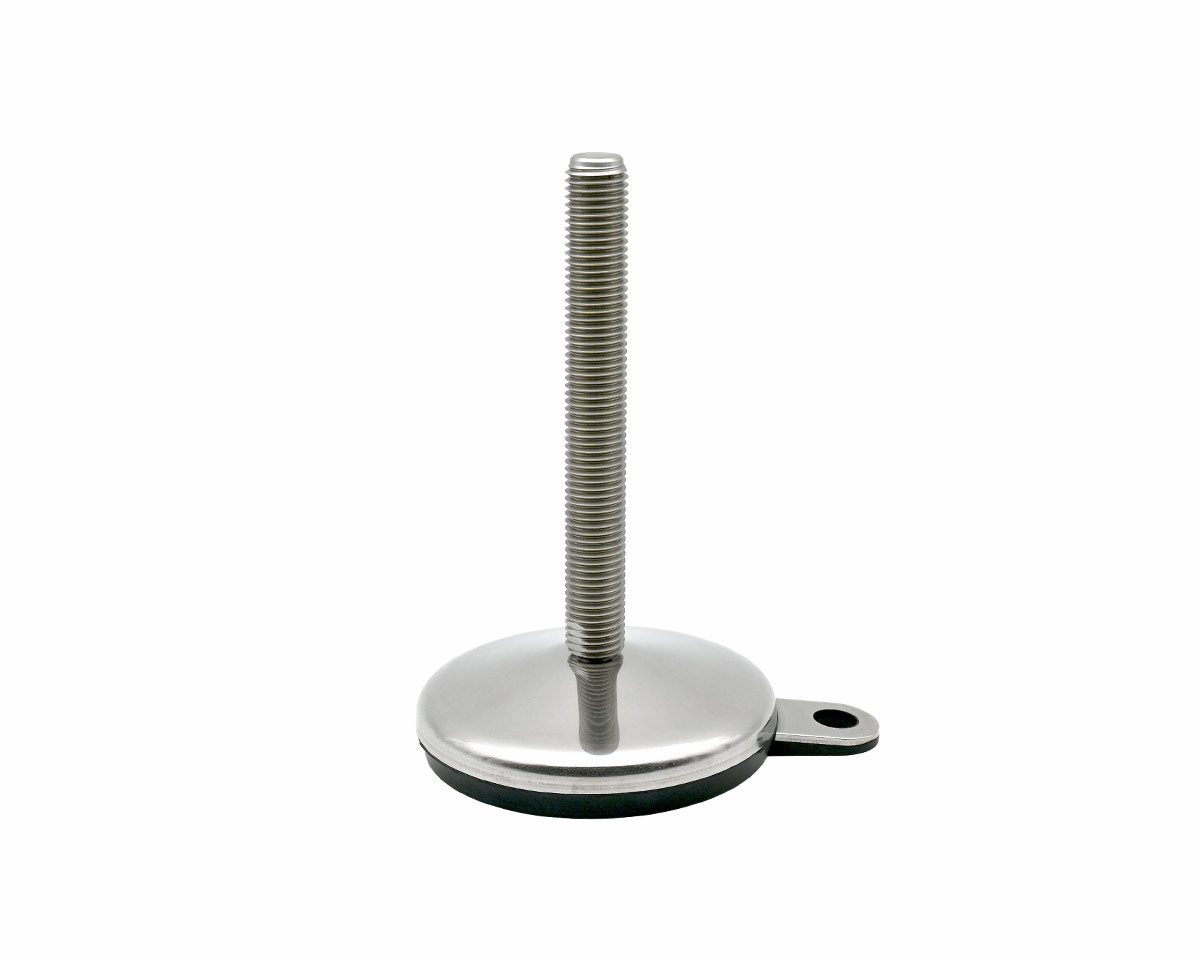

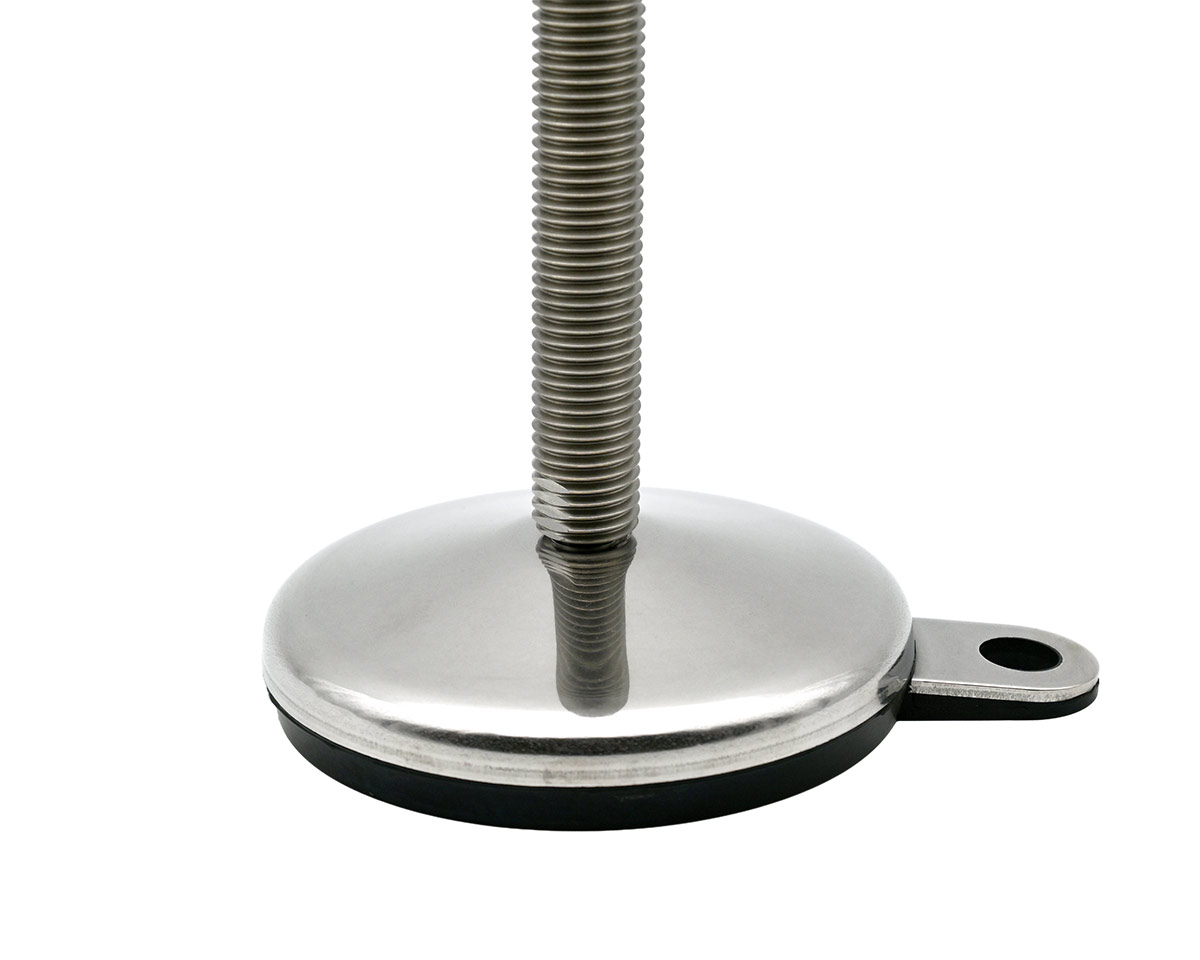

Levelling foot VULCANIZED stainless steel, Ø 120 mm, M30 x 100 mm, Lug, NBR
Optimize your machinery stability with our VULCANIZED stainless steel leveling foot, featuring a 120 mm base and 30,000 N static load capacity. Ideal for precise height adjustments.
| Quantity | Price |
|---|---|
| From 1 |
€34.93*
|
| From 13 |
€32.81*
|
| From 25 |
€30.70*
|
| From 50 |
€29.21*
|
11 on stock, Refill time: 5 days
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 111-130 |
| Ground fastening: | 1 mounting lug |
| Vibration damping: | no |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 30 |
| Spindle length (mm): | 100 |
| Balancing angle: | 10° |
| Hygiene: | No |

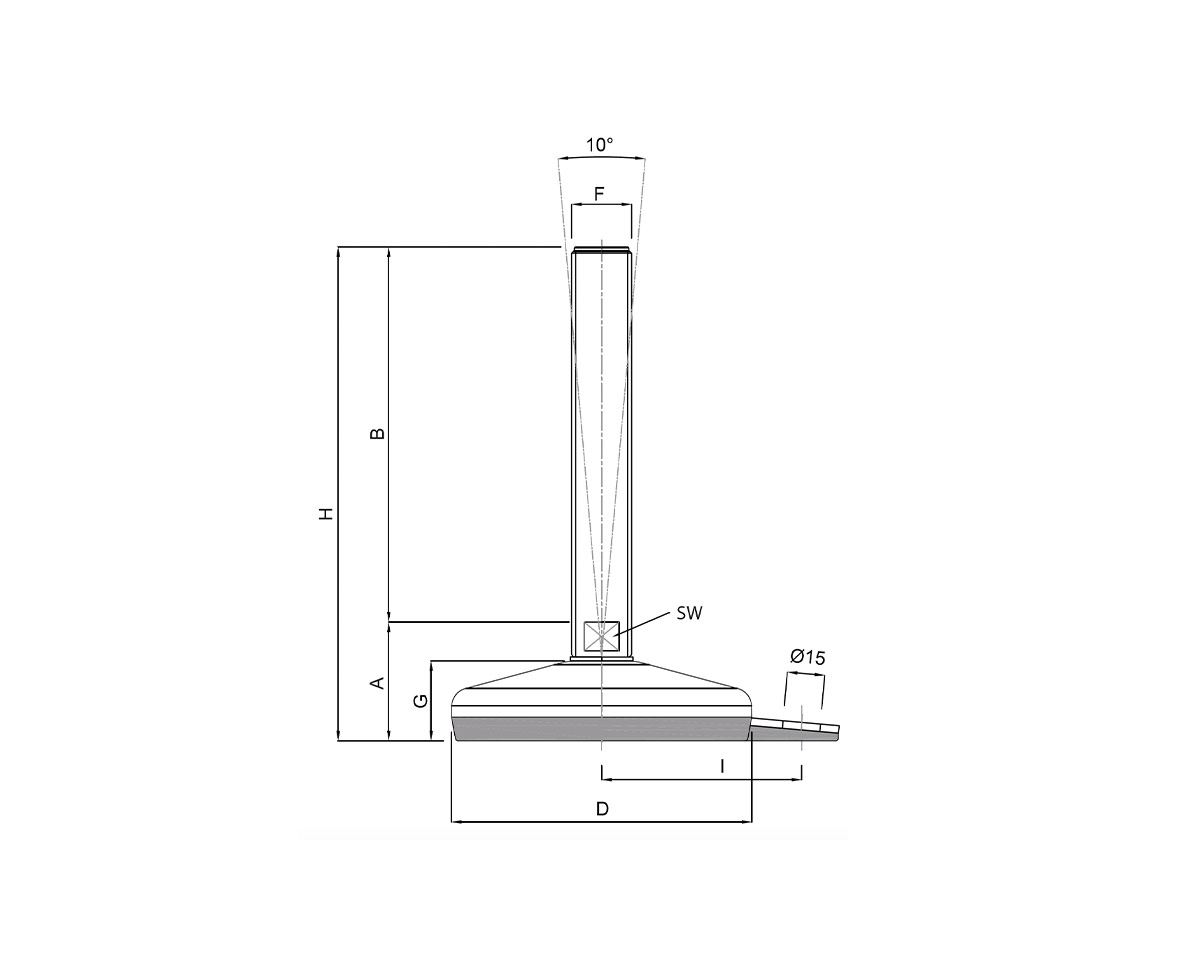

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
