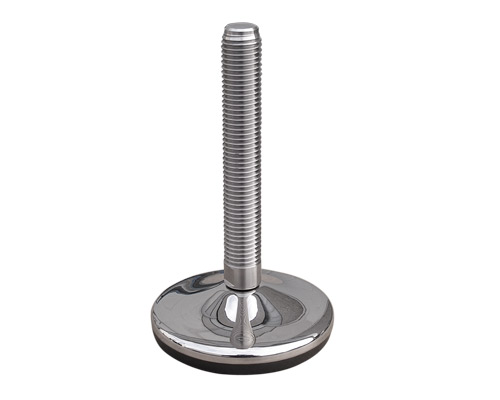

Levelling foot VULCANIZED stainless steel, Ø 100 mm, M12 x 100 mm, NBR
Introducing our VULCANIZED stainless steel leveling foot, designed for optimal stability and support. With a robust static load capacity of 15,000 N and articulated screw adjustment of 10°, it is ideal for precision applications.
| Quantity | Price |
|---|---|
| From 1 |
€14.75*
|
| From 13 |
€13.86*
|
| From 25 |
€12.96*
|
| From 50 |
€12.34*
|
62 on stock, Refill time: 5 days
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 91-110 |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 12 |
| Spindle length (mm): | 100 |
| Balancing angle: | 10° |
Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
