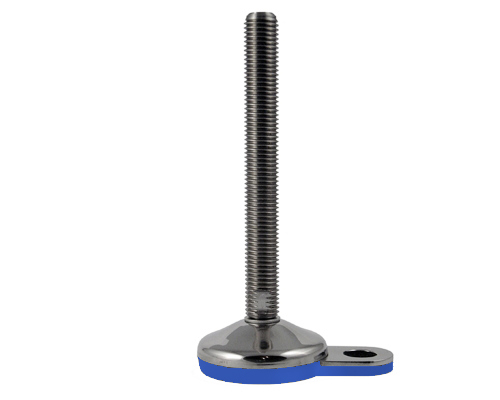

Levelling foot VULCANIZED stainless steel, Ø 80 mm, M24 x 150 mm, Lug, EPDM
Introducing our VULCANIZED stainless steel leveling foot, designed for superior stability with a 80 mm base diameter and an impressive static load capacity of 10,000 N. Features include an articulated screw for 10° adjustment and durable EPDM anti-slip surface. Perfect for precise leveling in any industrial application.
| Quantity | Price |
|---|---|
| From 1 |
€21.58*
|
| From 13 |
€20.26*
|
| From 25 |
€18.93*
|
| From 50 |
€18.01*
|
26 on stock, Refill time: 5 days
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | EPDM blue |
| Ø range base plate (mm): | 71-90 |
| Ground fastening: | 1 mounting lug |
| Vibration damping: | no |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 24 |
| Spindle length (mm): | 150 |
| Balancing angle: | 10° |
| Hygiene: | No |
Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
