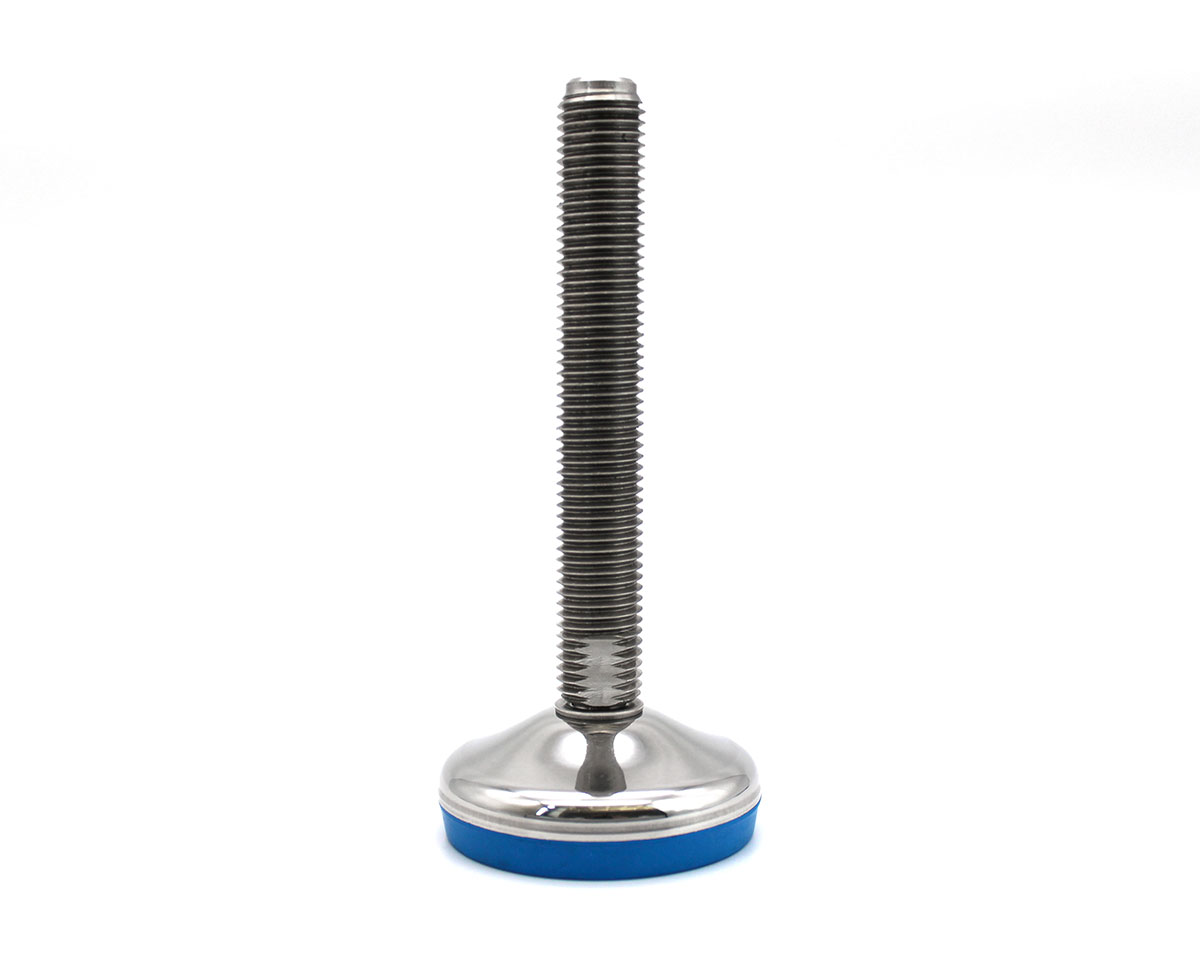

Levelling foot VULCANIZED stainless steel, Ø 60 mm, M20 x 100 mm, EPDM
Optimize your setups with our VULCANIZED stainless steel leveling foot, featuring a 60 mm diameter and an M20 x 100 mm spindle. With a static load capacity of 7,000 N and integrated 10° articulation, it ensures stability and anti-slip performance with durable blue EPDM.
| Quantity | Price |
|---|---|
| From 1 |
€11.48*
|
| From 13 |
€10.77*
|
| From 25 |
€10.07*
|
| From 50 |
€9.57*
|
118 on stock, Refill time: 5 days
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | EPDM blue |
| Ø range base plate (mm): | 51-70 |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 20 |
| Spindle length (mm): | 100 |
| Balancing angle: | 10° |
Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
