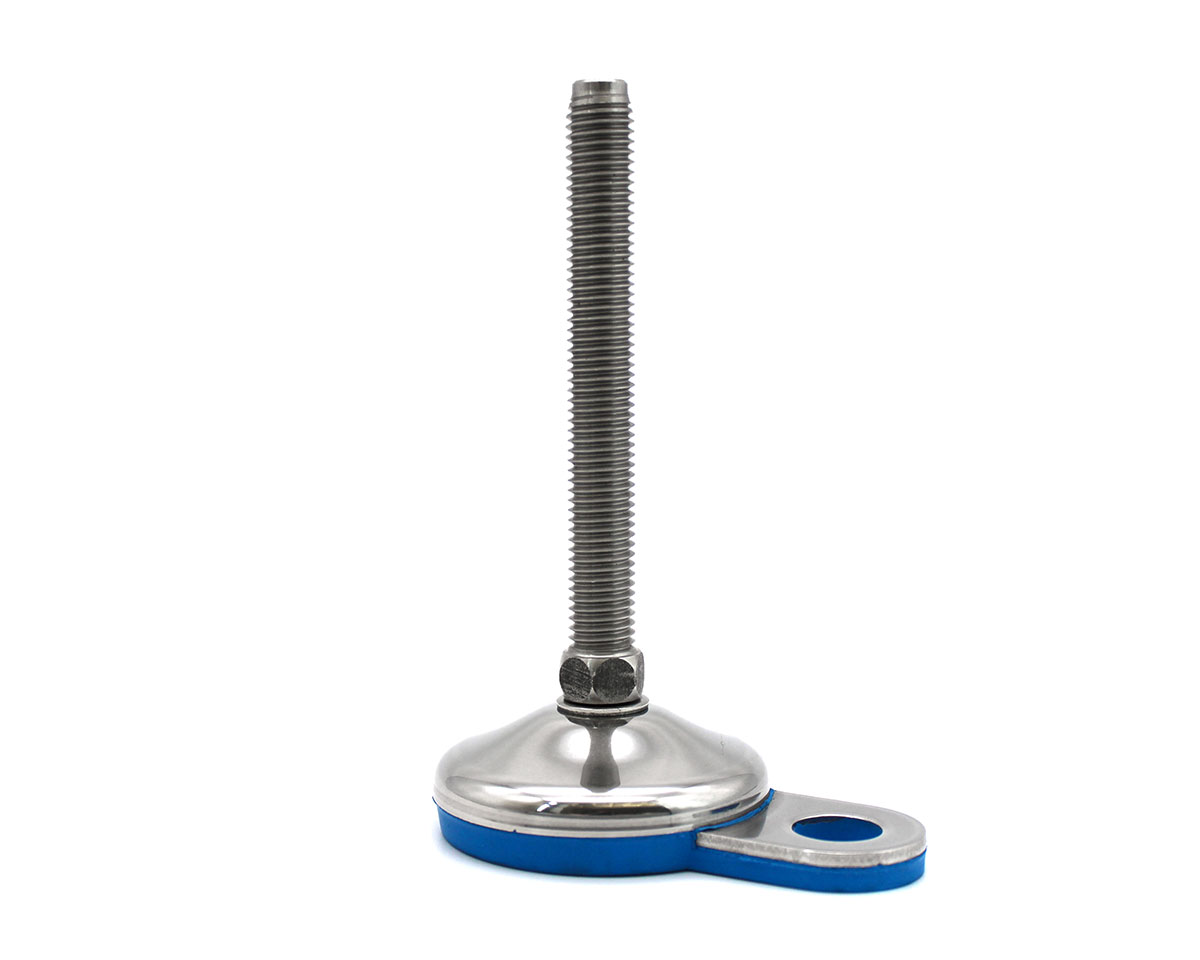

Levelling foot VULCANIZED stainless steel, Ø 60 mm, M14 x 175 mm, Lug, EPDM
Discover the VULCANIZED Stainless Steel Levelling Foot, designed for stability and precision. With a 60 mm diameter and 175 mm thread length, it supports up to 7,000 N and features anti-slip EPDM for optimal grip.
| Quantity | Price |
|---|---|
| From 1 |
€13.59*
|
| From 13 |
€12.76*
|
| From 25 |
€11.93*
|
| From 50 |
€11.34*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | EPDM blue |
| Ø range base plate (mm): | 51-70 |
| Ground fastening: | 1 mounting lug |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 14 |
| Spindle length (mm): | 175 |
| Balancing angle: | 10° |
| Hygiene: | No |
| Brake: | No |
| Steerable: | no |
Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
