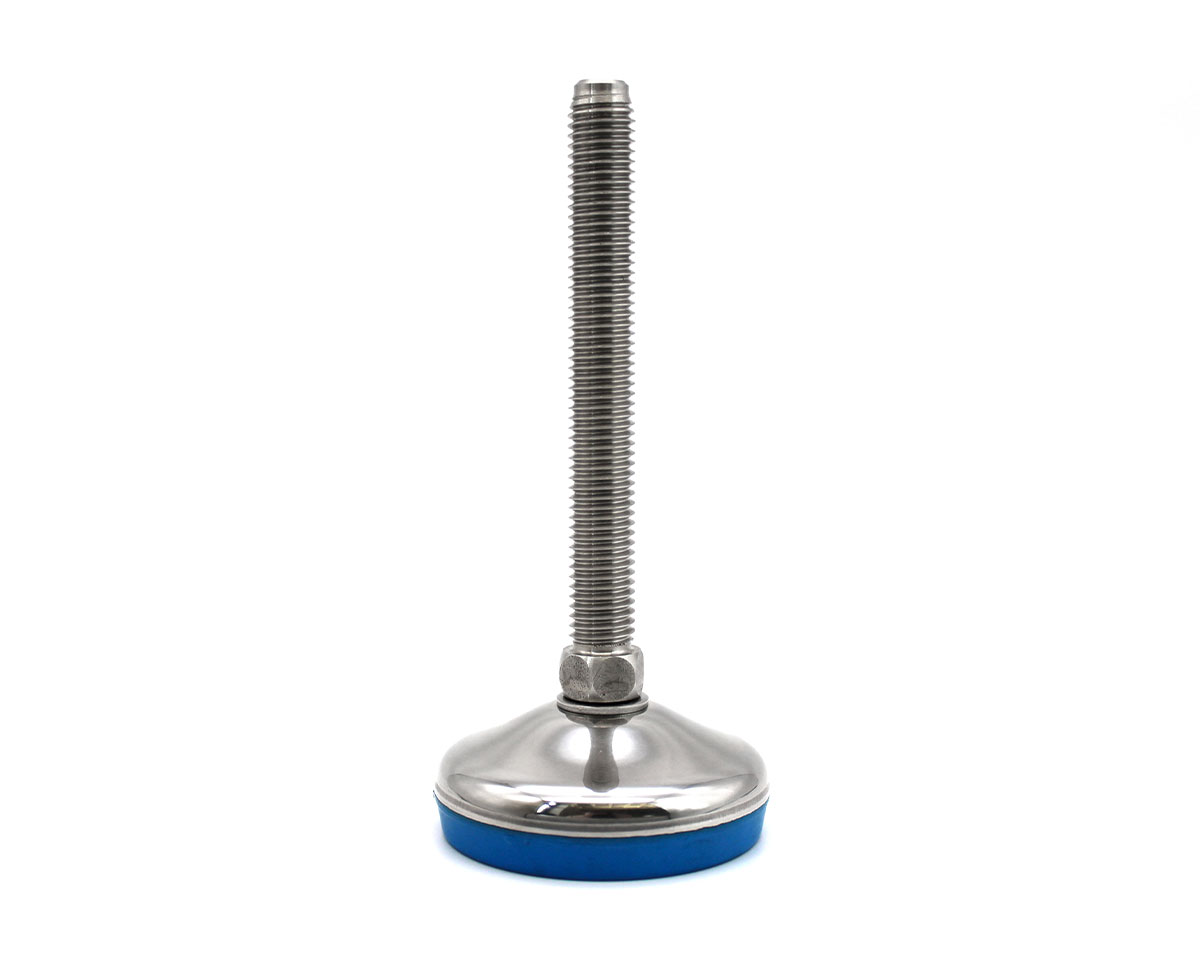

Levelling foot VULCANIZED stainless steel, Ø 50 mm, M14 x 175 mm, EPDM
Discover our VULCANIZED stainless steel leveling foot, featuring a 50 mm diameter and M14 x 175 mm threaded spindle. Designed for robust support with a static load capacity of 4,000 N, it ensures stability and effective anti-slip functionality with blue EPDM material.
| Quantity | Price |
|---|---|
| From 1 |
€10.46*
|
| From 13 |
€9.82*
|
| From 25 |
€9.18*
|
| From 50 |
€8.73*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | EPDM blue |
| Ø range base plate (mm): | 41-50 |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 14 |
| Spindle length (mm): | 175 |
| Balancing angle: | 10° |
Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
