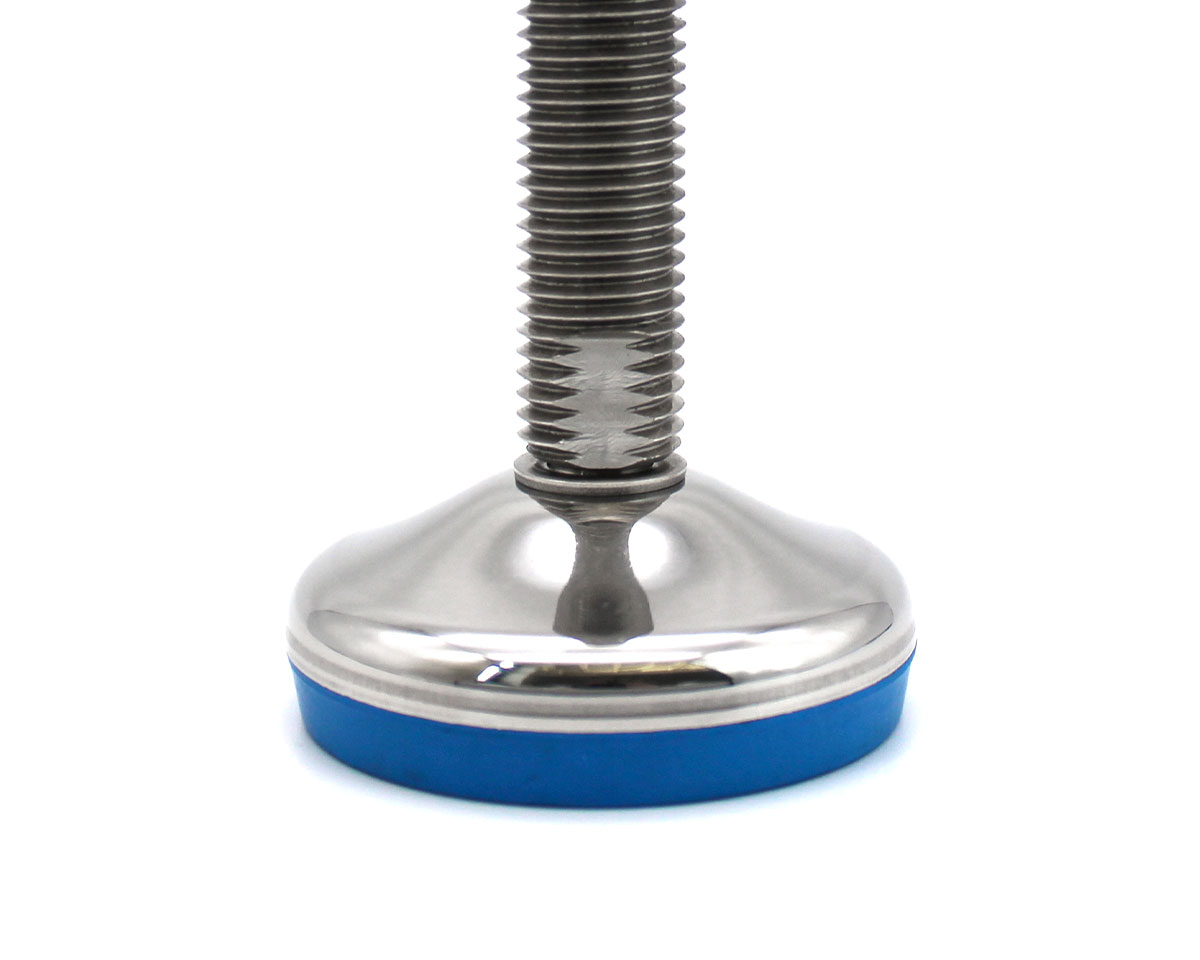

Levelling foot VULCANIZED stainless steel, Ø 60 mm, M10 x 50 mm, EPDM
Discover the VULCANIZED stainless steel leveling foot with a 60 mm diameter and M10 x 50 mm spindle. Designed for static loads up to 7,000 N, it features a 10° articulated screw and durable anti-slip EPDM material, ensuring stability and precision for your applications.
| Quantity | Price |
|---|---|
| From 1 |
€9.67*
|
| From 13 |
€9.07*
|
| From 25 |
€8.48*
|
| From 50 |
€8.06*
|
136 on stock, Refill time: 5 days
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | EPDM blue |
| Ø range base plate (mm): | 51-70 |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 10 |
| Spindle length (mm): | 50 |
| Balancing angle: | 10° |
Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
