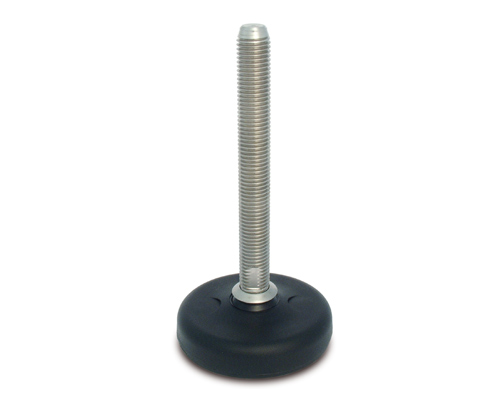

Levelling foot ECO16 PA, Ø 123 mm, M30 x 150 mm Stainless steel, Drills

EAN 4061408099399

Type 45818358

Discover the ECO16 Levelling Foot, featuring a robust 123 mm polyamide base and stainless-steel spindle. Perfect for precise adjustments, it supports static loads up to 35,000 N.

Robust design featuring a plastic base plate and stainless steel spindle for enhanced durability and corrosion resistance.
Adjustable leveling foot with articulating screw angle of 16° for precise alignment on uneven surfaces.
Large base diameter of 123 mm provides excellent stability and load distribution under static loads up to 35,000 N.
Integrated bore holes (Ø 12.5 mm) facilitate secure attachment to the ground, ensuring reliability in industrial applications.
Compatibility with various machine setups, featuring a spindle length of 150 mm and a diameter of 30 mm for versatile mounting options.

Quantity	Price
From 1	€20.02*
From 5	€17.89*
From 15	€15.98*
From 50	€15.66*

*Prices excl. VAT plus shipping costs

Currently sold out, Refill time: 5 days

€20.02* / piece

Our payment methods:

Accessories

Plastic levelling foot height extension Ø 123

Type No.: 458PROLD123

From €5.03*

Product properties

Footplate material:	Plastic
Anti-slip:	No
Ø range base plate (mm):	111-130
Ground fastening:	2 mounting holes
Vibration damping:	no
Material spindle:	Stainless steel
Ø spindle (mm):	30
Spindle length (mm):	150
Balancing angle:	16°
Hygiene:	No

Product description

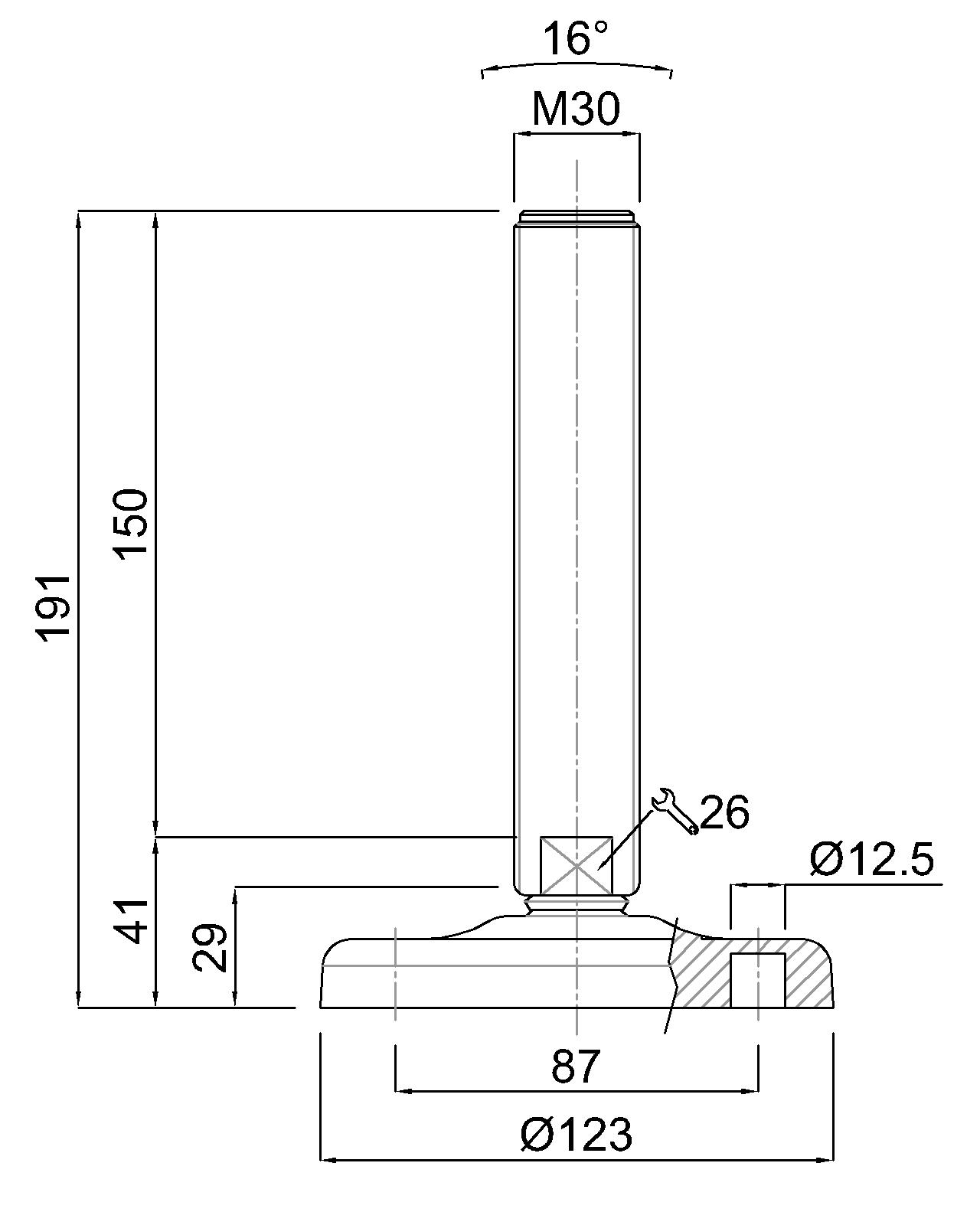

Levelling foot ECO16 Polyamide, Ø 123 mm, M30 x 150 mm, Stainlees steel, Total height 191 mm, Articulated screw 16°, Bore holes Ø 12,5 mm, Static load 35.000 N

Custom solutions

We develop customised components exactly as you need them for your application.

Learn more about custom solutions Contact us

Technical documentation

In this section you will find all relevant documents & links for your documentation::

Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
