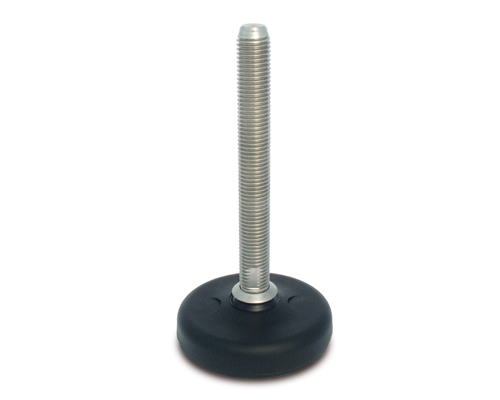

Levelling foot ECO16 PA, Ø 123 mm, M24 x 100 mm Stainless steel, Drills, NBR

EAN 4061408099283

Type 45818339

Discover the ECO16 Levelling Foot, featuring a durable polyamide base and stainless steel spindle. Ideal for stability under static loads up to 35,000 N with a 16° tilt adjustment.

Robust construction with polyamide base and stainless steel spindle ensures long-lasting durability in various environments.

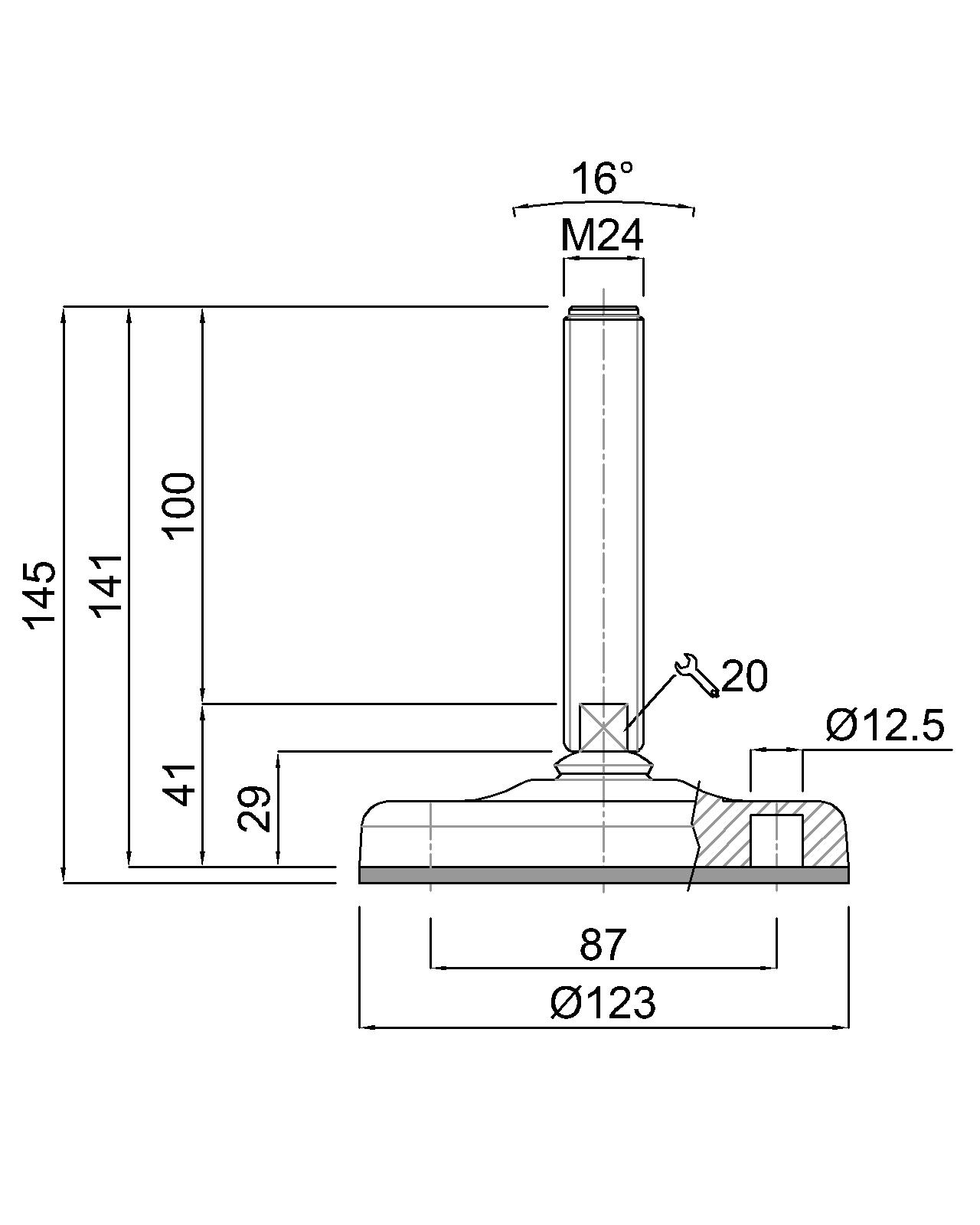

Total height of 145 mm and articulated screw angle of 16° allows for precise leveling adjustments in uneven terrains.
Anti-slip NBR (black) coating provides enhanced grip, reducing the risk of slipping under static loads up to 35,000 N.
Bore holes with a diameter of 12.5 mm facilitate easy floor mounting, ensuring a stable installation.
Versatile size with a base diameter of 123 mm and a spindle diameter of 24 mm accommodates a range of application requirements.

Quantity	Price
From 1	€13.89*
From 5	€12.42*
From 15	€11.09*
From 50	€10.86*

*Prices excl. VAT plus shipping costs

Currently sold out, Refill time: 5 days

€13.89* / piece

Our payment methods:

Accessories

Plastic levelling foot height extension Ø 123, with anti-slip rubber pad

Type No.: 458PROLD123/G

From €6.93*

Product properties

Footplate material:	Plastic
Anti-slip:	NBR black
Ø range base plate (mm):	111-130
Ground fastening:	2 mounting holes
Material spindle:	Stainless steel
Ø spindle (mm):	24
Spindle length (mm):	100
Balancing angle:	16°

Product description

Levelling foot ECO16 Polyamide, Ø 123 mm, M24 x 100 mm, Stainlees steel, Total height 145 mm, Articulated screw 16°, Bore holes Ø 12,5 mm, Antislip NBR black, Static load 35.000 N

Custom solutions

We develop customised components exactly as you need them for your application.

Learn more about custom solutions Contact us

Technical documentation

In this section you will find all relevant documents & links for your documentation::

Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
