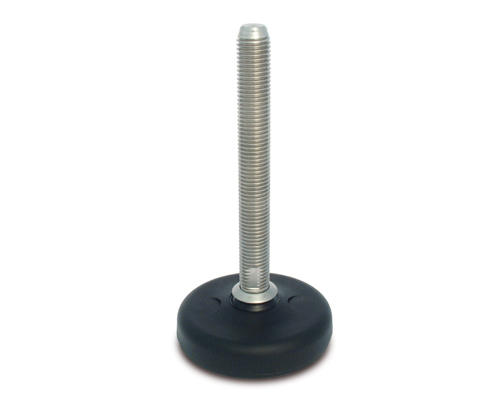

Levelling foot ECO16 PA, Ø 123 mm, M20 x 250 mm Stainless steel, Drills

EAN 4061408099276

Type 45818334

The ECO16 Levelling Foot ensures stability with a static load capacity of 35,000 N. Ideal for precision applications, it features a polyamide base and stainless steel spindle, accommodating adjustments up to 16°.

High static load capacity of 35,000 N, ensuring robust support for various applications.
Durable construction with a combination of polyamide foot plate and stainless steel spindle, providing excellent resistance against wear and corrosion.
Articulated screw design allows for a leveling angle of 16°, facilitating precise adjustments in uneven surfaces.
Boreholes with a diameter of 12.5 mm enable easy and flexible mounting, ensuring secure placement.
Total height of 291 mm and a footplate diameter of 123 mm, tailored for optimal stability in various engineering setups.

Quantity	Price
From 1	€14.16*
From 5	€12.65*
From 15	€11.30*
From 50	€11.07*

*Prices excl. VAT plus shipping costs

Currently sold out, Refill time: 5 days

€14.16* / piece

Our payment methods:

Accessories

Plastic levelling foot height extension Ø 123

Type No.: 458PROLD123

From €5.03*

Product properties

Footplate material:	Plastic
Anti-slip:	No
Ø range base plate (mm):	111-130
Ground fastening:	2 mounting holes
Vibration damping:	no
Material spindle:	Stainless steel
Ø spindle (mm):	20
Spindle length (mm):	250
Balancing angle:	16°
Hygiene:	No

Product description

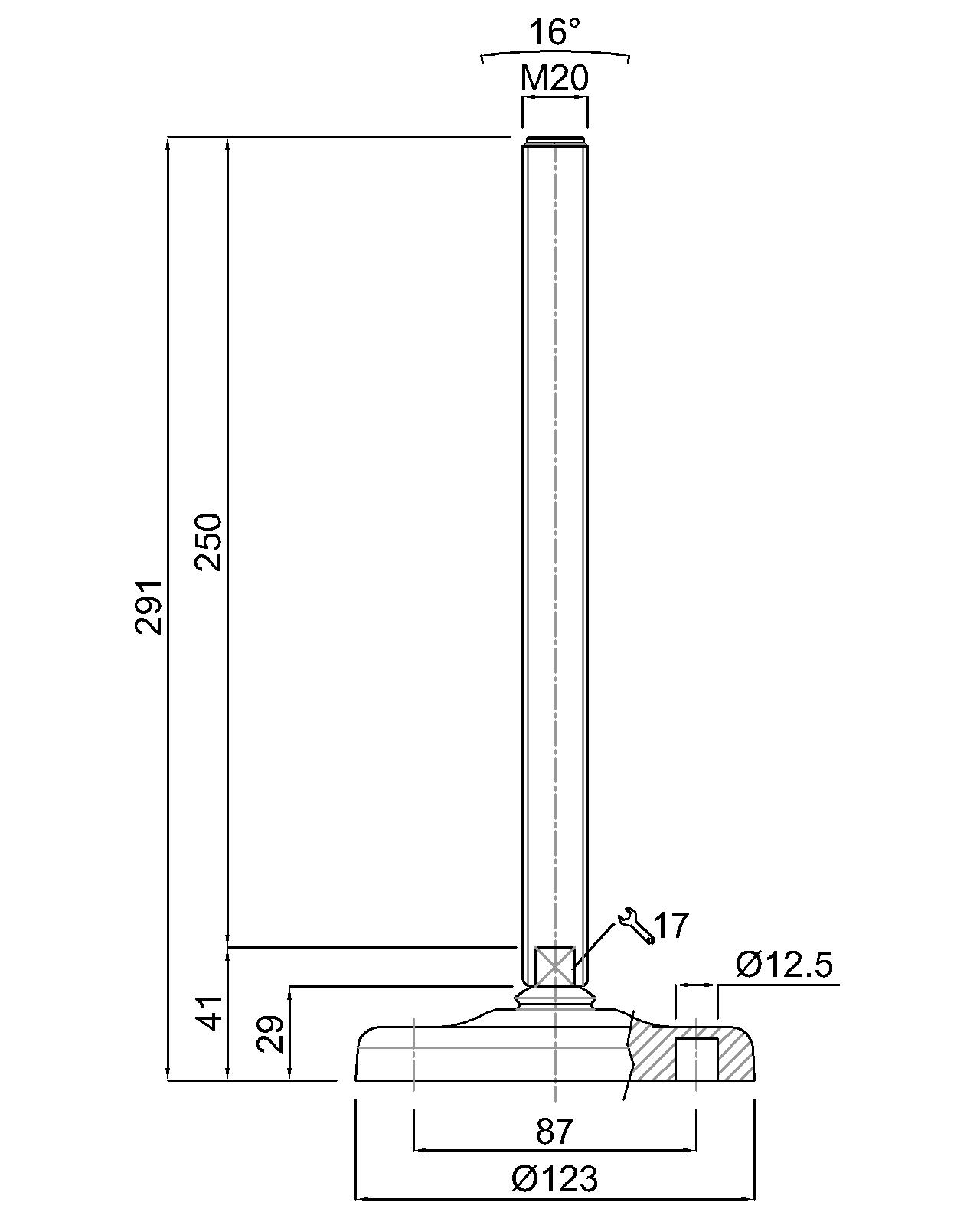

Levelling foot ECO16 Polyamide, Ø 123 mm, M20 x 250 mm, Stainlees steel, Total height 291 mm, Articulated screw 16°, Bore holes Ø 12,5 mm, Static load 35.000 N

Custom solutions

We develop customised components exactly as you need them for your application.

Learn more about custom solutions Contact us

Technical documentation

In this section you will find all relevant documents & links for your documentation::

Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
