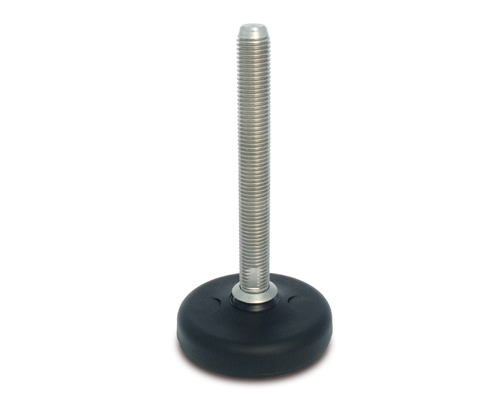

Levelling foot ECO16 PA, Ø 123 mm, M20 x 150 mm Stainless steel, Drills, NBR
Introducing the ECO16 Levelling Foot: featuring a durable polyamide base, stainless steel spindle, and a robust static load capacity of 35,000 N. Engineered for precision leveling with a 16° articulation, it ensures stability in demanding environments.
| Quantity | Price |
|---|---|
| From 1 |
€13.55*
|
| From 5 |
€12.11*
|
| From 15 |
€10.82*
|
| From 50 |
€10.60*
|
Currently sold out, Refill time: 5 days
Accessories
Product properties
| Footplate material: | Plastic |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 111-130 |
| Ground fastening: | 2 mounting holes |
| Vibration damping: | no |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 20 |
| Spindle length (mm): | 150 |
| Balancing angle: | 16° |
| Hygiene: | No |

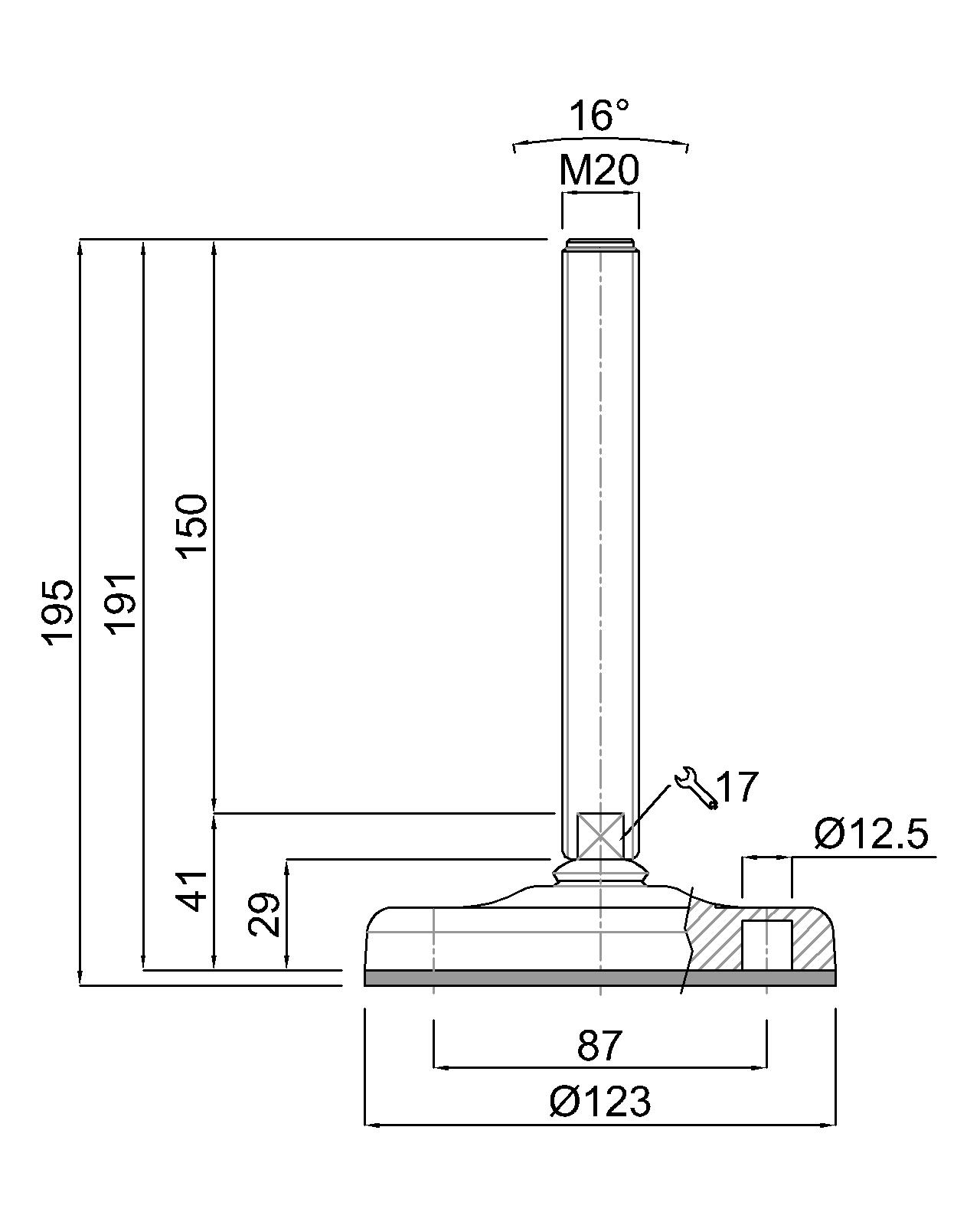

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
