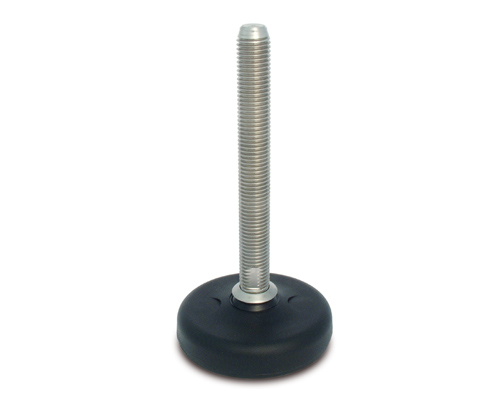

Levelling foot ECO16 PA, Ø 103 mm, M24 x 100 mm Stainless steel, Drills, NBR
Discover the ECO16 Levelling Foot, featuring a robust polyamide base and stainless steel spindle, designed to support static loads up to 30,000 N with superior anti-slip performance.
| Quantity | Price |
|---|---|
| From 1 |
€12.69*
|
| From 5 |
€11.34*
|
| From 15 |
€10.13*
|
| From 50 |
€9.92*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Plastic |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 91-110 |
| Ground fastening: | 2 mounting holes |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 24 |
| Spindle length (mm): | 100 |
| Balancing angle: | 16° |

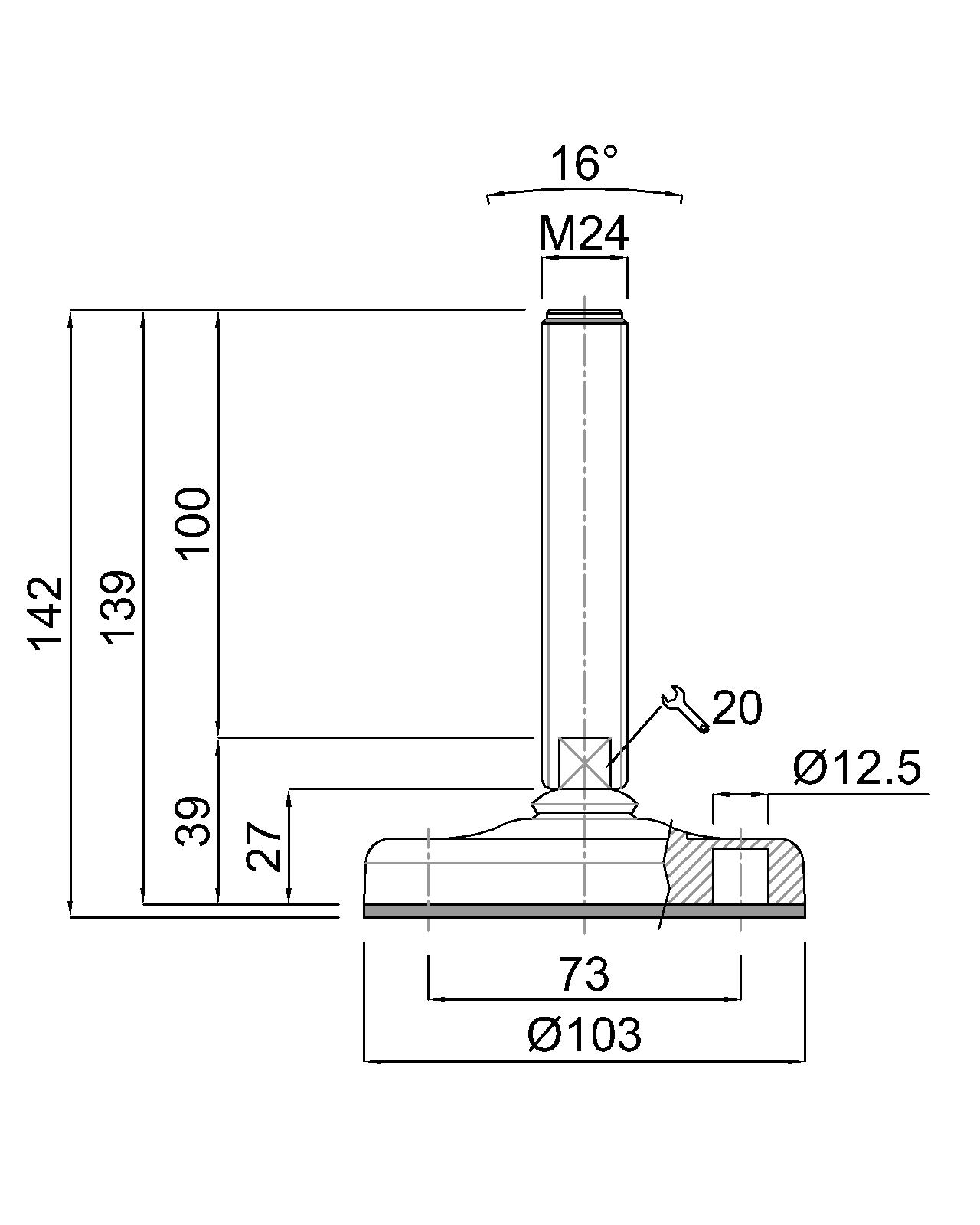

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
