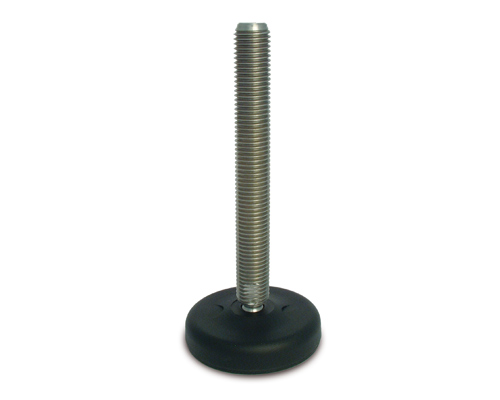

Levelling foot ECO30 PA, Ø 123 mm, M16 x 200 mm Stainless steel, Drills

EAN 4061408097845

Type 45818158

Discover the ECO30 Levelling Foot, featuring a durable polyamide base and stainless steel spindle. With a static load capacity of 18,000 N and adjustable 30° angled support, it ensures optimal stability for your machinery.

Durable polyamide base with a diameter of 123 mm for robust support and stability
Stainless steel spindle (M16 x 200 mm) offers superior strength and corrosion resistance
Articulated screw design with a 30° adjustment angle to accommodate uneven surfaces
Static load capacity of 18,000 N ensures reliability under heavy loads
Two bore holes (Ø 12.5 mm) facilitate secure ground attachment for enhanced stability

Quantity	Price
From 1	€9.25*
From 5	€8.27*
From 15	€7.38*
From 50	€7.23*

*Prices excl. VAT plus shipping costs

Currently sold out, Refill time: 5 days

€9.25* / piece

Our payment methods:

Accessories

Plastic levelling foot height extension Ø 123

Type No.: 458PROLD123

From €5.03*

Product properties

Footplate material:	Plastic
Anti-slip:	No
Ø range base plate (mm):	111-130
Ground fastening:	2 mounting holes
Vibration damping:	no
Material spindle:	Stainless steel
Ø spindle (mm):	16
Spindle length (mm):	200
Balancing angle:	30°
Hygiene:	No

Product description

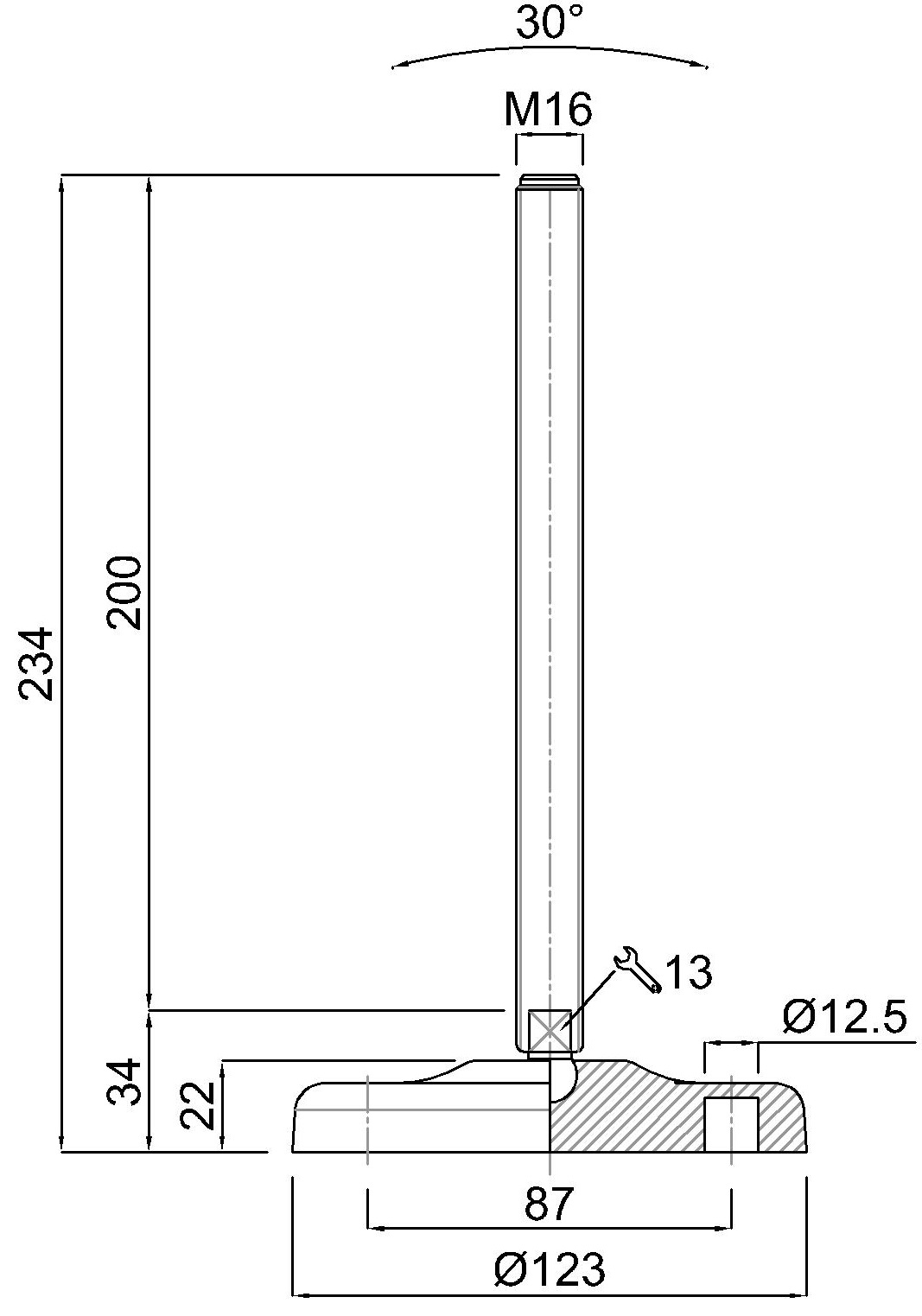

Levelling foot ECO30 Polyamide, Ø 123 mm, M16 x 200 mm, Stainlees steel, Total height 234 mm, Articulated screw 30°, Bore holes Ø 12,5 mm, Static load 18.000 N

Custom solutions

We develop customised components exactly as you need them for your application.

Learn more about custom solutions Contact us

Technical documentation

In this section you will find all relevant documents & links for your documentation::

Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
