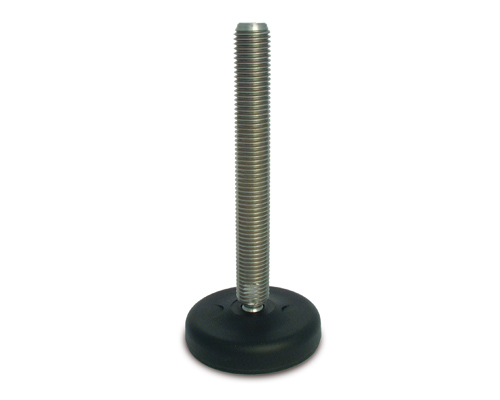

Levelling foot ECO30 PA, Ø 83 mm, M16 x 150 mm Stainless steel, Drills
The ECO30 levelling foot features a durable polyamide base with a Ø 83 mm footprint and stainless steel spindle, ensuring stability with a static load capacity of 16,000 N. Ideal for precise leveling in demanding applications.
| Quantity | Price |
|---|---|
| From 1 |
€7.11*
|
| From 5 |
€6.35*
|
| From 15 |
€5.67*
|
| From 50 |
€5.56*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Plastic |
| Anti-slip: | No |
| Ø range base plate (mm): | 71-90 |
| Ground fastening: | 2 mounting holes |
| Vibration damping: | no |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 16 |
| Spindle length (mm): | 150 |
| Balancing angle: | 30° |
| Hygiene: | No |
Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
