Levelling foot PA, Ø 103 mm, M24 x 250 mm Stainless steel, Drills, NBR
Enhance stability and precision with our stainless steel levelling foot, featuring a 103 mm polyamide base and 30° adjustable screw. Capable of supporting static loads up to 25,000 N, it ensures secure footing even in demanding applications.
| Quantity | Price |
|---|---|
| From 1 |
€26.70*
|
| From 5 |
€23.86*
|
| From 15 |
€21.30*
|
| From 50 |
€20.87*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Plastic |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 91-110 |
| Ground fastening: | 2 mounting holes |
| Vibration damping: | no |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 24 |
| Spindle length (mm): | 250 |
| Balancing angle: | 30° |
| Hygiene: | No |

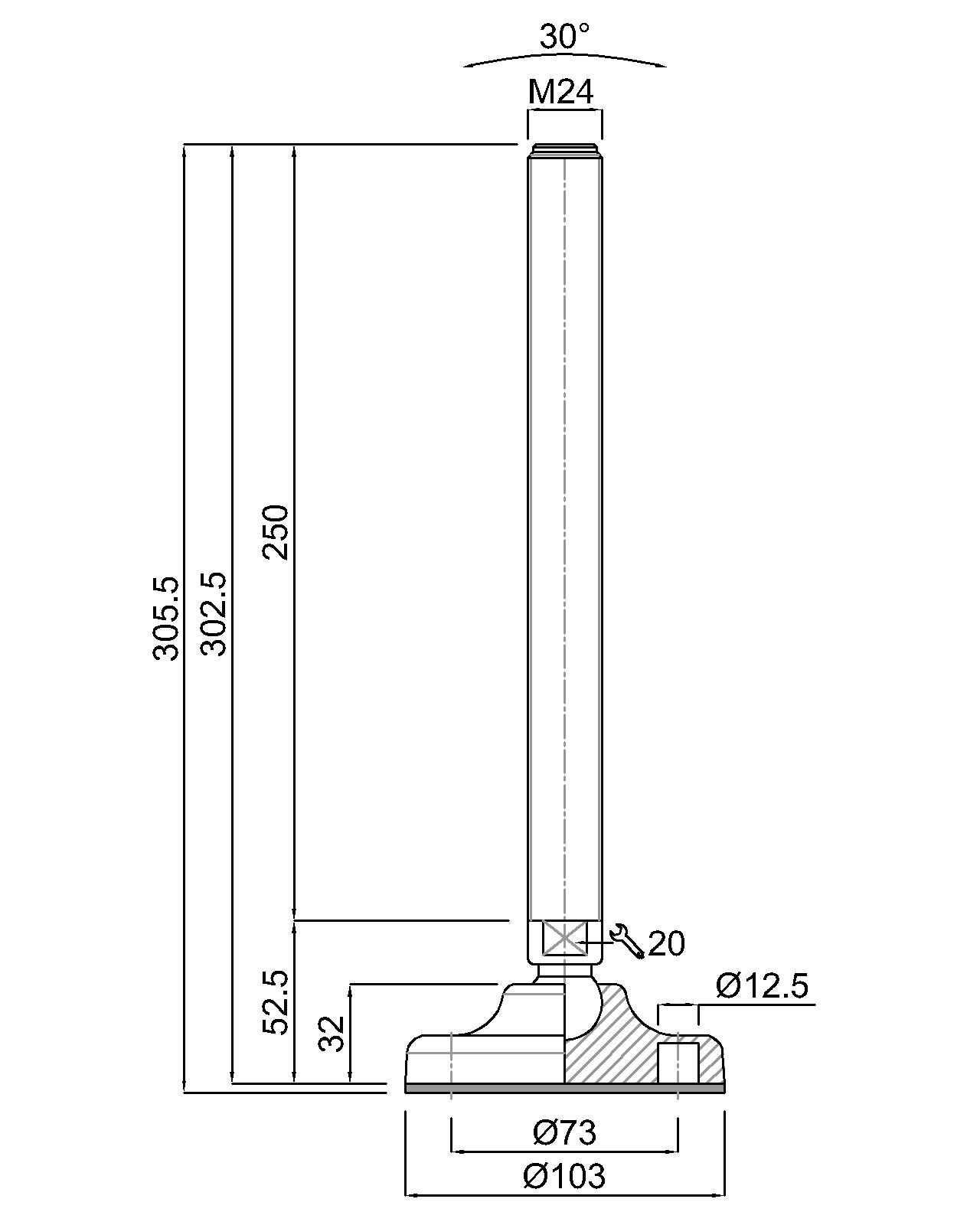

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
